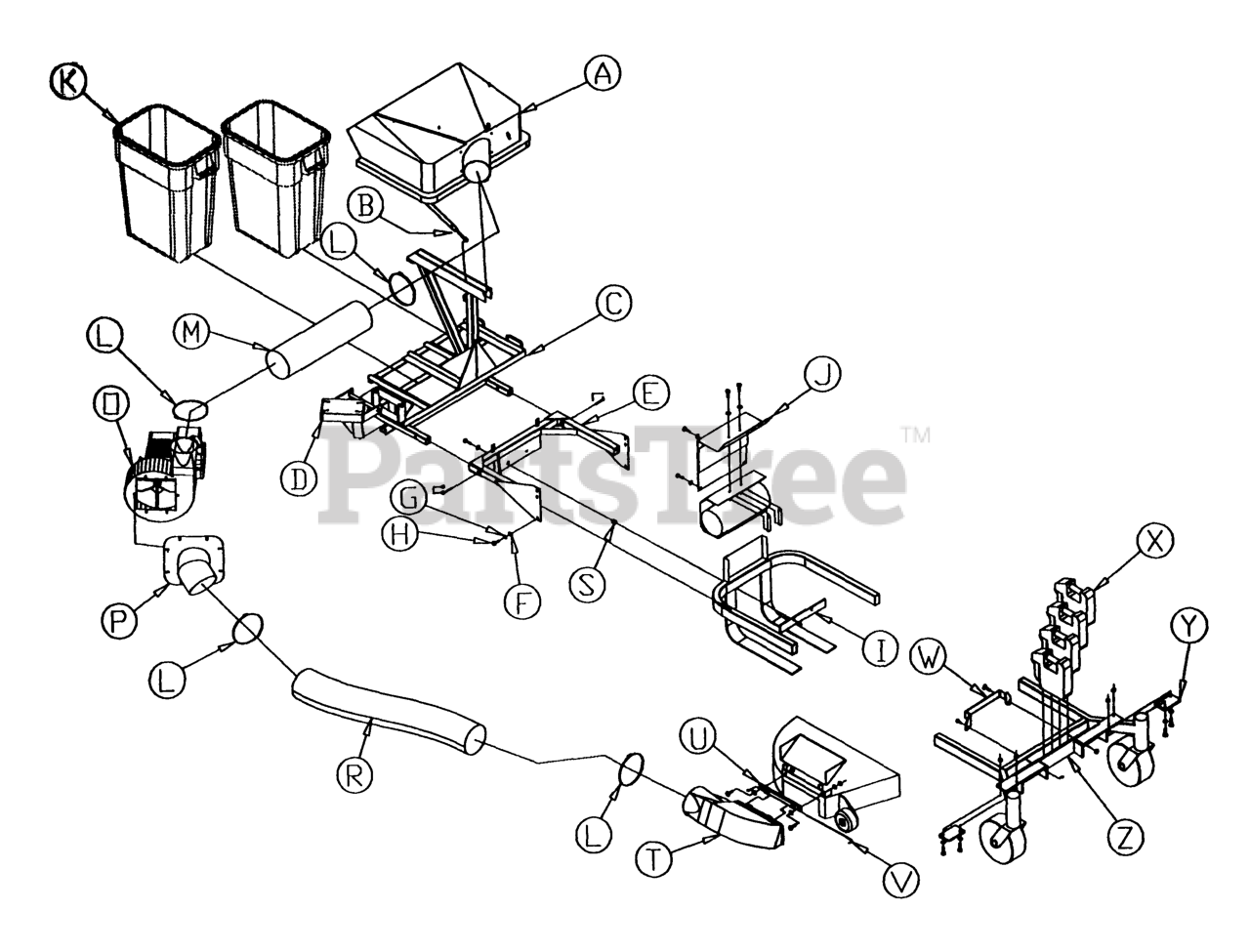

V811Z - Exmark Tow-Behind Lazer Vac by Bluebird, 8hp Briggs & Stratton Complete Assembly Parts Diagram

Tow-Behind Lazer Vac by Bluebird, 8hp Briggs & Stratton

Complete Assembly Parts Diagram

  • Title

O

Exmark 30185

Vacuum Assembly

Note: Including the following items:

$

$

Currently unavailable

Exmark 57005

Engine, 8 Hp Briggs & Stratton Industrial Plus

Note: Assembled

$

$

Currently unavailable

Exmark 97014

Blower Housing

Note: Assembled

$

$

Currently unavailable

Exmark 99606

Spacer, 1/2" X 3/4" X 5/8"

Note: Assembled

$

$

Currently unavailable

Exmark 99021

Bolt, Hex 3/8"-16 X 1-1/2"

Note: Assembled

$

$

Currently unavailable

Exmark 99633

Washer, External Star 3/8"

Note: Assembled

$

$

Currently unavailable

Exmark 94124

Decal, General Cautions

Note: Assembled

$

$

Currently unavailable

Exmark 94082

Decal, Hot Surfaces

Note: Assembled

$

$

Currently unavailable

Exmark 99128

Serial Tag

Note: Assembled

$

$

Currently unavailable

Exmark 99137

Decal, Made In Usa

Note: Assembled

$

$

Currently unavailable

Exmark 92530

Impeller, Lazer Vac

Note: Assembled

$

$

Currently unavailable

Exmark 99044

Square Key, 1/4" X 1/4" X 2-1/2"

Note: Assembled

$

$

Currently unavailable

Exmark 99027

Set Screw, 3/8"-24 X 3/8"

Note: Assembled

$

$

Currently unavailable

Exmark 99617

Washer, Flat 1/2" Id X 1-1/2" Od

Note: Assembled

$

$

Currently unavailable

Exmark 99037

Washer, Lock 1/2"

Note: Assembled

$

$

Currently unavailable

Exmark 99066

Bolt, Hex 7/16"-20 X 1-1/2"

Note: Assembled

$

$

Currently unavailable

Exmark 94186

Manual/Hardware Package

Note: Including the following items:

$

$

Currently unavailable

Exmark 94253

Small Parts Package

Note: Including the following items:

$

$

Currently unavailable

Exmark 99017

Bolt, Hex 5/16"-18 X 2"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99072

Nut, Nylon 1/4"-20

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99074

Washer, Flat 1/4"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99079

Nut, Nylon 5/16"-18

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 98504

Engine Manual

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 92662

Frame/Top Assembly

Note: Assembled; Including the following items:

$

$

Currently unavailable

A

Exmark 92660

Top Assembly

Note: Including the following items:

$

$

Currently unavailable

Exmark 92534

Molded Top, Grey Exmark

Note: Assembled

$

$

Currently unavailable

Exmark 92701

Top Insert

Note: Assembled

$

$

Currently unavailable

Exmark 92535

Top Inlet, 7" X 45 Degree

Note: Assembled

$

$

Currently unavailable

Exmark 99006

Bolt, Hex 1/4"-20 X 5/8"

Note: Assembled

$

$

Currently unavailable

Exmark 99074

Washer, Flat 1/4"

Note: Assembled

$

$

Currently unavailable

Exmark 99072

Nut, Nylon Lock 1/4"-20

Note: Assembled

$

$

Currently unavailable

Exmark 92702

Latch

Note: Assembled

$

$

Currently unavailable

Exmark 99653

Bolt, Hex 1/4"-20 X 2"

Note: Assembled

$

$

Currently unavailable

Exmark 99072

Nut, Nylon Lock 1/4"-20

Note: Assembled

$

$

Currently unavailable

B

Exmark 92704

Gas Spring

$

$

Currently unavailable

Exmark 99104

Threaded Stud

Note: Assembled

$

$

Currently unavailable

Exmark 99004

Nut, Whizlock 5/16"-18

Note: Assembled

$

$

Currently unavailable

C

Exmark 92700

Frame, Lazer Vac

$

$

Currently unavailable

Exmark 99024

Bolt, Hex 3/8"-16 X 3"

Note: Assembled

$

$

Currently unavailable

Exmark 99065

Nut, Nylon Lock 3/8"-16

Note: Assembled

$

$

Currently unavailable

Exmark 99015

Bolt, Hex 5/16"-18 X 1-1/2"

Note: Assembled

$

$

Currently unavailable

Exmark 99079

Nut, Nylon Lock 5/16"-18

Note: Assembled

$

$

Currently unavailable

Exmark 99128

Decal, Serial Tag For Frame/Top Assembly

Note: Assembled

$

$

Currently unavailable

Exmark 99131

Decal, Clear Laminate For Serial Tag

Note: Assembled

$

$

Currently unavailable

K

Exmark 93817

Container, 30 Gallon, Green

$

$

Currently unavailable

M

Exmark S7136

Hose, 7" X 36", Black

$

$

Currently unavailable

R

Exmark 97154

Hose, 7" X 54", Black

$

$

Currently unavailable

E

Exmark 92716

Hitch, Base Lazer Vac

$

$

Currently unavailable

D

Exmark 92512

Engine Mount

$

$

Currently unavailable

J

Exmark 92517

Muffler Shield

$

$

Currently unavailable

T

Exmark 80562

Boot, Exmark 52"/60", 7" Neck

Note: (QR Bracket included)

$

$

Currently unavailable

Exmark 94175

Small Parts Box

Note: Assembled; Including the following items:

$

$

Currently unavailable

Exmark 98559

Operator's Manual, Lazer Vac

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 94208

Small Parts Package

Note: Shipped in Small Parts Box/Pkg.; Including the following items:

$

$

Currently unavailable

Exmark 99006

Bolt, Hex 1/4"-20 X 5/8"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99019

Bolt, Hex 3/8"-16 X 1"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

H

Exmark 99020

Bolt, Hex 3/8"-16 X 1-1/4"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99031

Bolt, Hex 1/2"-13 X 1-1/2"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99034

Nut, Hex 1/2"-13

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99037

Washer, Lock 1/2"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

F

Exmark 99058

Washer, Flat 3/8"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99065

Nut, Nylon 3/8"-16

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99072

Nut, Nylon 1/4"-20

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99074

Washer, Flat 1/4"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99080

Washer, Split Lock 1/4"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99611

Bolt, Hex 3/8"-16 X 2-1/2"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

G

Exmark 99691

Washer, Spring Disc 3/8"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 94326

Small Parts Package, Lazer Vac Boot

Note: Shipped in Small Parts Box/Pkg.; Including the following items:

$

$

Currently unavailable

Exmark 99077

Bolt, Hex 5/16"-18 X 1"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99046

Washer, Flat 5/16"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99079

Nut, Nylon 5/16"-18

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99082

Pin, Cotter Hair #13, 5/64" X 1-3/32"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 94328

Small Parts Package, Lazer Vac Weight Kit

Note: Shipped in Small Parts Box/Pkg.; Including the following items:

$

$

Currently unavailable

Exmark 99025

Bolt, Hex 3/8"-16 X 3-3/4"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99030

Washer, Split Lock 3/8"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99065

Nut, Nylon 3/8"-16

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99019

Bolt, Hex 3/8"-16 X 1"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99668

Pin, Clevis 3/8" X 1"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99082

Pin, Cotter Hair #13, 5/64" X 1-3/32"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

U

Exmark 82562

Qr Boot Bracket, 80562 Boot

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

S

Exmark 93415

Spacer, Idler Bracket

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

L

Exmark 97076

Clamp, Hose 7"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 93961

Ear Plugs

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Exmark 99693

Pin, Wire Lock, 3/8" X 2-1/2"

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

V

Exmark 93814

Rod, Quick-Release Boot

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

I

Exmark 92513

Hitch Plate, Lazer Vac

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

Y

Exmark 92519

Front Weight Clamp Plate

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

W

Exmark 92532

Front Weight Hold-Down Bar

Note: Shipped in Small Parts Box/Pkg.

$

$

Currently unavailable

P

Exmark 92533

Inlet Cover

$

$

Currently unavailable

Z

Exmark 92527

Front Weight Bar

$

$

Currently unavailable

X

Exmark 92531

Front Weight

$

$

Currently unavailable
