VB (990130) - Simplicity Two-Wheeled Tractor, 7hp Transmission Group (3585I07) Parts Diagram

Two-Wheeled Tractor, 7hp

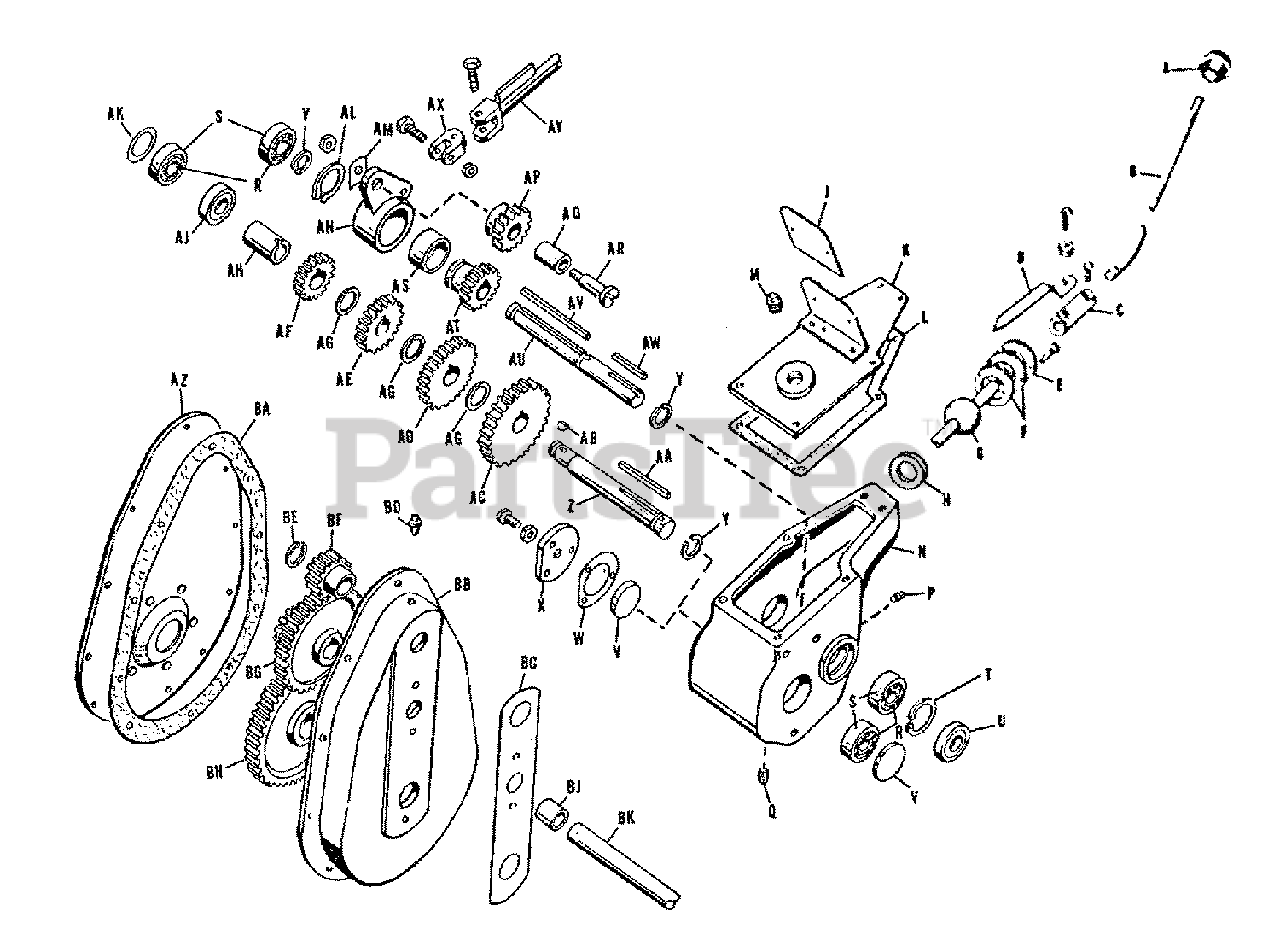

Transmission Group (3585I07) Parts Diagram

  • Title

A

Simplicity 1676743SM

BALL, Shift Lever

$19.99

$

Usually ships in 2-12 days

0

B

Simplicity 8061029

EXTENSION, Gear Shift Handle

$

$

Not available

C

Simplicity 8061030

COUPLING, Gear Shift Handle

$

$

Not available

D

Simplicity 8061075

POINTER, Shifter

$

$

Not available

E

Simplicity 8051047

RETAINER, Gear Shift Ball

$

$

Not available

F

Simplicity 8051053

SPACER, Shift Ball

$

$

Not available

G

Simplicity 8051044

BALL, Gear Shift

$

$

Not available

H

Simplicity 8051060

WASHER, Shift Ball

$

$

Not available

J

Simplicity 152030

PLATE, Serial and Shift Instruction

$

$

Not available

K

Simplicity 152015

COVER ASSEMBLY, Transmission Gear Case

$

$

Not available

L

Simplicity 8062008

GASKET, Transmission Gear Case Cover

$

$

Not available

M

Simplicity 8061045

PLUG, Filler

$

$

Not available

N

Simplicity 8063001

CASE, Transmission Gear

$

$

Not available

P

Simplicity 726001

PLUG, Pipe, 1/8 Standard Square Head

$

$

Not available

Q

Simplicity 2726002

PLUG, Pipe, 1/4 Standard Square Head

$

$

Not available

R

Simplicity 8061094

CONE, Roller Bearing

$

$

Not available

S

Simplicity 8061095

CUP, Roller Bearing

$

$

Not available

T

Simplicity 8061052

RING, Retaining

$

$

Not available

U

Simplicity 8061033

SEAL, Oil

$

$

Not available

V

Simplicity 8061013

PLATE, Transmission Bearing Take-Up

$

$

Not available

W

Simplicity 8061018

GASKET, Adjusting Plate

$

$

Not available

X

Simplicity 8061017

PLATE, Transmission Bearing Take-Up

$

$

Not available

Y

Simplicity 8061049

RING, Retaining

$

$

Not available

Z

Simplicity 8061006

SHAFT, Tranmission Pinion

$

$

Not available

AA

Simplicity 8061083

KEY, Transmission Pinion Shaft

$

$

Not available

AB

Simplicity 2725002

KEY, Woodruff 5/32 x 5/8

$

$

Not available

AC

Simplicity 8061010

GEAR, "Reverse"

$

$

Not available

AD

Simplicity 8061009

GEAR, "Low"

$

$

Not available

AE

Simplicity 8061008

GEAR, "Medium"

$

$

Not available

AF

Simplicity 8061067

GEAR, "High"

$

$

Not available

AG

Simplicity 1729259SM

SPACER, Transmission Gear

$5.99

$

In Stock, Qty 11

0

AH

Simplicity 8061011

SPACER, Transmission Pinion Shaft

$

$

Not available

AJ

Simplicity 8061118

SEAL, Oil

$

$

Not available

AK

Simplicity 152018

*SHIM, Transmission Bearing Cup

$

$

Not available

AK

Simplicity 8061014

*SHIM, Transmission Bearing Cup

$

$

Not available

AL

Simplicity 8061106

RING, Retaining

$

$

Not available

AM

Simplicity 8061119

PLATE, Lock

$

$

Not available

AN

Simplicity 8061001

ARM, Transmission Rocker w/Bearing

$

$

Not available

AP

Simplicity 8061003

PINION, Rocker Arm with Bearing

$

$

Not available

AQ

Simplicity 2156064SM

BEARING

$22.99

$

Usually ships in 2-12 days

0

AR

Simplicity 8061005

PIN, Rocker Arm Pinion

$

$

Not available

AS

Simplicity 8061002

BEARING, Rocker Arm

$

$

Not available

AT

Simplicity 8061016

GEAR, Transmission Slide

$

$

Not available

AU

Simplicity 8061015

SHAFT, Transmission Pulley

$

$

Not available

AV

Simplicity 8061082

KEY, Transmission Pulley Shaft

$

$

Not available

AW

Simplicity 2805850SM

KEY, Transmission Pulley

$2.49

$

Usually ships in 2-12 days

0

AX

Simplicity 8061026

PITMAN, Gear Shift

$

$

Not available

AY

Simplicity 8061501

CLEVIS ASSEMBLY, Pitman

$

$

Not available

AZ

Simplicity 152019

COVER ASSEMBLY, Gear Case

$

$

Not available

BA

Simplicity 8063004

GASKET, Gear Case Cover

$

$

Not available

BB

Simplicity 8063002

CASE, Gear

$

$

Not available

BC

Simplicity 8062009

GASKET, Gear Case

$

$

Not available

BD

Simplicity 2727002

FITTING, Grease, Alemite #1641

$

$

Not available

BE

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

BF

Simplicity 8061020

PINION, Reduction

$

$

Not available

BG

Simplicity 8062503

GEAR ASSEMBLY, Cluster

$

$

Not available

BH

Simplicity 152021

GEAR, Drive

$

$

Not available

BJ

Simplicity 8061022

BEARING, Intermediate Pinion

$

$

Not available

BK

Simplicity 152027

SHAFT, Intermediate

$

$

Not available
