VFS 250 (UT-06067) - Homelite Concrete Vibrator, Electric Motor & Electrical Parts Diagram

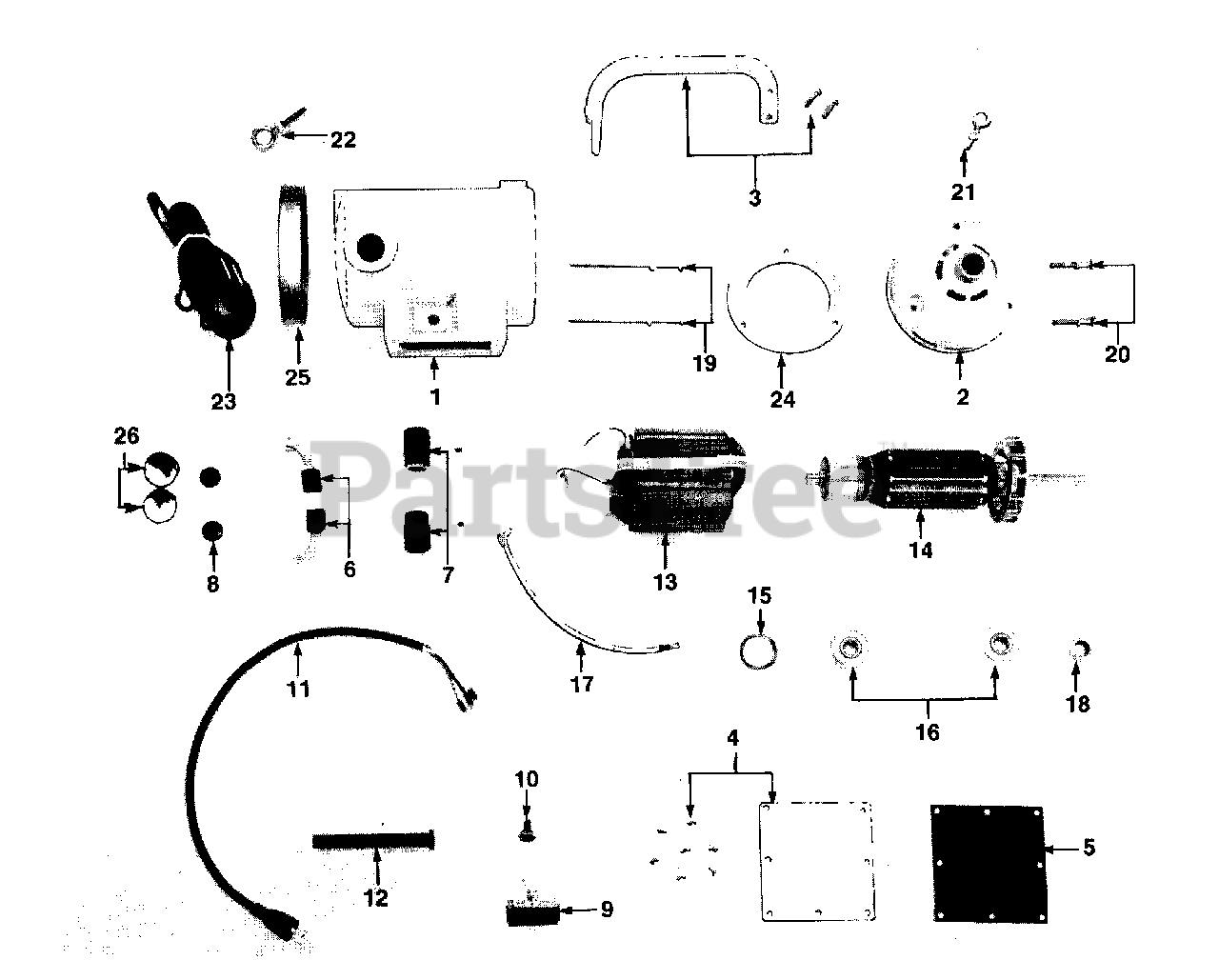

Concrete Vibrator, Electric

Motor & Electrical Parts Diagram

  • Title
1

Homelite 0262402

HOUSING- Motor

$

$

Currently unavailable

2

Homelite 0262403

END BELL- w/grease seal

$

$

Currently unavailable

3

Homelite 0262404

HANDLE- Motor

$

$

Currently unavailable

4

Homelite 0262405

PLATE- Base cover (w/screws)

$

$

Currently unavailable

5

Homelite 0262406

GASKET- Cover plate

$

$

Currently unavailable

6

Homelite 0262407

BRUSH- Motor

$

$

Currently unavailable

7

Homelite 0262408

HOLDER- Brush

$

$

Currently unavailable

8

Homelite 0262409

CAP- Brush holder

$

$

Currently unavailable

9

Homelite 0262410

SWITCH- Electric

$

$

Currently unavailable

10

Homelite 0262411

BOOT-Rubber switch

$

$

Currently unavailable

11

Homelite 0262412

CORD- Switch

$

$

Currently unavailable

12

Homelite 0262413

PROTECTOR- Rubber

$

$

Currently unavailable

13

Homelite 0262414

COIL- Field

$

$

Currently unavailable

14

Homelite 0262415

ARMATURE- w/fan

$

$

Currently unavailable

15

Homelite 0262416

SPRING- Rear bearing thrust

$

$

Currently unavailable

16

Homelite 0262417

BEARING- Motor (2 required)

$

$

Currently unavailable

17

Homelite 0262418

LEAD- Brush

$

$

Currently unavailable

18

Homelite 0262419

SEAL- Grease

$

$

Currently unavailable

19

Homelite 0262420

BOLT- Field coil (10-24 x 4 3/4") (2 required)

$

$

Currently unavailable

20

Homelite 82387

BOLT- End bell (1/4-20 x 13/4") (2 required)

$

$

Not available

21

Homelite 0262421

EYEBOLT- w/nut (2 required)

$

$

Currently unavailable

22

Homelite 0262422

EYEBOLT- Carrying strap

$

$

Currently unavailable

23

Homelite 0262423

STRAP- Carrying

$

$

Currently unavailable

24

Homelite 0262424

BAFFLE- Vent

$

$

Currently unavailable

25

Homelite 0262487

COVER- Rear motor

$

$

Currently unavailable

26

Homelite 0262488

CAP- Metal

$

$

Currently unavailable

Homelite 0262481

DECAL- Plate ident. (not shown)

$

$

Currently unavailable
