VH16KA362 - Exmark 36" Viking Hydro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011)

36" Viking Hydro Walk-Behind Mower, 16HP Kawasaki

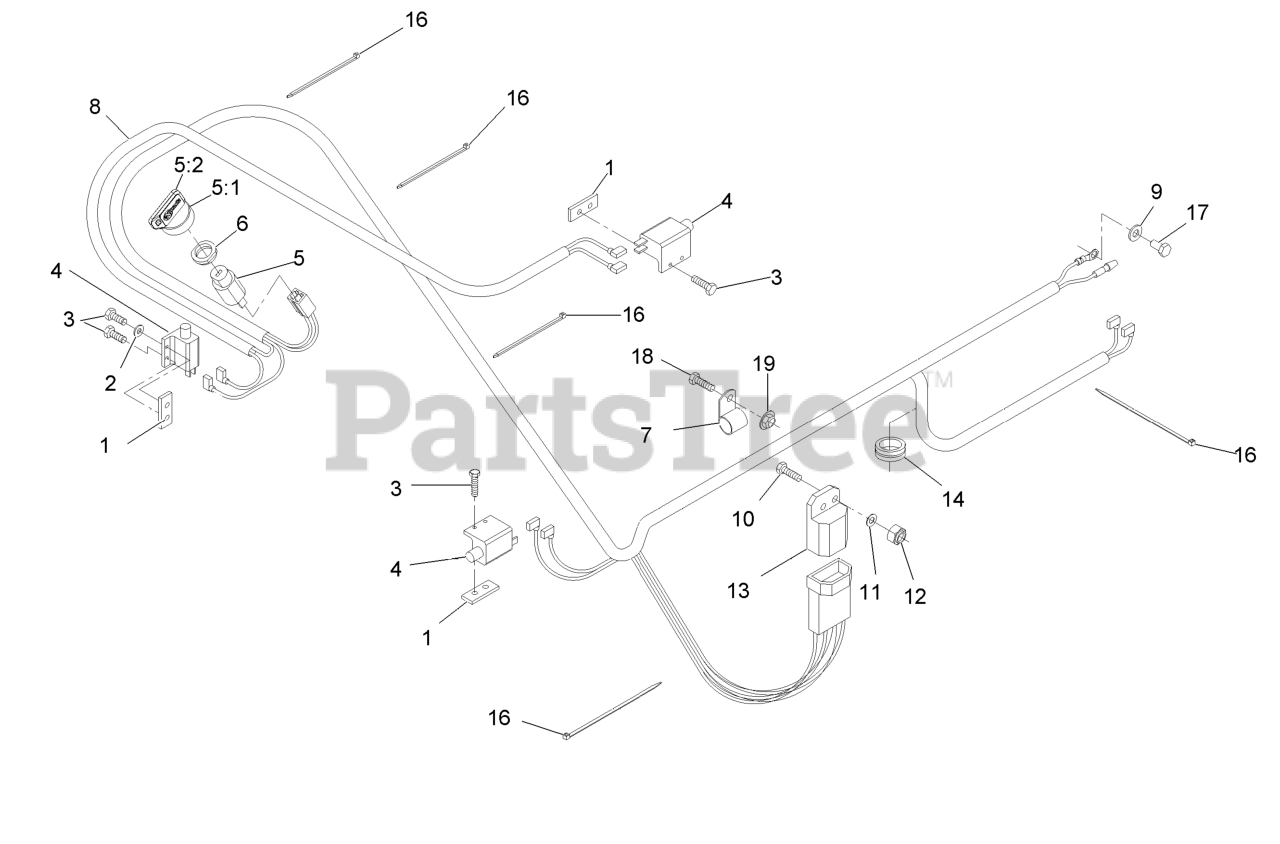

VH16KA362 - Exmark 36" Viking Hydro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011) > Parts Diagrams (8) > Electrical Assembly

  • Title
1-633181

1

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

3256-14

2

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3290-500

3

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-513051

4

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-403121

5

Switch-Key

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-603511

5:1

Key-Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-2106

5:2

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-0498

6

Nut-Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-603727

7

Clip-Loom

Part# 1-603727

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

103-2007

8

Harness-Wiring

Part# 103-2007

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $111.84

33094-00

9

Washer

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.13

321-4

10

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3256-22

11

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3296-42

12

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-323430

13

Module-Interlock

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $95.36

1-543296

14

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

1-303287

16

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

33114-016

17

Screw-Hh M8-1.25 X 16mm

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

321-3

18

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

32128-33

19

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62
