VH16KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011)

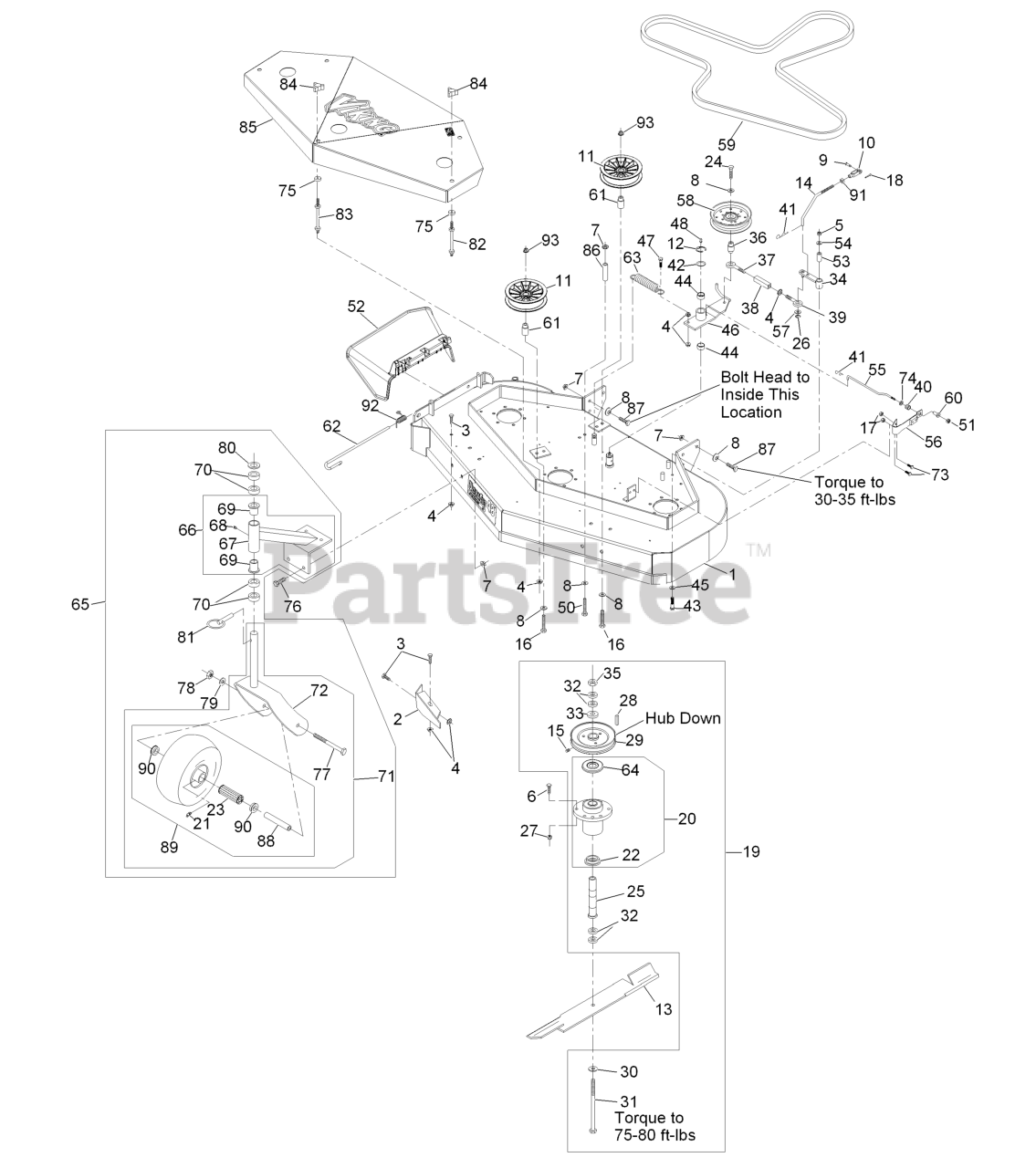

48" Viking Hydro Walk-Behind Mower, 16HP Kawasaki

VH16KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, 16HP Kawasaki (SN: 920000 - 999999) (2011) > Parts Diagrams (8) > Mower Deck Assembly

  • Title
1-404257

1

Deck (116-0617-01) W/Decals, Dogleg, & Discharge Deflector

Part# 1-404257

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1766.11

1-402107-01

2

Baffle-Dogleg

Part# 1-402107-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.31

322-2

3

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

32128-20

4

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

3296-29

5

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

323-7

6

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3290-357

7

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

98-5975

8

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-808280

9

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303105

10

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

109-0977

11

Pulley,Idler 5"

Part# 109-0977

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.42

32151-103

12

E-Ring

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-6583

13

Blade, Notched

Part# 103-6583 (Superseded to 103-6583-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

103-6581

13

Blade, Mulching

Part# 103-6581 (Superseded to 103-6581-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-6738

13

Blade, Low Lift

Part# 103-6738 (Superseded to 103-6738-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

103-1577

13

Blade, Solid

Part# 103-1577 (Superseded to 103-1577-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.70

103-6336

13

Blade, Extreme

Part# 103-6336 (Superseded to 116-5178-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

1-323174

14

Arm-Linkage, Assist

Part# 1-323174

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.00

1-803310

15

Setscrew-5/16-18 X 3/8

Part# 1-803310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

3246-18

15

Setscrew-5/16-18 X 3/8

Part# 3246-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

323-13

16

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

3296-42

17

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

3272-5

18

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-8387

19

Asm, Cutter Housing Complete

Part# 103-8387

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $369.18

103-8280

20

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

302-61

21

Zerk-45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-2535

22

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.21

1-513809

23

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

702809

24

Screw-Hh

Part# 702809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-323529

25

Tube-Spindle, Short

Part# 1-323529

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.01

32120-35

26

E-Ring

Part# 32120-35

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

3296-39

27

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-807267

28

Key-Machine 1/4 X 3/16 X 1 1/4

Part# 1-807267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-403183

29

Sheave

Part# 1-403183

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.65

1-513208

30

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-800861

31

Screw-Cap, Hh

Part# 1-800861

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.55

1-323539

32

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.00

1-323339

33

Washer

Part# 1-323339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-322235

34

Arm-Assist

Part# 1-322235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.53

3219-6

35

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

1-303434

36

Bushing-Engagement

Part# 1-303434

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.17

1-303348

37

Eyebolt-Thread, Lh

Part# 1-303348

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303236

38

Body-Turnbuckle

Part# 1-303236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.41

1-303238

39

Eyebolt-Thread, Rh

Part# 1-303238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-323747

40

Spring-Compression

Part# 1-323747

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-806003

41

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

1-303352

42

Washer-Spindle

Part# 1-303352

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

322-10

43

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

1-323729

44

Sleeve-Bearing

Part# 1-323729

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-303334

45

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-3600

46

Idler Arm Asm

Part# 103-3600

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $88.89

116-3515

47

Screw,Hh Special 5/16-18 X 1.25

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

302-19

48

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

323-20

50

Screw-Hh 3/8-16 X 3-1/4

Part# 323-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.62

3296-56

51

Nut-Nyloc 1/4-20 Thin

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

109-5151

52

Deflector-Discharge

Part# 109-5151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

1-403179

53

Tube-Pivot

Part# 1-403179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.41

3256-3

54

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

1-323714

55

Rod-Brake

Part# 1-323714

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.00

1-324372

56

Pad And Spring Asm

Part# 1-324372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.08

3256-23

57

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

116-3626

58

Pulley-Idler

Part# 116-3626 (Superseded to 132-4718)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-403174

59

Belt, Drive (Main Deck)

Part# 1-403174

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $58.75

1-323746

60

Spacer-Flanged

Part# 1-323746

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-413113

61

Bushing-Idler

Part# 1-413113

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

109-8854

62

Pin-Chute

Part# 109-8854

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-323071

63

Spring-Extension

Part# 1-323071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

103-1330

64

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-2281

65

Asm, Caster/Mnt Complete, Weighted

Part# 103-2281 (Superseded to 116-8245)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $492.15

103-2296

66

Asm, Caster Wheel Support W/Bearings, Weighted

Part# 103-2296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $197.79

103-2297-01

67

Wld, Caster Wheel Support, Weighted

Part# 103-2297-01 (Superseded to 103-2296)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $197.79

302-52

68

Zerk-1/8-27 Str

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

1-303514

69

Bearing-Flanged

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-303314

70

Spacer-Caster

Part# 1-303314

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

103-1236

71

Asm, Caster Wheel Assembly

Part# 103-1236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $138.92

1-322145-01

72

Fork

Part# 1-322145-01 (Superseded to 116-7942-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.54

321-4

73

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-323748

74

Ring-Push On

Part# 1-323748

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-323417

75

Washer-Belt Shield

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

323-4

76

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.95

325-20

77

Screw-Hh 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

3217-9

78

Nut-Hex 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3253-7

79

Washer-Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-513338

80

Washer

Part# 1-513338

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

1-809020

81

Pin

Part# 1-809020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

1-303537

82

Stud-Shield, Belt (Short)

Part# 1-303537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303536

83

Stud-Shield, Belt (Long)

Part# 1-303536

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

1-323385

84

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

116-2703

85

Shield (1-402100-01)W/Decals

Part# 116-2703

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $334.37

1-403188

86

Spacer

Part# 1-403188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.20

323-6

87

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

1-513547

88

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-2171

89

Kit, Tire & Wheel Asm W/ Spacer

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513810

90

Bushing-Flanged

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3219-2

91

Nut-Hex 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

116-0962

92

Spring, Torsion

Part# 116-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

104-8301

93

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89
