VH3615KC - Exmark 36" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 130000 - 149999) (1997) Upper Handles And Controls Parts Diagram

36" Viking Hydro Walk-Behind Mower, 15hp Kohler

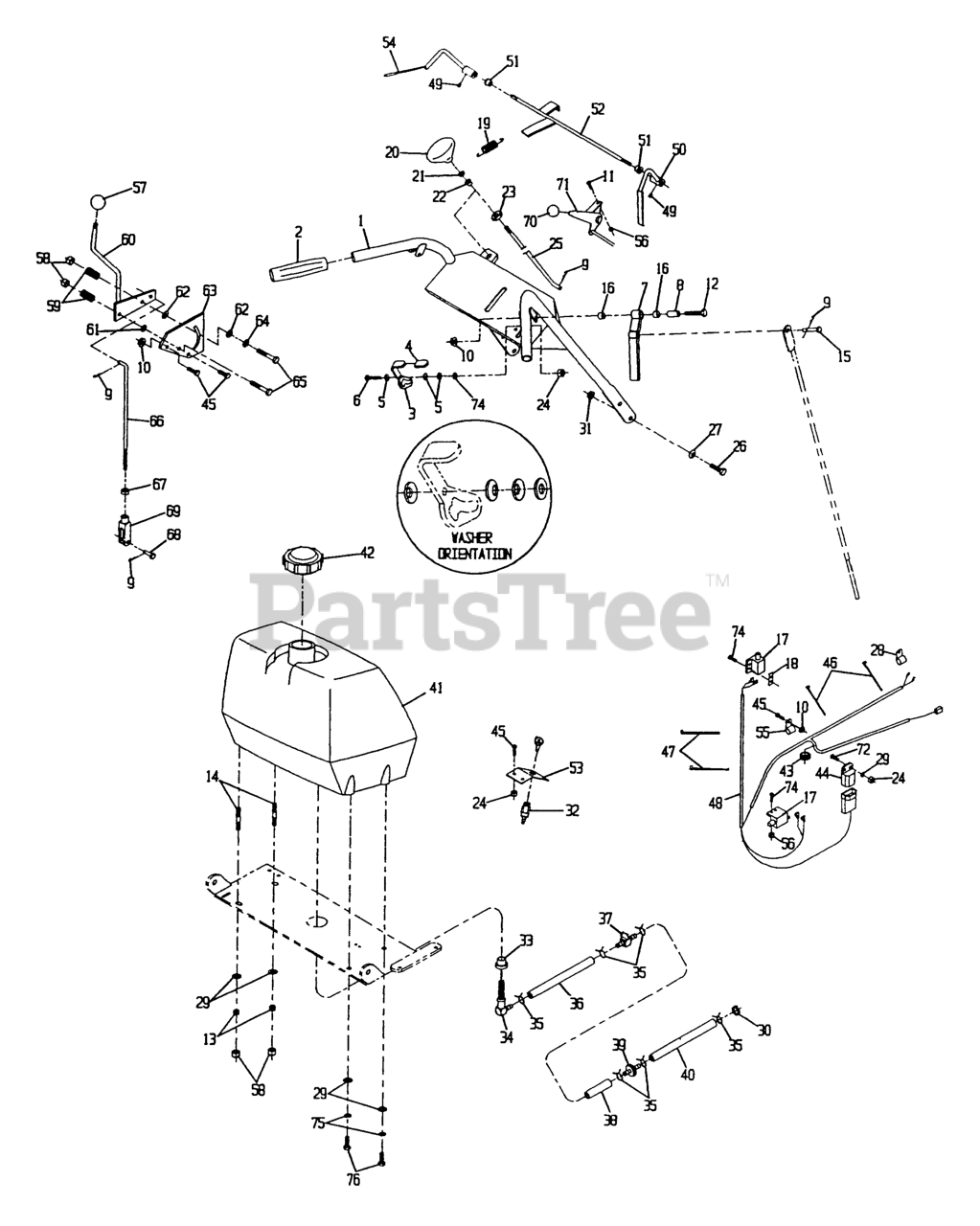

Upper Handles And Controls Parts Diagram

  • Title

1

Exmark 1-322197

103-0212
(Superseded to 103-0212)

$1030.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-612168

137-9514
(Superseded to 137-9514)

$49.99

$

Usually ships in 3-6 days

0

Exmark 1-612167

137-9515
(Superseded to 137-9515)

Note: Not illustrated

$47.99

$

Usually ships in 3-6 days

0

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 1 left!

0

5

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

6

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-412159

103-0218
(Superseded to 103-0218)

Note: Not illustrated

$172.99

$

Usually ships in 3-6 days

0

7

Exmark 1-412161

103-0219
(Superseded to 103-0219)

$172.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603749

BUSHING-LEVER, DRIVE

$8.49

$

In Stock, Qty 5

0

9

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 9

0

11

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

12

Exmark 1-800256

321-9
(Superseded to 321-9)

$5.49

$

In Stock, Qty 20+

0

13

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 6

0

14

Exmark 1-633023

STUD

Note: Use Pro-lock, retaining type (P/N 840023) on inside bore of OPC hub and on fuel tank studs

$6.99

$

In Stock, only 2 left!

0

15

Exmark 1-613055

PIN-CLEVIS

$9.49

$

Usually ships in 3-6 days

0

16

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 12

0

17

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

18

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

19

Exmark 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 14

0

20

Exmark 1-323134

KNOB-PUSH / PULL

$30.99

$

In Stock, only 2 left!

0

21

Exmark 1-804751

3218-2
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 18

0

22

Exmark 1-323143

BEARING-NYLON

$6.99

$

In Stock, only 3 left!

0

23

Exmark 1-323142

NUT-PUSH

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 1-804255

3296-42
(Superseded to 3296-42)

Note: Kawasaki & Kohler

$0.99

$

In Stock, Qty 20+

0

Exmark 1-804255

3296-42
(Superseded to 3296-42)

Note: B&S

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323181

LINKAGE-BLADE

$133.99

$

Usually ships in 3-6 days

0

26

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-323229

CLIP-LOOM

Note: Kawasaki

$3.49

$

Usually ships in 3-6 days

0

29

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

30

Exmark 1-303308

CLAMP-HOSE

Note: Kawasaki

$

$

Not available

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

Note: B&S

$23.99

$

In Stock, only 2 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 20+

0

33

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

34

Exmark 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

35

Exmark 1-303077

CLAMP

Note: Kohler

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: B&S

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: Kawasaki

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-603955

HOSE-FUEL

Note: Kawasaki & Kohler

$5.99

$

Usually ships in 3-6 days

0

Exmark 1-543649

DISCONTINUED

Note: B&S

$

$

Not available

37

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

38

Exmark 1-603776

HOSE-LINE, FUEL

Note: Kawasaki & Kohler

$

$

Not available

Exmark 1-303471

LINE-FUEL

Note: B&S

$9.49

$

In Stock, only 2 left!

0

39

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 7

0

40

Exmark 1-603954

HOSE-LINE, FUEL

Note: Kohler

$10.99

$

Usually ships in 3-6 days

0

Exmark 1-303471

LINE-FUEL

Note: Kawasaki

$9.49

$

In Stock, only 2 left!

0

41

Exmark 1-413179

109-6930
(Superseded to 109-6930)

$

$

Not available

42

Exmark 1-513508

CAP-FUEL

$29.99

$

In Stock, Qty 19

0

43

Exmark 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

44

Exmark 1-323430

MODULE-INTERLOCK

$149.99

$

In Stock, only 4 left!

0

45

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: Kawasaki & Kohler

$1.49

$

In Stock, Qty 20+

0

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: B&S

$1.49

$

In Stock, Qty 20+

0

46

Exmark 1-303287

TIE-CABLE

Note: Kawasaki

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-303287

TIE-CABLE

Note: Kohler & Briggs

$1.49

$

Usually ships in 3-6 days

0

47

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0

48

Exmark 1-323518

WIRHRNS,VH36" 14HP KAW

Note: Kawasaki

$

$

Not available

Exmark 1-323519

WIRE HARNESS,KOHLER

Note: Kohler

$

$

Not available

Exmark 1-403147

DISCONTINUED

Note: B&S

$

$

Not available

49

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock, nut type (P/N 840022) on setscrew threads and on shifter knob threads

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-412185-03

LEVER-RH

Note: Use Pro-lock, retaining type (P/N 840023) on inside bore of OPC hub and on fuel tank studs

$89.99

$

In Stock, only 3 left!

0

51

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-322192-03

WLD,ROD OPC

$51.99

$

In Stock, only 2 left!

0

53

Exmark 1-403118-01

DISCONTINUED

Note: B&S

$

$

Not available

54

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-lock, retaining type (P/N 840023) on inside bore of OPC hub and on fuel tank studs

$85.99

$

In Stock, only 4 left!

0

55

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

56

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

57

Exmark 1-603175

KNOB-BALL

Note: Use Pro-lock, nut type (P/N 840022) on setscrew threads and on shifter knob threads

$12.99

$

In Stock, only 2 left!

0

58

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

59

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 9

0

60

Exmark 1-602733

106-2748
(Superseded to 106-2748)

$123.99

$

Usually ships in 3-6 days

0

61

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

62

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$3.49

$

In Stock, Qty 10

0

63

Exmark 1-603730

PLATE-LEVER, SHIFTER

$41.99

$

Usually ships in 3-6 days

0

64

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 3 left!

0

65

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

66

Exmark 1-323522

ROD-CONTROL, SPEED

$15.99

$

Usually ships in 3-6 days

0

67

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

68

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

69

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

70

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 18

0

71

Exmark 1-323129

CABLE,THROTTLE CONTROL

Note: Kawasaki & Kohler

$

$

Not available

Exmark 1-543697

1-633696
(Superseded to 1-633696)

Note: B&S

$66.99

$

In Stock, Qty 20+

0

72

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

73

Exmark 1-801040

DISCONTINUED

$

$

Not available

74

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

75

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

76

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

Usually ships in 3-6 days

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$22.99

$

In Stock, only 1 left!

0
