VH4815KA - Exmark 48" Viking Hydro Walk-Behind Mower, 15HP Kawasaki (SN: 260000 - 319999) (2001)

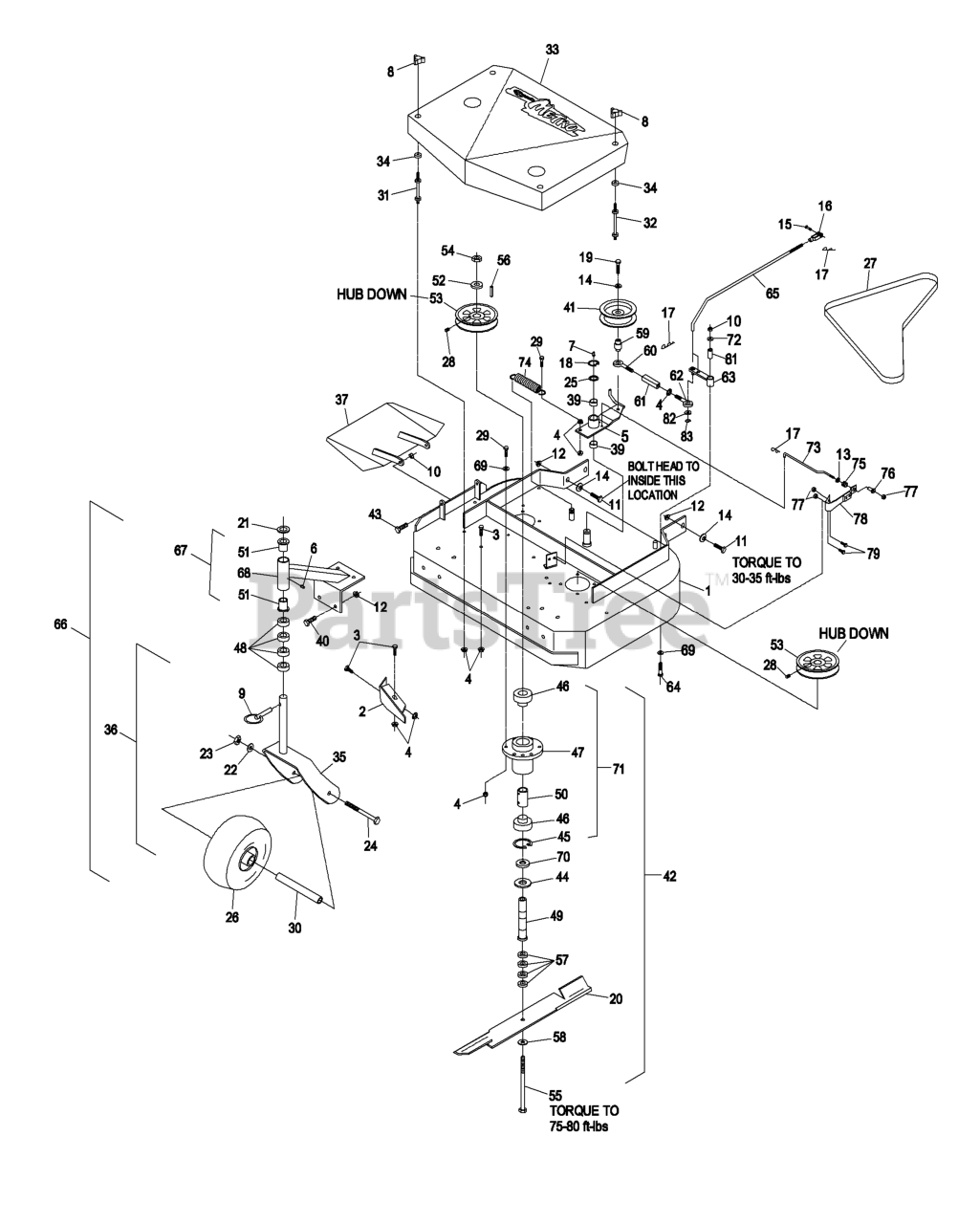

48" Viking Hydro Walk-Behind Mower, 15HP Kawasaki

VH4815KA - Exmark 48" Viking Hydro Walk-Behind Mower, 15HP Kawasaki (SN: 260000 - 319999) (2001) > Parts Diagrams (8) > 36" Mower Deck

  • Title
1-304267

1

Front Deck W/Decals & Dogleg

Part# 1-304267 (Superseded to 103-2312)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1770.82

1-302235-01

Deck Weldmt

Part# 1-302235-01

OEM Warranty Repair Part for Exmark

Currently unavailable

1-302189-01

2

Baffle Wldmnt, Dogleg

Part# 1-302189-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.13

322-2

3

Screw, 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

32128-20

4

5/16-18 Whizlock Nut

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-324408

5

Engagement Arm W/Bushing (36")

Part# 1-324408 (Superseded to 103-3600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $88.89

302-52

6

Grease Zerk, 1/8 Npt Straight

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

302-19

7

Grease Zerk, 1/4-28 Straight

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-323385

8

Knob, Belt Cover

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-809020

9

Quick Pin, 10" Caster

Part# 1-809020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

3296-29

10

5/16-18 Nyloc Hex Nut

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

323-6

11

3/8-16 X 1 Hh Capscrew

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3290-357

12

3/8-16 Whizlock Nut

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-323748

13

Ring, Push-On 7/16

Part# 1-323748

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

98-5975

14

3/8 Disc Spring Washer

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-808280

15

5/16 X 1 Clevis Pin

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303105

16

Yoke

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

1-806003

17

Cotter Hairpin

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

32151-103

18

E-Ring For .875 Rd

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

323-10

19

3/8-16 X 2 Capscrew

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-633482

20

Blade, Notched Air Foil (36")

Part# 1-633482 (Superseded to 103-6584-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

1-613251

Blade, Solid Air Foil (36")

Part# 1-613251 (Superseded to 103-1578-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.70

1-633484

Blade, Mulching (36")

Part# 1-633484 (Superseded to 103-6582-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

1-633485

Blade, Low Lift (36")

Part# 1-633485 (Superseded to 103-6580-S)

Note: Optional

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-513338

21

Washer, Special

Part# 1-513338

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

3253-7

22

1/2 Spring Lockwasher

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

3217-9

23

1/2-13 Hex Nut

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

325-20

24

1/2 -13 X 6 Hh Capscrew

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-303352

25

Washer, Spindle

Part# 1-303352

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-513648

26

Wheel & Tire, Complete

Part# 1-513648 (Superseded to 103-2171)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513807

Wheel & Hub

Part# 1-513807 (Superseded to 103-2171)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513808

Tire, 9 X 3.50-4 4-Ply

Part# 1-513808

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.53

1-513809

Roller Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-513810

Bushing

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-323735

27

Drive Belt (To Blades)

Part# 1-323735

Note: 36" Model

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.60

1-803310

28

Setscrew, 5/16-18 X 3/8

Part# 1-803310

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

322-6

29

5/16-18 X 1 1/4 Hh Capscrew

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

1-513547

30

Spacer, Front Caster

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-303537

31

Stud, Belt Shield (Short)

Part# 1-303537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303536

32

Stud, Belt Shield (Long)

Part# 1-303536

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

1-302218

33

Kit, Shield W/Decals 36"

Part# 1-302218 (Superseded to 116-2704)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $268.44

1-302213-01

Shield Weldmt, 36"

Part# 1-302213-01 (Superseded to 116-2706)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $299.05

1-323417

34

Washer, Belt Cover Mount

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-322145-01

35

Fork Wldmnt, Caster

Part# 1-322145-01 (Superseded to 116-7942-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.54

1-322154

36

Caster Wheel Assembly

Part# 1-322154 (Superseded to 103-1236)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $138.92

1-302233-01

37

Chute

Part# 1-302233-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $123.61

3296-56

38

Nut, Nyloc 1/4-20 Thin

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-323729

39

Powder Metal Bearing

Part# 1-323729

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

323-4

40

3/8-16 X 3/4 Hh Capscrew

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.95

1-603843

41

Idler Pulley (Heavy Duty)

Part# 1-603843 (Superseded to 132-4718)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-324265

42

Cutter Housing Complete

Part# 1-324265

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $438.25

322-5

43

5/16-18 X 1 Hh Capscrew

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42

1-633573

44

Guard, Bottom

Part# 1-633573

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

32120-8

45

Retaining Ring

Part# 32120-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.32

1-513016

46

Bearing

Part# 1-513016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.57

1-323532

47

Cutter Housing

Part# 1-323532 (Superseded to 103-8280)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

1-303314

48

Spacer, 10" Caster

Part# 1-303314

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-323529

49

Tube, Spindle

Part# 1-323529

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.01

1-323528

50

Spacer

Part# 1-323528

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303514

51

Flange, Thrust Bearing

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-323339

52

Retaining Washer, Sheave

Part# 1-323339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-403183

53

Pulley

Part# 1-403183

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.65

3219-6

54

5/8-18 Unf Hex Nut

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

1-800861

55

5/8-18 X 8 Hh Capscrew (Gr 5)

Part# 1-800861

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.55

1-807267

56

Key, 1/4 X 3/16 X 1 1/4

Part# 1-807267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323539

57

Spacer, Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.00

1-513208

58

5/8 Spring Disc Washer

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303434

59

Engagement Bushing

Part# 1-303434

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.17

1-303348

60

Eye Bolt (Left Hand Thread)

Part# 1-303348

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303236

61

Turnbuckle Body

Part# 1-303236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.41

1-303238

62

Eye Bolt (Right Hand Thread)

Part# 1-303238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-322235

63

Assist Arm (36")

Part# 1-322235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.53

322-10

64

Screw, 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

1-323303

65

Assist Arm Linkage

Part# 1-323303

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.65

1-322153

66

Caster/Mount, Complete

Part# 1-322153

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $313.76

1-302203

67

Caster Wheel Support W/Bearings

Part# 1-302203

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $204.86

1-302194-01

68

Caster Wheel Support Wldmnt

Part# 1-302194-01 (Superseded to 1-302203)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $204.86

1-303334

69

5/16 Spring Disc Washer

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323533

70

Spacer

Part# 1-323533

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-634619

71

Housing W/Brg, Spacer And Ring

Part# 1-634619 (Superseded to 103-8280)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

3256-3

72

Wshr, Flat Std 5/16

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

1-323715

73

Rod, Brake 36"

Part# 1-323715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

1-323071

74

Spring

Part# 1-323071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-323747

75

Spring, Compression

Part# 1-323747

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323746

76

Spacer, Flanged

Part# 1-323746

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3296-42

77

Nut, Nyloc 1/4 - 20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-324372

78

Pad/Spring Assy

Part# 1-324372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.08

321-4

79

Screw, Hhcap 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-403179

81

Tube, Pivot

Part# 1-403179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.41

3256-23

82

Wshr, Flt SAE 5/16

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

32120-35

83

E-Ring

Part# 32120-35

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

1-840022

Pro-Lock Type

Part# 1-840022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.94

1-850337

Red Spray Paint

Part# 1-850337

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.82
