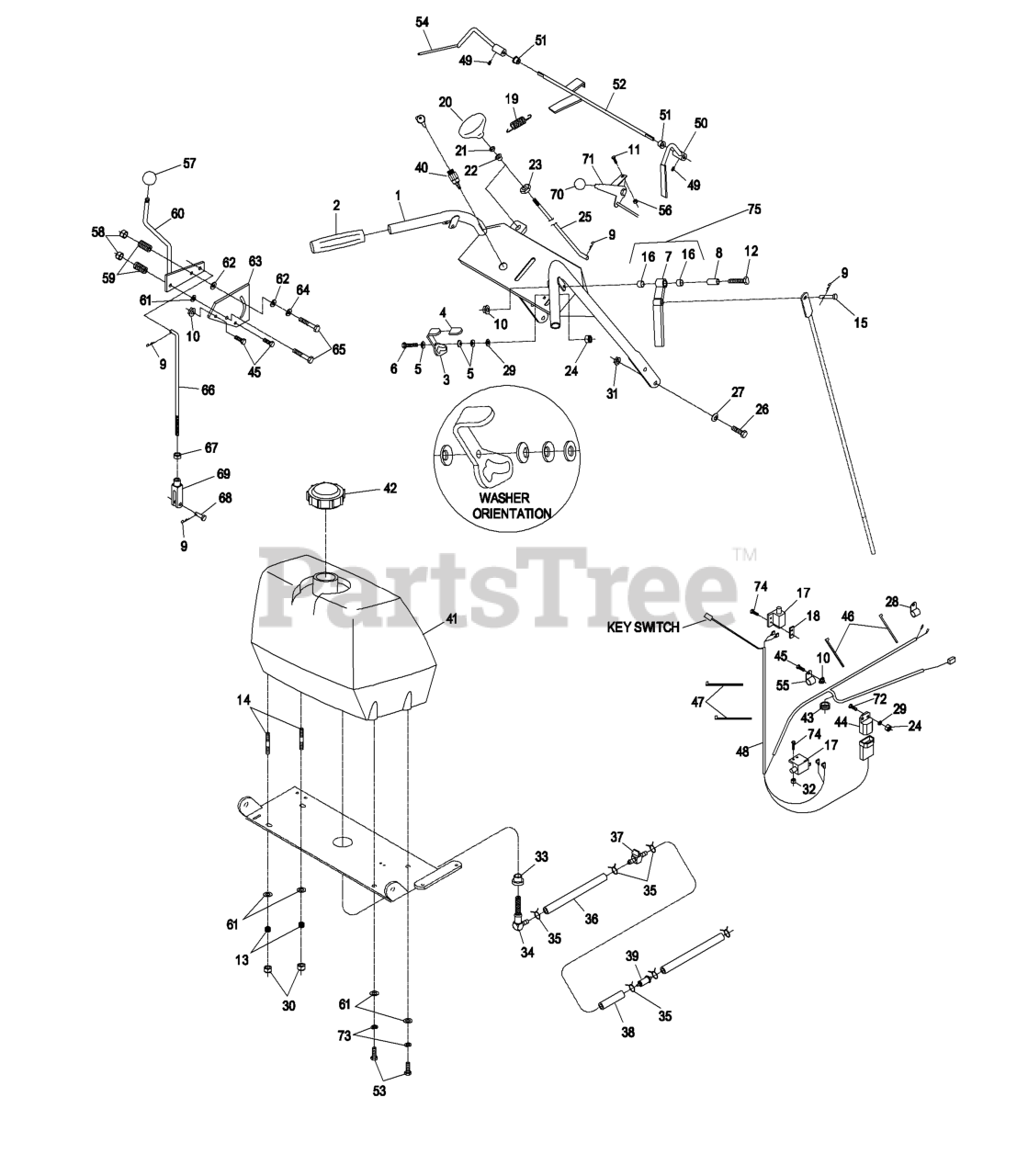

  • Title
103-0212

1

Handle W/Decals

Part# 103-0212

Note: (PN 1-322226)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $576.92

1-303097

2

Grip, Handle

Part# 1-303097 (Superseded to 104-9838)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.11

1-612168

3

Latch, Thumb W/Grip (Rh)

Part# 1-612168 (Superseded to 137-9514)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.77

1-612167

Latch, Thumb W/Grip (Lh)

Part# 1-612167 (Superseded to 137-9515)

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

1-303019

4

Grip, Latch

Part# 1-303019

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-303435

5

Washer, 1/4 Spring Disc

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

321-10

6

Screw, 1/4-20 X 1-3/4

Part# 321-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.91

1-412159-03

Lever, Drive (Lh)

Part# 1-412159-03 (Superseded to 103-0218)

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $108.31

1-412161-03

7

Lever, Drive (Rh)

Part# 1-412161-03 (Superseded to 103-0219)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $108.31

1-603749

8

Bushing, Drive Lever

Part# 1-603749

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.58

1-806003

9

Hairpin

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

32128-33

10

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-807513

11

Screw, #10-24x 1/2 Carriage

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

321-9

12

Screw, 1/4-20 X 1-1/2

Part# 321-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

1-633349

13

Spring, Fuel Tank

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-633023

14

Stud, Fuel Tank

Part# 1-633023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-613055

15

Pin, Clevis

Part# 1-613055

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.18

1-413152

16

Bearing

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-513051

17

Switch

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-633181

18

Plate, Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-303363

19

Spring, Actuator

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-323134

20

Knob, (Push/Pull)

Part# 1-323134

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.00

3218-2

21

Nut, Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

1-323143

22

Bushing, Nylon .38 I.D.

Part# 1-323143

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.47

1-323142

23

Push Nut (.50 Shaft)

Part# 1-323142

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

3296-42

24

Nut, Nylock 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-323181

25

Linkage, Blade Push/Pull

Part# 1-323181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.53

323-6

26

Screw, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

98-5975

27

Washer, 3/8 Spring Disc

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-323229

28

Clip, Loom 3/8" (Kaw)

Part# 1-323229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

3256-2

29

Washer 1/4" Std Flat

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

3296-47

30

Nut, Nyloc Thin 5/16

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

3290-357

31

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-804002

32

Nut, Sq Reg 10-24

Part# 1-804002

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

1-513645

33

Bushing, Fuel Valve

Part# 1-513645 (Superseded to 46-6560)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

1-543277

34

Elbow, Fuel Tank

Part# 1-543277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

1-303077

35

Clamp, Gas Line

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-603955

36

Fuel Line, 6"

Part# 1-603955

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

1-603770

37

Valve, Gas

Part# 1-603770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303022

38

Fuel Line, 8.5"

Part# 1-303022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

49019-1055

39

Fuel Filter

Part# 49019-1055

Note: With 6.0" fuel line; Kawasaki PN 49019-1055

OEM Warranty Repair Part for Exmark

Not available

1-403121

40

Switch, On/Off W//Key

Part# 1-403121

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-413179

41

Tank, Gas

Part# 1-413179 (Superseded to 109-6930)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $210.74

1-513508

42

Cap, Gas

Part# 1-513508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.70

1-543296

43

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

1-323430

44

Module, Interlock

Part# 1-323430

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $95.36

321-3

45

Screw, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

1-303287

46

Tie, Plastic 5 1/2" (Kaw)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303335

47

Tie, Plastic 7 5/16"

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

1-403181

48

Harness Wiring (Kawasaki)

Part# 1-403181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $85.94

1-803322

49

Setscrew, 5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-412185-03

50

Lever, Opc (Rh)

Part# 1-412185-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.07

1-303365

51

Bushing, Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-322192-03

52

Rod Weldmt, Connecting

Part# 1-322192-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.24

322-3

53

Screw, 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-412183-03

54

Lever, Opc (Lh)

Part# 1-412183-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $27.07

1-603727

55

Clip, .56 Loom

Part# 1-603727

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

3296-2

56

Nut, Nylock #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

1-603175

57

Knob, 1-3/8

Part# 1-603175

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

3296-29

58

Nut, Nylock 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-323245

59

Spring, Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-602733

60

Lever, Shift

Part# 1-602733 (Superseded to 106-2748)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

3256-23

61

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-323244

62

Washer, Friction

Part# 1-323244

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-603730

63

Plate, Shift Lever

Part# 1-603730

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.89

1-603716

64

Washer, Friction

Part# 1-603716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

322-10

65

Screw, 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

1-323522

66

Rod, Speed Control

Part# 1-323522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

3220-2

67

Nut, Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

1-808280

68

Pin, Clevis

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303105

69

Yoke, Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

1-513592

70

Knob, Red Ball

Part# 1-513592

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-413428

71

Cable, Throttle (15hp Kaw)

Part# 1-413428

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.47

321-4

72

Screw, 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-805005

73

Washer, 5/16 Lock

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3290-500

74

Screw, #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-0219

75

Asm, Drive Lever Rh

Part# 103-0219

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $108.31

103-0218

Asm, Drive Lever Lh

Part# 103-0218

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $108.31

1-322226-03

Viking Hydro Handle

Part# 1-322226-03 (Superseded to 103-0212)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $576.92

1-322226

Replaced By 1-322226-03

Part# 1-322226 (Superseded to 103-0212)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $576.92

1-840022

Pro-Lock, Nut Type

Part# 1-840022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.94

1-840023

Pro-Lock, Retaining Type

Part# 1-840023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.94
