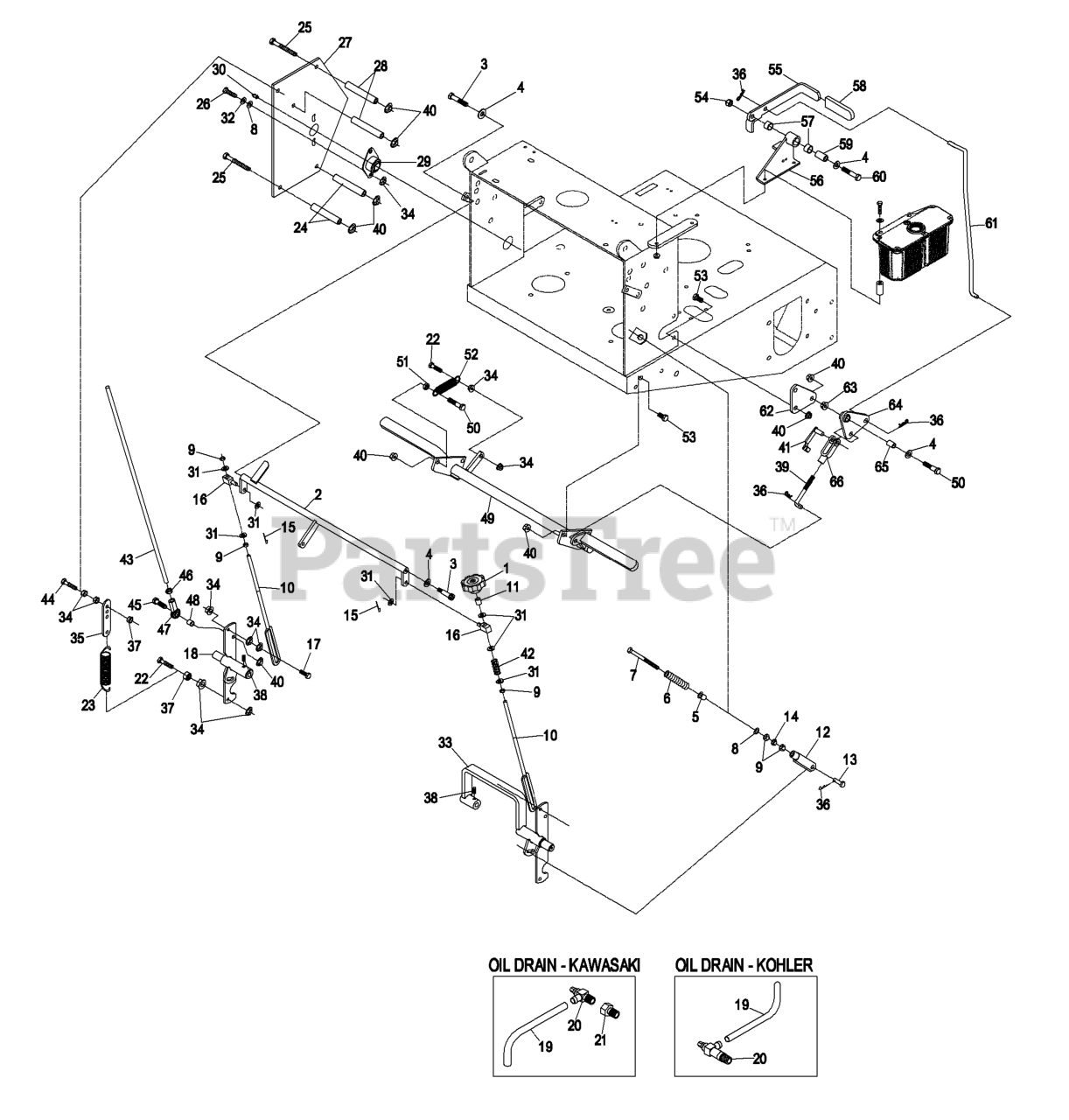

  • Title
1-413151

1

Knob, Tracking

Part# 1-413151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.84

1-412203-01

2

Crank Weldmt

Part# 1-412203-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.19

1-809056

3

Bolt, .375 X .375 (Shoulder)

Part# 1-809056

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolts & setscrew threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.84

3256-24

4

Washer, 3/8 SAE Flat

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

1-603735

5

Bushing, Nylon Flanged

Part# 1-603735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

103-0265

6

Spring, Neutral Return

Part# 103-0265

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.46

1-603737

7

Bolt, Neutral Return

Part# 1-603737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.62

3256-2

8

Washer, 1/4(Std)

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

3219-2

9

Nut, 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

1-413350

10

Rod, Control Arm

Part# 1-413350

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.20

1-603903

11

Spacer

Part# 1-603903

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.80

1-303105

12

Yoke, Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.03

1-808280

13

Pin, Clevis 5/16-1

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

3220-2

14

Nut, Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

3272-5

15

Pin, Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02

1-603676

16

Swivel

Part# 1-603676 (Superseded to 126-8571)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.31

1-403180

17

Screw, 5/16-18x1 3/8 Special

Part# 1-403180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

103-1190-01

18

Arm Weldmt, Lh

Part# 103-1190-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $117.73

103-1964

19

Hose, 24" Oil Drain

Part# 103-1964

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.37

103-1965

20

Valve, Oil Drain

Part# 103-1965

Note: Use a Teflon Pipe Sealant or equivalent on pipe threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.10

103-1966

21

Adapter, M20-2.5 / 3/8 Npt (Kaw)

Part# 103-1966

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

322-6

22

Screw, 5/16-18 X 1-1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-603693

23

Spring, Extension

Part# 1-603693

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.86

1-323197-01

24

Spacer, Short

Part# 1-323197-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.61

323-16

25

Screw, 3/8-16 X 4

Part# 323-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.19

322-3

26

5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-413201-01

27

Shield, Hydro Control

Part# 1-413201-01 (Superseded to 110-4897-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.25

1-323195-01

28

Spacer, Long

Part# 1-323195-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.61

1-633102

29

Bearing, Flange

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

302-19

30

Zerk, 1/4-28

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

3256-23

31

Washer, 5/16 (SAE)

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

1-805005

32

Lockwasher, 5/16 (Heavy)

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

103-1191-01

33

Arm Weldmt, Rh

Part# 103-1191-01

OEM Warranty Repair Part for Exmark

Not available

32128-20

34

Nut, Whizlock 5/16

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-613089

35

Anchor, Spring

Part# 1-613089

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

1-806003

36

Hairpin

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

3296-29

37

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

1-803022

38

Setscrew, 5/16-18 X 5/8

Part# 1-803022

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolts & setscrew threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.80

1-413489

39

Linkage, Lower Brake

Part# 1-413489

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

3290-357

40

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

103-2399

41

Pin, Clevis Spring 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.25

1-323245

42

Spring

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.68

103-1734

43

Linkage, Drive

Part# 103-1734

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.65

1-800016

44

Tapbolt, 5/16-18 X 1 1/4

Part# 1-800016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.95

323-8

45

Screw, 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

3220-16

46

Nut, Jam 3/8-24 Lh

Part# 3220-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

103-1167

47

Joint, .375 Lh Ball End

Part# 103-1167

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-1166

48

Tube, Pump Link Spacer

Part# 103-1166

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.60

103-2299-03

49

Brake Wldmt, 32"

Part# 103-2299-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $172.61

103-2085-03

Brake Wldmt, 36"

Part# 103-2085-03 (Superseded to 126-1599)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.73

103-2004-03

Brake Wldmt, 48"

Part# 103-2004-03 (Superseded to 116-9964)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.73

323-9

50

Screw, 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3218-3

51

Nut, Jam 3/8-16

Part# 3218-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-323161

52

Spring

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.41

323-4

53

Screw, 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.05

3296-39

54

Nut, 3/8-16 Nyloc

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

1-412501-03

55

Park Brake Lever Wldmt

Part# 1-412501-03 (Superseded to 116-1725-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.31

1-414504

56

Wldmt, Bracket W/ Bushings

Part# 1-414504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $61.17

1-413347

57

Sleeve, Bushing

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-303020

58

Grip, Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-413344

59

Bushing, Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.81

323-10

60

Screw, 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-413496

61

Linkage, Upper Brake

Part# 1-413496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.39

1-413497

62

Bracket, Bellcrank

Part# 1-413497

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.08

32128-21

63

Nut, Hex Flange Lock 3/8-16

Part# 32128-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

1-414508

64

Bellcrank, W/ Bushings

Part# 1-414508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.70

1-303548

65

Bushing, Plastic

Part# 1-303548

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.61

1-633131

66

Yoke, Brake Linkage

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69
