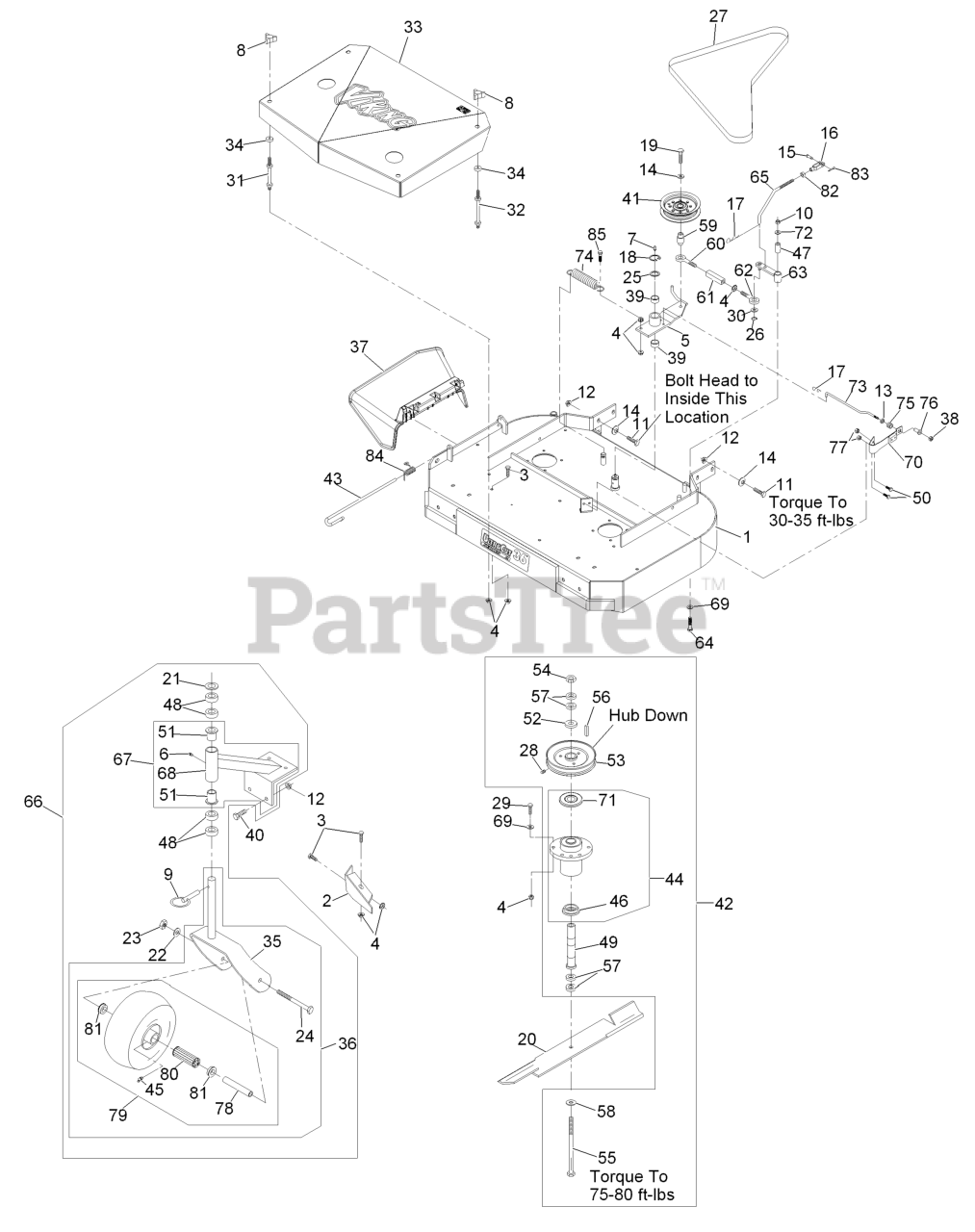

VH481KA362CA - Exmark 36" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012)

36" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB

VH481KA362CA - Exmark 36" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > Mower Deck Assembly

  • Title
103-2312

1

Deck (116-0616-01) W/Decals, Dogleg, & Discharge Deflector

Part# 103-2312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1770.82

1-302189-01

2

Baffle-Dogleg

Part# 1-302189-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.13

322-2

3

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

32128-20

4

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-3600

5

Idler Arm Asm

Part# 103-3600

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $88.89

302-52

6

Zerk-1/8-27 Str

Part# 302-52

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

302-19

7

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-323385

8

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-809020

9

Pin

Part# 1-809020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

3296-29

10

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

323-6

11

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3290-357

12

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-323748

13

Ring-Push On

Part# 1-323748

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

98-5975

14

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-808280

15

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303105

16

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.81

1-806003

17

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

32151-103

18

E-Ring

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

702809

19

Screw-Hh

Part# 702809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-6584

20

Blade, Notched

Part# 103-6584 (Superseded to 103-6584-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

103-6582

20

Blade, Mulching

Part# 103-6582 (Superseded to 103-6582-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

103-6580

20

Blade, Low Lift

Part# 103-6580 (Superseded to 103-6580-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-1578

20

Blade, Solid

Part# 103-1578 (Superseded to 103-1578-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.70

116-5176

20

Blade, Extreme (36 )

Part# 116-5176 (Superseded to 116-5176-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.23

1-513338

21

Washer

Part# 1-513338

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

3253-7

22

Washer-Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

3217-9

23

Nut-Hex 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

325-20

24

Screw-Hh 1/2-13 X 6

Part# 325-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-303352

25

Washer-Spindle

Part# 1-303352

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

32120-35

26

E-Ring

Part# 32120-35

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

1-323735

27

Drive Belt (To Blades)

Part# 1-323735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.60

3246-18

28

Setscrew-5/16-18 X 3/8

Part# 3246-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

322-6

29

Screw-Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

3256-23

30

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-303537

31

Stud-Shield, Belt (Short)

Part# 1-303537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303536

32

Stud-Shield, Belt (Long)

Part# 1-303536

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

116-2704

33

Asm, Shield (1-302213-01) W/Decals

Part# 116-2704

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $268.44

1-323417

34

Washer-Belt Shield

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-322145-01

35

Fork

Part# 1-322145-01 (Superseded to 116-7942-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.54

103-1236

36

Asm, Caster Wheel Assembly

Part# 103-1236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $138.92

109-5151

37

Deflector-Discharge

Part# 109-5151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

3296-56

38

Nut-Nyloc 1/4-20 Thin

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-323729

39

Sleeve-Bearing

Part# 1-323729

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

323-4

40

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.95

116-3626

41

Pulley-Idler

Part# 116-3626 (Superseded to 132-4718)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-8387

42

Asm, Cutter Housing Complete

Part# 103-8387

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $369.18

109-8854

43

Pin-Chute

Part# 109-8854

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

103-8280

44

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

302-61

45

Zerk-45deg 1/4-28

Part# 302-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-2535

46

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.21

1-403179

47

Tube-Pivot

Part# 1-403179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.41

1-303314

48

Spacer-Caster

Part# 1-303314

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-323529

49

Tube-Spindle, Short

Part# 1-323529

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $57.01

321-4

50

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-303514

51

Bearing-Flanged

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-323339

52

Washer

Part# 1-323339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-403183

53

Sheave

Part# 1-403183

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.65

3219-6

54

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

1-800861

55

Screw-Cap, Hh

Part# 1-800861

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.55

1-807267

56

Key-Machine 1/4 X 3/16 X 1 1/4

Part# 1-807267

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323539

57

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.00

1-513208

58

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303434

59

Bushing-Engagement

Part# 1-303434

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.17

1-303348

60

Eyebolt-Thread, Lh

Part# 1-303348

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-303236

61

Body-Turnbuckle

Part# 1-303236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.41

1-303238

62

Eyebolt-Thread, Rh

Part# 1-303238

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

1-322235

63

Arm-Assist

Part# 1-322235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.53

322-10

64

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.70

1-323174

65

Arm-Linkage, Assist

Part# 1-323174

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.00

103-2281

66

Asm, Caster/Mnt Complete, Weighted

Part# 103-2281 (Superseded to 116-8245)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $492.15

103-2296

67

Asm, Caster Wheel Support W/Bearings, Weighted

Part# 103-2296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $197.79

103-2297-01

68

Wld, Caster Wheel Support, Weighted

Part# 103-2297-01 (Superseded to 103-2296)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $197.79

1-303334

69

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-324372

70

Pad And Spring Asm

Part# 1-324372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.08

103-1330

71

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

3256-3

72

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

1-323715

73

Rod-Brake

Part# 1-323715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.65

1-323071

74

Spring-Extension

Part# 1-323071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-323747

75

Spring-Compression

Part# 1-323747

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-323746

76

Spacer-Flanged

Part# 1-323746

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3296-42

77

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

1-513547

78

Spacer

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-2171

79

Kit, Tire & Wheel Asm W/ Spacer

Part# 103-2171

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513809

80

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-513810

81

Bushing-Flanged

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3219-2

82

Nut-Hex 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3272-5

83

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

116-0962

84

Spring, Torsion

Part# 116-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

116-3515

85

Screw,Hh Special 5/16-18 X 1.25

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11
