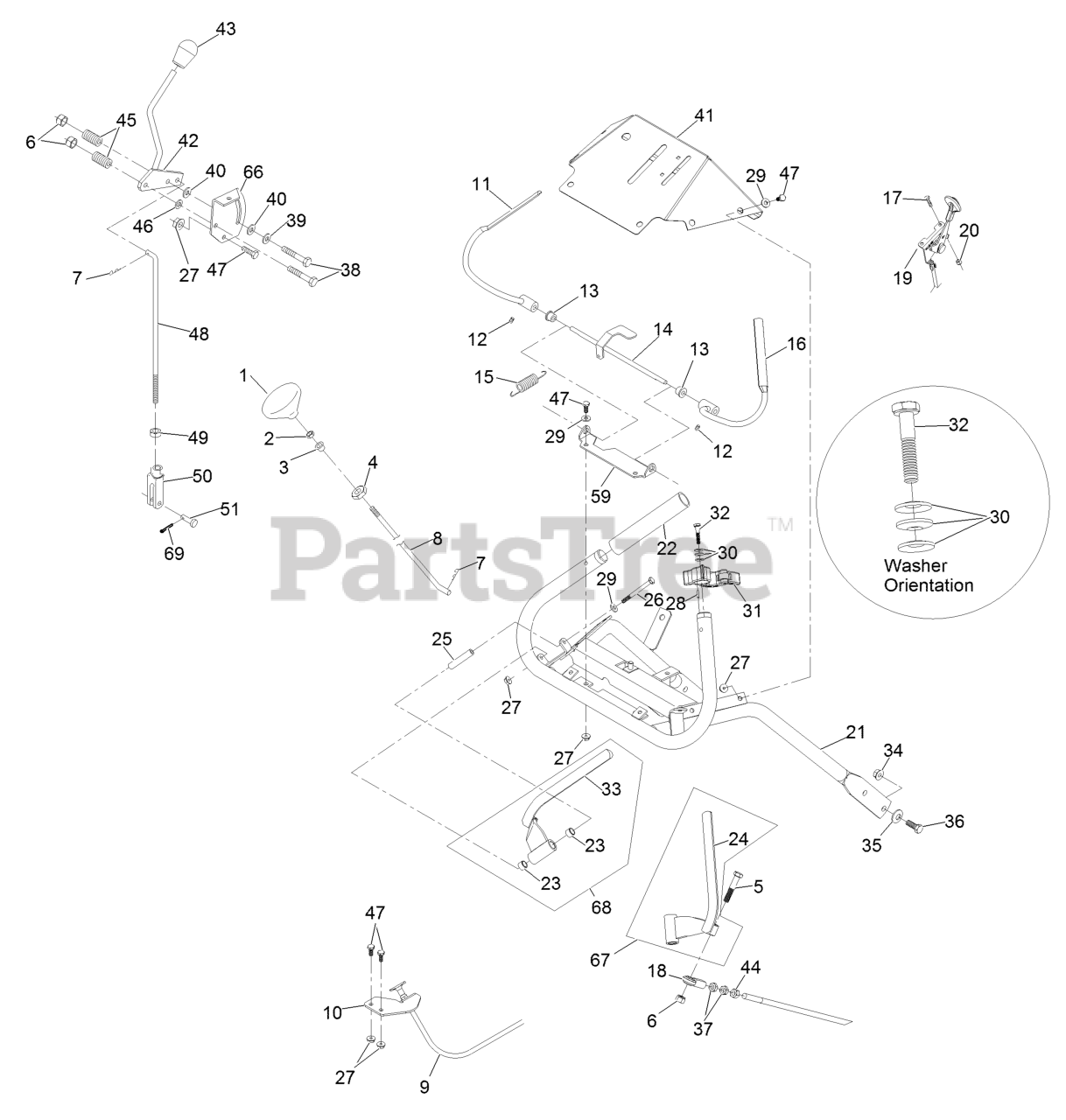

VH481KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS481V (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > ECS Upper Handle and Controls

  • Title
1-323134

1

Knob-Push / Pull

Part# 1-323134

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.13

3218-2

2

Nut-Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.32

1-323143

3

Bearing-Nylon

Part# 1-323143

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

1-323142

4

Nut-Push 1/2

Part# 1-323142

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.80

322-9

5

Screw-Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

3296-29

6

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

1-806003

7

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

103-2193

8

Link, Blade Engagement

Part# 103-2193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

103-1796

9

Cable-Choke

Part# 103-1796

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.46

103-1797-01

10

Bracket-Cable, Choke

Part# 103-1797-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.24

116-4079-03

11

Wld, Opc Lever Lh

Part# 116-4079-03 (Superseded to 116-4079)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.10

1-803322

12

Setscrew-5/16-24 X 5/16

Part# 1-803322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-303365

13

Bushing-Nylon

Part# 1-303365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.86

103-0769-03

14

Wld, Opc Axle Lever

Part# 103-0769-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.16

1-303363

15

Spring-Extension

Part# 1-303363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

116-4080-03

16

Wld, Opc Lever Rh

Part# 116-4080-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

1-807513

17

Bolt-Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

103-2463

18

Balljoint

Part# 103-2463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.62

116-2426

19

Cable, Throttle

Part# 116-2426

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.16

3296-2

20

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

103-2194-03

21

Wld, Upper Handle Ecs

Part# 103-2194-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $470.47

103-0815

22

Grip-Bar, Handle

Part# 103-0815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

1-413152

23

Bushing-Sleeve

Part# 1-413152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.45

116-4081-03

24

Lever, Drive (Lh)

Part# 116-4081-03

OEM Warranty Repair Part for Exmark

Currently unavailable

103-0027

25

Bushing-Lever, Drive

Part# 103-0027

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.48

321-14

26

Screw-Hh 1/4-20 X 2 3/4

Part# 321-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.71

32128-33

27

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-0464

28

Pin-Spring 1/8 X 1/2

Part# 103-0464 (Superseded to 126-2925)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.30

3256-22

29

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-303435

30

Washer-Spring Disc 1/4

Part# 1-303435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-1371

31

Thumb Latch Asm Rh(Shown)

Part# 103-1371

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.65

103-1372

31

Thumb Latch Asm Lh

Part# 103-1372

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.65

103-0235

32

Screw-Hh 1/4-20 X 1 1/8 W/Nylon

Part# 103-0235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-4082-03

33

Lever, Drive (Rh)

Part# 116-4082-03

OEM Warranty Repair Part for Exmark

Currently unavailable

3290-357

34

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

98-5975

35

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-6

36

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

3220-3

37

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.29

322-10

38

Screw-Hh 5/16-18 X 2

Part# 322-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-603716

39

Washer-Friction Disc

Part# 1-603716

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.73

1-323244

40

Washer-Friction

Part# 1-323244

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.61

109-4931

41

Asm, Console(109-4649-03) W/Decals

Part# 109-4931

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $184.77

116-4083

42

Wld, Speed Shift

Part# 116-4083 (Superseded to 116-8632)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.76

103-0423

43

Knob-Nyloc 3/8-16

Part# 103-0423

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.99

3219-3

44

Nut-Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

1-323245

45

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.68

3256-23

46

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

321-3

47

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-323522

48

Rod-Control, Speed

Part# 1-323522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.19

3220-2

49

Nut-Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

1-303105

50

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.03

1-808280

51

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

103-0489-03

59

Bracket, Opc Axle

Part# 103-0489-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.31

103-0503

66

Bracket, Shifter Slide

Part# 103-0503

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.32

103-2513

67

Asm, Drive Lever Rh

Part# 103-2513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $87.52

103-2514

68

Asm, Drive Lever Lh

Part# 103-2514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $87.52

3272-5

69

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02
