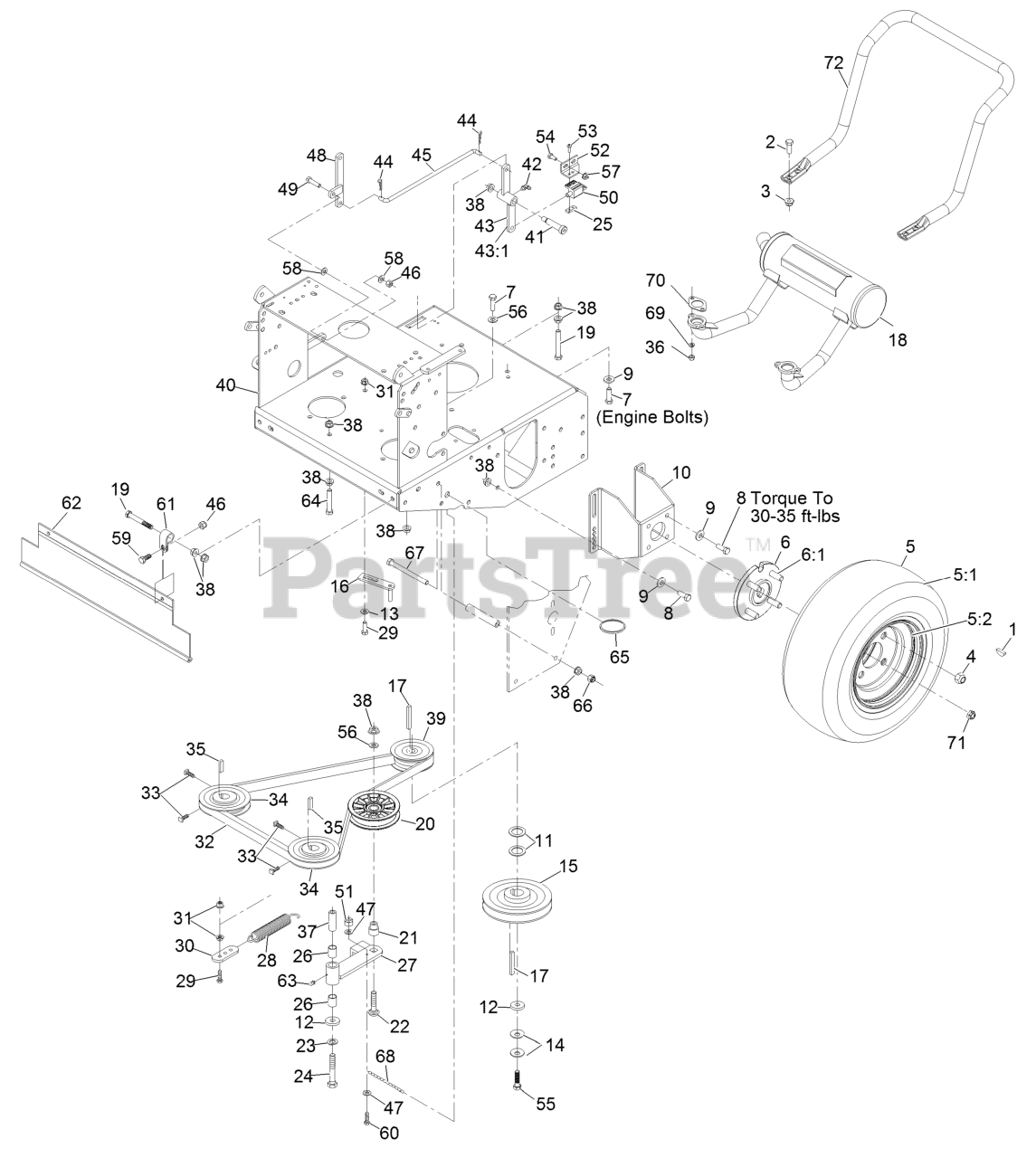

VH481KA483CA - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012)

48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB

VH481KA483CA - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > Engine Deck Assembly

  • Title
1-807019

1

Key-Woodruff 1 X 1/4

Part# 1-807019

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.63

323-6

2

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

104-8301

3

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

242-50

4

Nut-Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-413473

5

Wheel And Tire Asm

Part# 1-413473

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $152.36

1-413474

5:1

Tire-Turfmaster

Part# 1-413474

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.18

1-603715

5:2

Wheel-Rim

Part# 1-603715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

112-9049

6

Wheel Hub Asm

Part# 112-9049

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $126.96

1-633926

6:1

Stud-Wheel

Part# 1-633926

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

323-7

7

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-6

8

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

98-5975

9

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-402062-01

10

Mount-Motor

Part# 1-402062-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.51

1-523157

11

Washer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-373034

12

Washer

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-303334

13

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

1-603610

14

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

103-1667

15

Sheave

Part# 103-1667 (Superseded to 1-403160)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.01

1-322110

16

Guide-Belt

Part# 1-322110

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

1-807259

17

Key-Machine 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

116-3734

18

Muffler (32 & 36 )

Part# 116-3734

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $232.19

323-13

19

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.91

109-4077

20

Pulley-Idler, Flat

Part# 109-4077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.99

1-603496

21

Bushing-Idler

Part# 1-603496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

3231-29

22

Bolt-Carriage 3/8-16 X 1 3/4

Part# 3231-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.62

3253-5

23

Washer-Lock 3/8 Heavy

Part# 3253-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

323-12

24

Screw-Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

1-633181

25

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.96

103-4681

26

Sleeve-Bearing

Part# 103-4681

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.24

1-602521

27

Idler Arm Asm

Part# 1-602521

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $78.48

1-603402

28

Spring-Extension

Part# 1-603402

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

322-5

29

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

1-603801

30

Anchor-Spring

Part# 1-603801

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.70

32128-20

31

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

103-4760

32

Belt-Cog

Part# 103-4760

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.62

1-803050

33

Setscrew-5/16-18 X 3/4

Part# 1-803050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.39

1-413010

34

Sheave Asm

Part# 1-413010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

1-807272

35

Key-5mm X 5mm X 25mm

Part# 1-807272

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

114-3549

36

Nut-M8

Part# 114-3549

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.71

1-603044

37

Bushing

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

3290-357

38

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

1-653035

39

Pulley

Part# 1-653035

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

116-6132

40

Deck, Eng(117-3523-01)W/Decals

Part# 116-6132

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $781.68

1-809062

41

Screw

Part# 1-809062

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.14

302-40

42

Zerk-90deg 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.45

1-322108

43

Bellcrank Asm

Part# 1-322108

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.42

1-322086-01

43:1

Wld, Bellcrank

Part# 1-322086-01 (Superseded to 1-322108)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.42

1-806003

44

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

1-323172

45

Linkage-Engage, Blade

Part# 1-323172

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.61

3296-29

46

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

3256-14

47

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

116-1737-01

48

Bellcrank

Part# 116-1737-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.02

322-6

49

Screw-Hh 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-513051

50

Switch-N.O.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

3296-2

51

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

1-323213

52

Bracket-Switch, Blade

Part# 1-323213

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.92

3290-500

53

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

321-3

54

Screw-Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

116-3702

55

Screw-Hh

Part# 116-3702

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.43

3256-24

56

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

32128-33

57

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

3256-23

58

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

322-3

59

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-809069

60

Screw-Hsh #10-24 X 7/8

Part# 1-809069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.09

1-413510

61

Clip-Loom

Part# 1-413510

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

103-2056

62

Shield-Drag

Part# 103-2056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.70

302-19

63

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

323-11

64

Screw-Hh 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

1-323366

65

Ring-Split

Part# 1-323366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.71

3296-39

66

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

323-23

67

Screw-Hh 3/8-16 X 4-1/2

Part# 323-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.23

1-323365

68

Chain-Link, Twist

Part# 1-323365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.22

114-3550

69

Washer-Lock, Spring

Part# 114-3550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

1-653313

70

Gasket-Exhaust

Part# 1-653313

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

116-2839

71

Nut-Lock

Part# 116-2839

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.31

116-6278-03

72

Guard-Muffler

Part# 116-6278-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48
