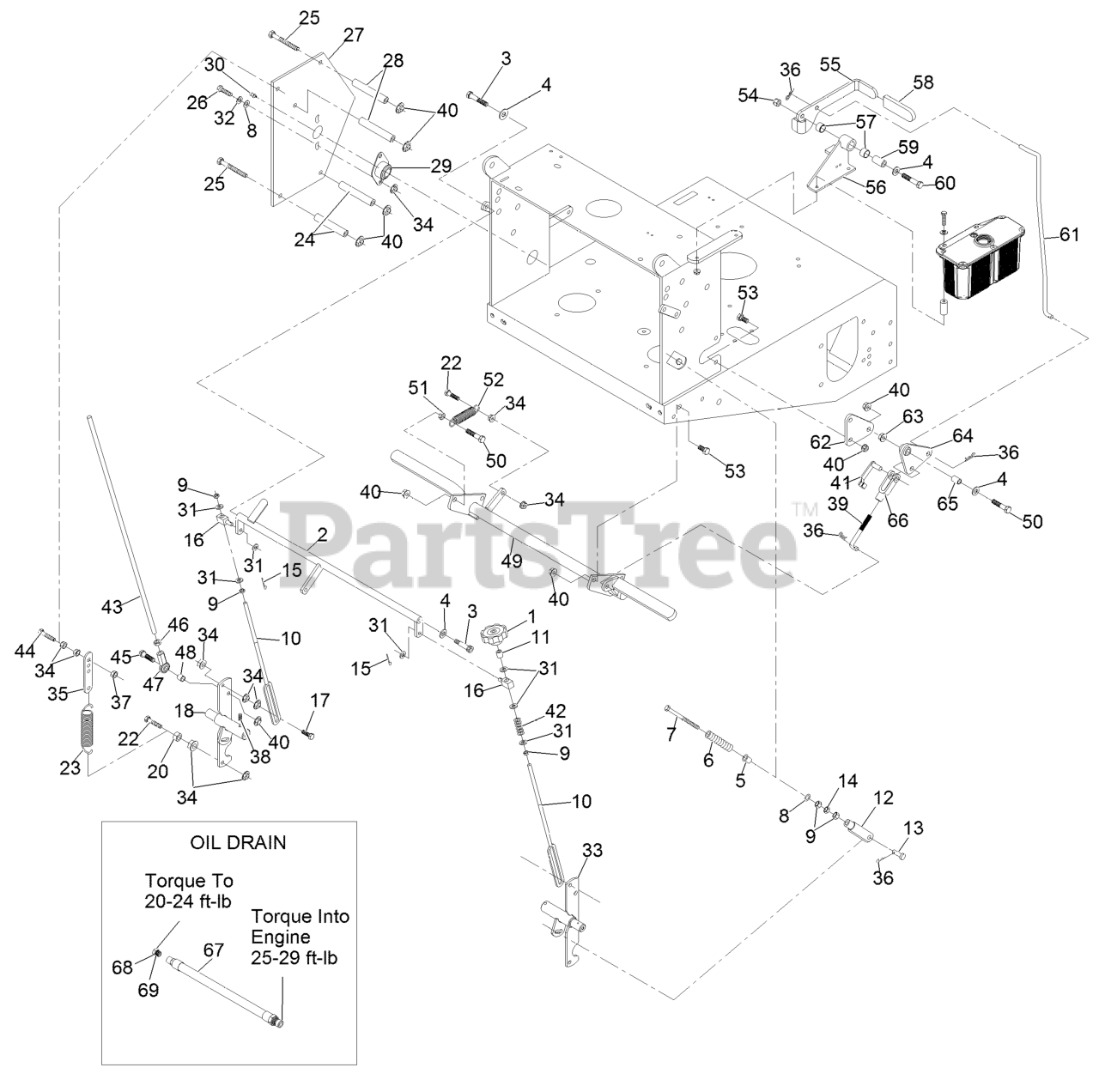

VH481KA483CA - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012)

48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB

VH481KA483CA - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012) > Parts Diagrams (8) > Engine Deck Assembly (cont.)

  • Title
103-3060

1

Knob-Tracking

Part# 103-3060

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

1-412203-01

2

Crank-Control, Speed

Part# 1-412203-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.19

1-809056

3

Screw-Sh 5/16-18 X 1 3/8

Part# 1-809056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.84

3256-24

4

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

1-603735

5

Bushing-Flanged

Part# 1-603735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.37

103-0265

6

Spring, Neutral Return

Part# 103-0265

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-603737

7

Bolt-Neutral Return

Part# 1-603737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.62

3256-2

8

Washer-1/4 Std

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

3219-2

9

Nut-Hex 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

1-413350

10

Link-Control, Speed

Part# 1-413350

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.20

1-603903

11

Spacer

Part# 1-603903

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.80

1-303105

12

Yoke-Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.03

1-808280

13

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

3220-2

14

Nut-Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

3272-5

15

Pin-Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02

1-603676

16

Swivel-Adjustable, Short

Part# 1-603676 (Superseded to 126-8571)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.31

1-403180

17

Screw-Hh 5/16-18 X 1 1/4 Sp

Part# 1-403180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

103-1190-01

18

Shaft-Control, Lh

Part# 103-1190-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.73

3218-2

20

Nut-Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.32

116-3515

22

Screw,Hh Special 5/16-18 X 1.25

Part# 116-3515

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.89

1-603693

23

Spring

Part# 1-603693

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.86

1-323197-01

24

Spacer-Shield

Part# 1-323197-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.61

323-16

25

Screw-Hh 3/8-16 X 4

Part# 323-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.19

322-3

26

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

110-4897-01

27

Shield-Control

Part# 110-4897-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.25

1-323195-01

28

Spacer-Shield

Part# 1-323195-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.61

1-633102

29

Bearing-Flanged

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.65

302-19

30

Zerk-1/4-28 Str

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

3256-23

31

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

1-805005

32

Washer-Lock 5/16 Heavy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

103-4796-01

33

Shaft-Control, Rh

Part# 103-4796-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.49

32128-20

34

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-613089

35

Tab-Spring, Extension

Part# 1-613089

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.91

1-806003

36

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

3296-29

37

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

1-803022

38

Setscrew-5/16-18 X 5/8

Part# 1-803022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.80

1-413489

39

Linkage-Lower

Part# 1-413489

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

3290-357

40

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

103-2399

41

Pin-Clevis Spring 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.25

1-323245

42

Spring-Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.68

103-1734

43

Linkage, Drive

Part# 103-1734

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.65

1-800016

44

Bolt-Hh 5/16-18 X 1 1/4 Tap

Part# 1-800016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.95

323-8

45

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

3220-16

46

Nut-Jam 3/8-24 Lh

Part# 3220-16

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

103-1167

47

Joint-Ball End, .38x.38fe Lh

Part# 103-1167

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-1166

48

Spacer-Tube, Pump Link

Part# 103-1166

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.60

103-2085-03

49

Brake Asm

Part# 103-2085-03 (Superseded to 126-1599)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.73

323-9

50

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3218-3

51

Nut-Jam 3/8-16

Part# 3218-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-323161

52

Spring

Part# 1-323161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.41

323-4

53

Screw-Hh 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.05

3296-39

54

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

103-3495

55

Lever, Brake (116-1725-03) W/Decal & Grip

Part# 103-3495

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.90

1-414504

56

Bracket Asm

Part# 1-414504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $61.17

1-413347

57

Sleeve-Bushing

Part# 1-413347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-303020

58

Grip-Lever

Part# 1-303020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-413344

59

Bushing-Pivot

Part# 1-413344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.81

323-10

60

Screw-Hh 3/8-16 X 2

Part# 323-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

1-413496

61

Linkage-Upper

Part# 1-413496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.39

1-413497

62

Bellcrank

Part# 1-413497

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.08

32128-21

63

Nut-3/8-16 Flanged Side Lock

Part# 32128-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

1-414508

64

Bellcrank Asm

Part# 1-414508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.70

1-303548

65

Bushing-Plastic

Part# 1-303548

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.61

1-633131

66

Yoke-Linkage, Brake

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

116-5052

67

Asm-Oil Drain Hose W/Plug

Part# 116-5052

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.78

353-508

68

Plug-W/O-Ring

Part# 353-508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.96

237-42

69

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.27
