VH481KA483CA - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB (SN: 312000000 - 312999999) (2012) Fuel Tank Assembly Parts Diagram

48" Viking Hydro Walk-Behind Mower, Kawasaki FS, CARB

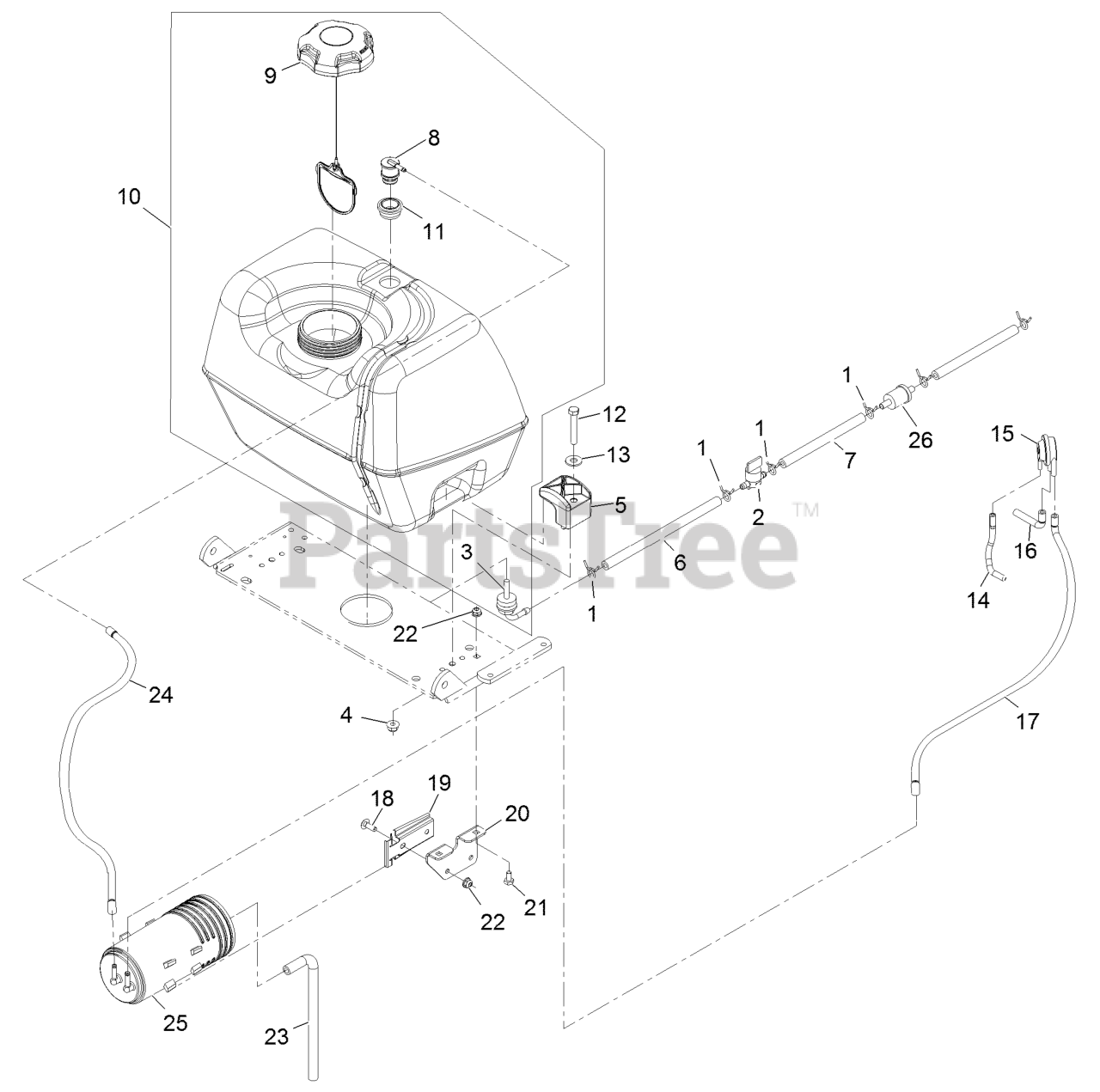

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

3

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$39.99

$

In Stock, only 3 left!

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0650

HOSE-FUEL

$8.49

$

In Stock, only 2 left!

0

7

Exmark 99-2415

HYD CYLINDER ASM

$

$

Not available

8

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$17.99

$

In Stock, only 2 left!

0

9

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$29.99

$

In Stock, only 4 left!

0

10

Exmark 116-3656

126-1525
(Superseded to 140-4343)

$320.99

$

In Stock, only 2 left!

0

11

Exmark 114-0284

GROMMET

$3.49

$

In Stock, Qty 8

0

12

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

14

Exmark 116-2394

HOSE-VENT, FORMED

$8.99

$

In Stock, only 2 left!

0

15

Exmark 116-2232

VALVE-CONTROL, VACUUM

$36.99

$

In Stock, only 1 left!

0

16

Exmark 116-2233

HOSE-VENT, FORMED

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 116-2231

HOSE-VENT, FORMED

$38.99

$

Usually ships in 3-6 days

0

18

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

19

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$15.99

$

Usually ships in 3-6 days

0

21

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, only 3 left!

0

24

Exmark 114-0286

HOSE-VENT

$8.99

$

Usually ships in 3-6 days

0

25

Exmark 117-1221

CANISTER-CARBON, 800CC

$82.99

$

In Stock, only 1 left!

0

26

Pn 41019-1055 Filter W/6in Fuel Line

Note: Obtain parts from www.kawpowerepc.com, Not serviced separately

$

$

Not available
