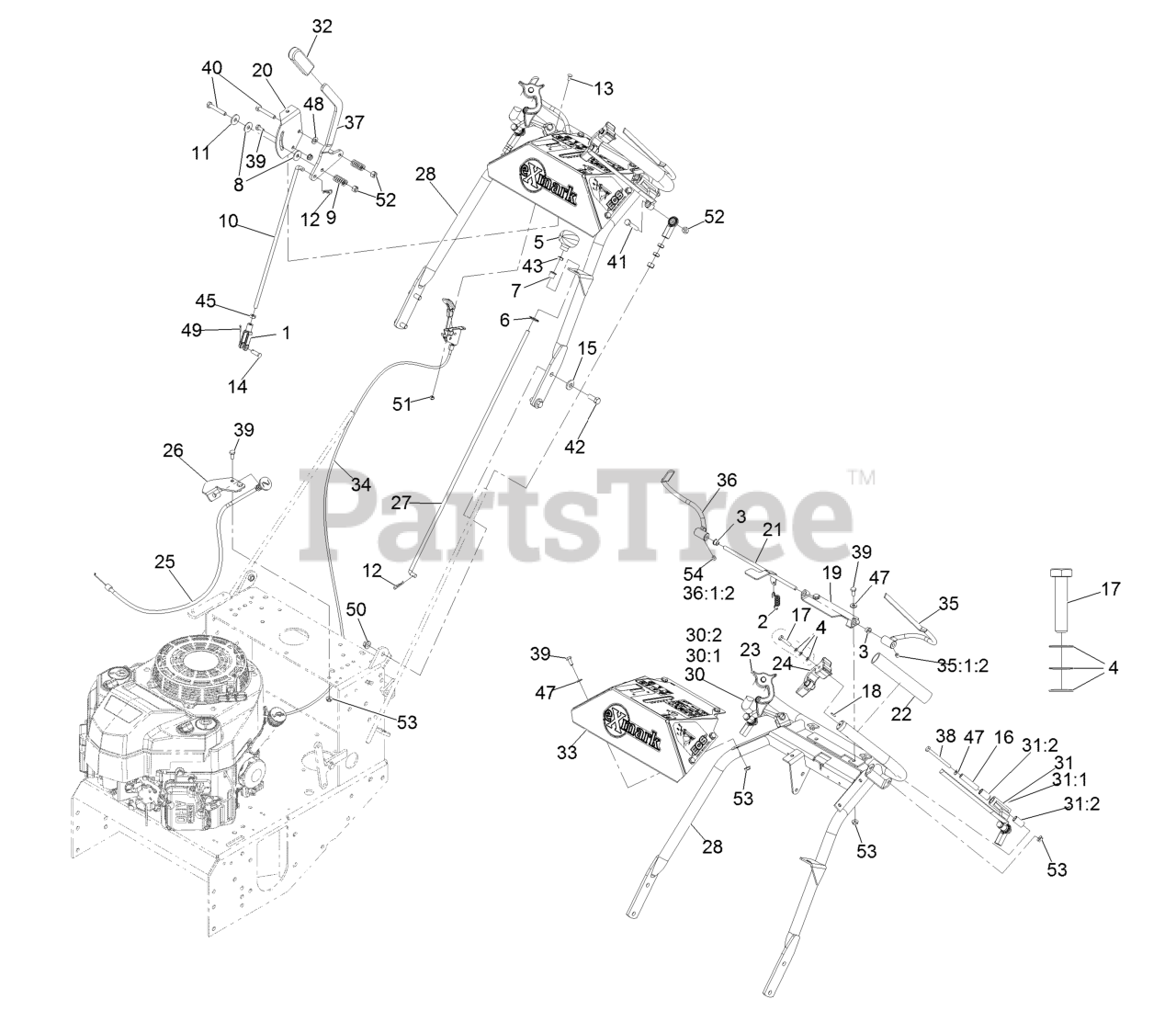

VHS481GKA36200 - Exmark 36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Controls Assembly Parts Diagram

36" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

Controls Assembly Parts Diagram

  • Title

1

Exmark 1-303105

Yoke-Adjustable

$13.99

$

In Stock, only 4 left!

0

2

Exmark 1-303363

Spring-Extension

$6.99

$

In Stock, Qty 14

0

3

Exmark 1-303365

Bushing-Nylon

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-303435

Washer-Spring Disc 1/4

$1.99

$

In Stock, Qty 20+

0

5

Exmark 1-323134

Knob-Push / Pull

$30.99

$

In Stock, only 2 left!

0

6

Exmark 1-323142

Nut-Push 1/2

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 1-323143

Bearing-Nylon

$6.99

$

In Stock, only 3 left!

0

8

Exmark 1-323244

Washer-Friction
(Superseded to 93-1633)

$3.49

$

In Stock, Qty 10

0

9

Exmark 1-323245

Spring-Compression

$6.99

$

In Stock, Qty 9

0

10

Exmark 1-323522

Rod-Control, Speed

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 1-603716

Washer-Friction Disc

$5.49

$

In Stock, only 3 left!

0

12

Exmark 1-806003

Hairpin-Cotter

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 16

0

14

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

15

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

16

Exmark 103-0027

Bushing-Lever, Drive

$21.99

$

In Stock, only 2 left!

0

17

Exmark 103-0235

Screw-HH 1/4-20 X 1 1/8 W/Nylon

$1.49

$

In Stock, Qty 14

0

18

Exmark 126-2925

Pin-Spring

$1.49

$

In Stock, only 3 left!

0

19

Exmark 103-0489-03

Bracket, Opc Axle

$27.99

$

In Stock, only 3 left!

0

20

Exmark 103-0503

Bracket,Shifter Slide

$16.99

$

Usually ships in 3-6 days

0

21

Exmark 103-0769-03

Rod Weldment, OPC

$51.99

$

In Stock, Qty 14

0

22

Exmark 103-0815

Grip-Bar, Handle

$13.99

$

In Stock, Qty 5

0

23

Exmark 103-1371

Thumb Latch Asm RH

$36.99

$

In Stock, Qty 5

0

24

Exmark 103-1372

Thumb Latch Asm LH

$36.99

$

In Stock, only 2 left!

0

25

Exmark 103-1796

Cable-Choke

$54.99

$

Usually ships in 3-6 days

0

26

Exmark 103-1797-01

Bracket-Cable, Choke

$9.99

$

In Stock, only 1 left!

0

27

Exmark 103-2193

Link, Blade Engagement

$27.99

$

Usually ships in 3-6 days

0

28

Exmark 103-2194-03

Handle Wld, Upper Ecs

$814.99

$

Usually ships in 3-6 days

0

30

Exmark 103-2513

Asm, Drive Lever RH

$152.99

$

Usually ships in 3-6 days

0

30:1

Exmark 116-4082

Wld,RH Drive Lever

$61.99

$

Usually ships in 3-6 days

0

30:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2514

Asm, Drive Lever LH

$152.99

$

In Stock, only 4 left!

0

31:1

Exmark 116-4081

Wld,LH Drive Lever

$61.99

$

Usually ships in 3-6 days

0

31:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 103-5994

Grip-Handle, Steering

$14.99

$

Usually ships in 3-6 days

0

33

Exmark 109-4931

Asm, Console W/Decals

$319.99

$

Usually ships in 3-6 days

0

34

Exmark 116-2426

Control, Throttle

$52.99

$

Usually ships in 3-6 days

0

35

Exmark 116-4079

Wld,LH OPC Lever

$41.99

$

In Stock, only 2 left!

0

35:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

36

Exmark 116-4080

Wld,RH OPC Lever

$41.99

$

In Stock, only 4 left!

0

36:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

37

Exmark 116-7682

Lever-Shift
(Superseded to 116-8632)

$74.99

$

In Stock, Qty 8

0

38

Exmark 321-14

Screw-HH 1/4-20 X 2 3/4

$5.49

$

In Stock, Qty 12

0

39

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

40

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 20+

0

41

Exmark 322-9

Screw-HH 5/16-18 X 1 3/4

$3.99

$

In Stock, Qty 15

0

42

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

43

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 18

0

45

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

47

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 19

0

48

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

49

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.99

$

Usually ships in 3-6 days

0

50

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 16

0

52

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

53

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 17

0

54

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0
