Volunteer 465 EFI (37AM465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) Pedals & Levers Parts Diagram

4x4 Utility Vehicle

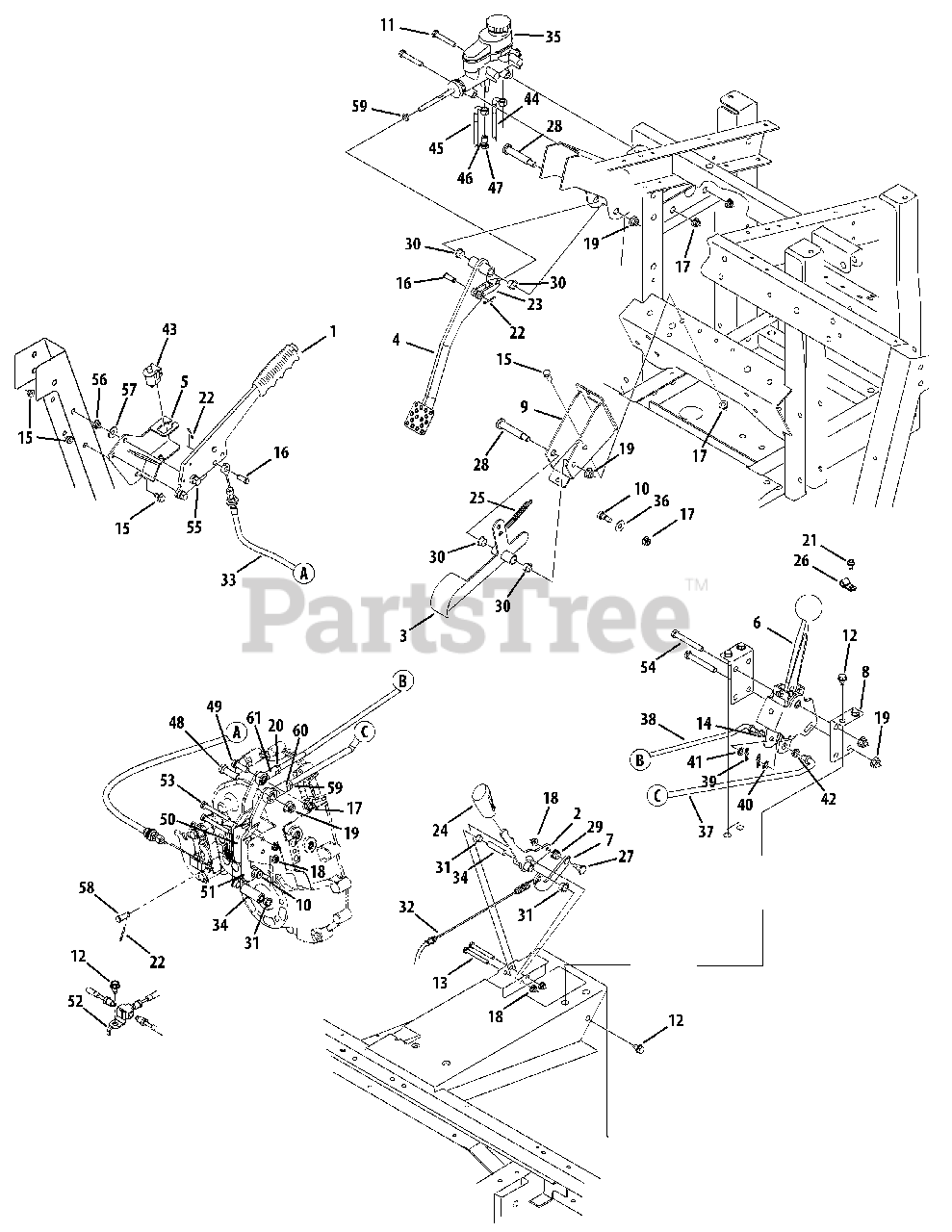

Pedals & Levers Parts Diagram

  • Title

1

Cub Cadet 603-04089

Lvr Assembly, Brake

$300.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04181A

Lvr Assembly, Diff Lock
(Superseded to 607-04181A-0637)

Variations

Cub Cadet 607-04181A-0637

LEVER ASSY:DIFF LOCK - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04287

Lvr Ass’y, Diff Lock, Bench Seat
(Superseded to 607-04287-0637)

Note: If Equipped

Variations

Cub Cadet 607-04287-0637

LEVER ASSY-DIFF LOCK - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04188A

Ped Assembly, Accel
(Superseded to 607-04188D-0637)

Variations

Cub Cadet 607-04188A-0637

PEDAL ASSY ACCELERATOR - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 607-04193B

Ped Assembly, Brake
(Superseded to 607-04193B-0637)

Variations

Cub Cadet 607-04193B-0637

PEDAL ASM-BRAKE - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04208

Brkt Assembly, Mt, Park Brake
(Superseded to 607-04208-0637)

Variations

Cub Cadet 607-04208-0637

BRACKET ASSY:MT - POWDER BLACK (0637)

$85.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 607-04212A

Shft Assembly, Hurst, 4x4
(Superseded to 907-04212A)

Note: Equipped on 4x4 Units

$556.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 759-04141

Knob, Shifter 4x4
(Superseded to 759-04141P)

Note: not shown

$44.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 607-04246

Shft Assembly, Hurst, 4x2

Note: Equipped on 4x2 Units

$549.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 759-04149

Knob, Shifter 4x2
(Superseded to 759-04149P)

Note: not shown

$

$

Not available

7

Cub Cadet 707-04642

Plt, Pawl, Over Center

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04805

Mt, Shft, Cnsol
(Superseded to 707-04805-0637)

Variations

Cub Cadet 707-04805-0637

SHAFT CONSOLE MOUNT - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04823A

Brkt, Mt, Accel Pedal
(Superseded to 707-04823D-0637)

Variations

Cub Cadet 707-04823A-0637

BRACKET-MOUNT ACCEL PEDAL - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04027

Scr, Shldr, .372 X .375, 5/16-18

$16.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-04039

Screw, 5/16-18, 2.00, Gr5, Patch

$5.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0607

Scr, Tt, 5/16-18, 0.500

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0641

Screw, 1/4-20, 2.25, Gr5, Std

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 741-04198

Brg., Flange, .315 ID

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3008

Screw, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-0653

Pin, Clevis, 312 Od X 1.0"

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04063

Nut, Flglk, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, Flglk, 1/4-20, Grf, Nylon

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Flglk, 3/8-16, Grf, Nylon

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3025

Nut, Jam, 5/16-24, Gr5

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

Screw, Tt, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0111

Pin, Cot, 3/32, 1.0

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet 719-3018

Yoke, 5/16-24

$45.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-04735

Hndl, Selct

$21.99

$

In Stock, only 2 left!

0

25

Cub Cadet 732-0611

Spr, Extn, .38 Od X 3.6
(Superseded to 932-0611)

$7.99

$

In Stock, Qty 8

0

26

Cub Cadet 726-04056

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-0974

Scr, Shldr, .375x.380, 1/4-20

$11.99

$

In Stock, only 2 left!

0

28

Cub Cadet 738-1011A

Scr, Shldr, .500 X 2.230, 3/8-16

$8.99

$

In Stock, Qty 9

0

29

Cub Cadet 741-0475

Plastic Bushing .380 Id
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0491

Brg, Flg, Nyliner, .500idx.34lg

$5.49

$

In Stock, Qty 12

0

31

Cub Cadet 741-3073

Brg, Flg, .375 X .580 X .250
(Superseded to 941-3073)

$5.99

$

In Stock, Qty 20+

0

32

Cub Cadet 746-04248

Cbl, Cont, Diff, Lock
(Superseded to 746P04248)

$59.99

$

In Stock, only 2 left!

0

33

Cub Cadet 746-04254

Cbl, Cont, Park, Brake, 4x4
(Superseded to 946-04254)

$75.99

$

In Stock, Qty 8

0

34

Cub Cadet 750-04500

Spcr, Pivot, Diff Lock

$39.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 759-04223

Cyl, Master, Tandem, Hayes

Note: Replaces 761-04023

$183.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0159

Wash, Flat, .349 X .879 X .063

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 747-04528

Link, Shft, F N R
(Superseded to 747-04528A)

$55.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-04529

Link, Shft, Hi Lo, 4x4
(Superseded to 747-04529A)

Note: Equipped on 4x4 Units

$47.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 714-0127

Pin, Cotter, 1/16 x .75

Note: Equipped on 4x4 Units

$

$

Not available

39

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg.

Note: Equipped on 4x2 Units

$4.49

$

In Stock, Qty 16

0

40

Cub Cadet 736-0140

Wash, Flat, .385 X .62 X .063

$7.49

$

In Stock, Qty 13

0

41

Cub Cadet 736-0264

Wash, Flat, .330 X .630 X .0635

$7.49

$

In Stock, only 2 left!

0

42

Cub Cadet 741-04199

Brg, Flg, .377 Id

$12.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 725-3166

Switch
(Superseded to 925-3166)

$17.99

$

In Stock, Qty 20+

0

44

Cub Cadet 727-04132

Hose, Brake, Master Cyl, Front
(Superseded to 927-04132)

$

$

Not available

45

Cub Cadet 727-04138

Hose, Brake, Master Cyl, Rear
(Superseded to 927-04138)

$174.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-04129

Ftg, Banjo Ftg Bolt, M10 x 1.00

$30.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 737-04130

Ftg, Banjo Ftg Crush Wash

$9.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-3005

Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0528

Screw, 5/16-18 x 1.25

Note: Equipped on 4x4 Units

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 607-04210

Lvr., Assembly, Shift, Hi-Lo, 4x4
(Superseded to 907-04210)

Note: Equipped on 4x4 Units

$87.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 607-04211

Lvr., Assembly, Shift, F N R
(Superseded to 607E04211)

$86.99

$

In Stock, only 2 left!

0

52

Cub Cadet 737-04128

Ftg., Tee, -3, 45 Deg Flare

$60.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-1122

Screw, 1/4-20 x 2.50

$7.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-3022

Screw, 3/8-16 x 2.75

$4.99

$

In Stock, only 3 left!

0

55

Cub Cadet 710-3103

Screw, 5/16-18 x 2.00

$4.99

$

In Stock, Qty 16

0

56

Cub Cadet 712-3007

Nut, Jam, 5/16-18

$7.49

$

In Stock, Qty 6

0

57

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$7.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 711-0684

Pin, Clevis

$

$

Not available

59

Cub Cadet 712-3001

Nut, Jam, 3/8-24
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 16

0

60

Cub Cadet 723-04038

Rod, End, 3/8 ID

$63.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 723-04039

Rod, End, 5/16 ID

Note: Equipped on 4x4 Units

$60.99

$

Usually ships in 3-6 days

0
