Volunteer 465 EFI (37BM465D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H013H - 1H294H) Kohler EFI Engine - Crankcase Parts Diagram

4x4 Utility Vehicle

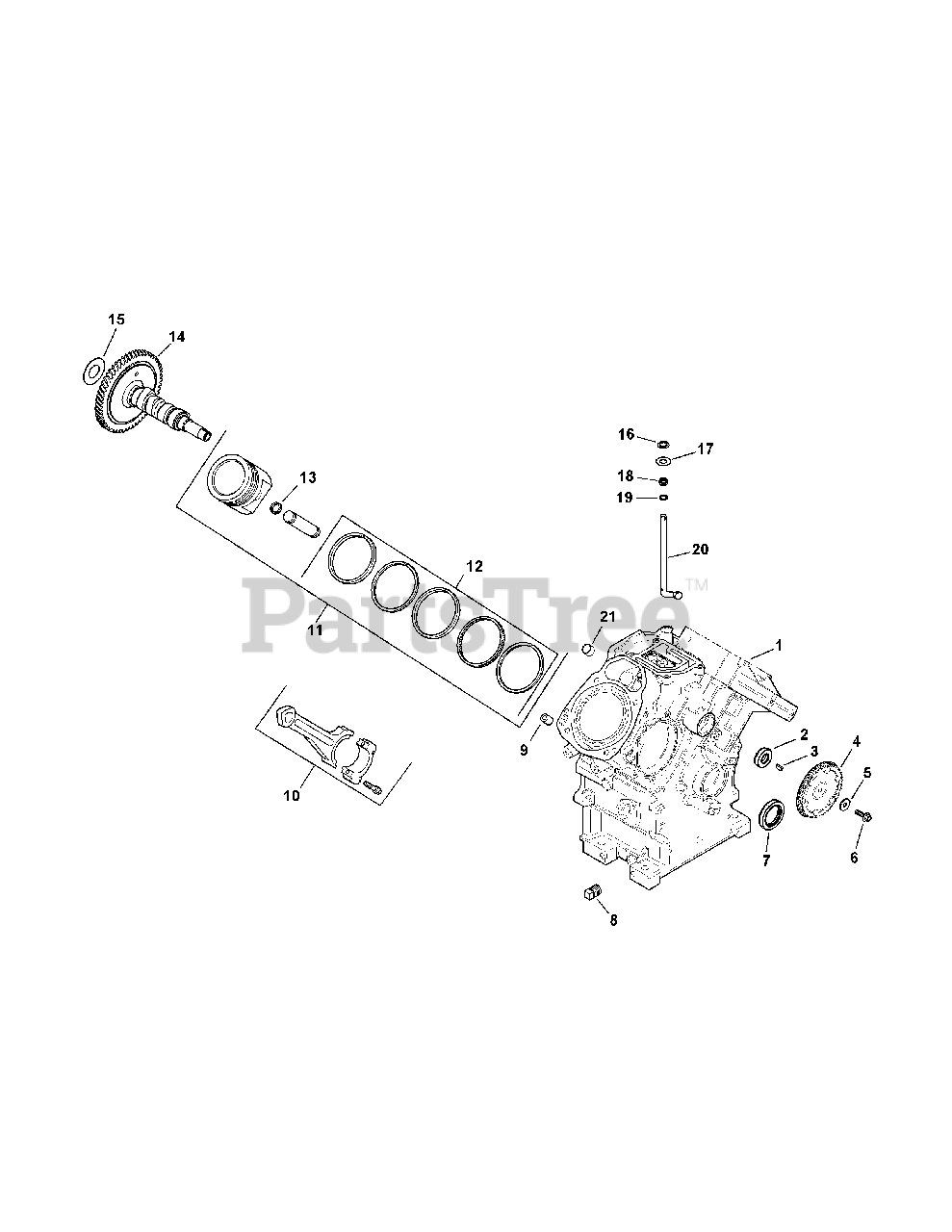

Kohler EFI Engine - Crankcase Parts Diagram

  • Title

1

Cub Cadet N/A

Crankcase

Note: Use Short Block

$

$

Currently unavailable

1

Cub Cadet KH-66-522-10

Short Block

$2476.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-66-032-07-S

Seal, Camshaft

$

$

Not available

3

KH-x-42-2-S

Key, 3/32" x 3/8"

$

$

Not available

4

Cub Cadet KH-66-093-01-S

Sprocket, Camshaft

$34.99

$

In Stock, only 2 left!

0

5

Cub Cadet 736-0173

Washer, Flat 1/4"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-M-651020-S

Screw, Flg, M6 x 1.0 x 20

$2.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-24-032-19-S

Seal, Oil (Helix Lip)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe, 3/8"

$2.49

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-24-067-30-S

Connecting Rod (Std)
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-067-25-S

Connecting Rod (.25)
(Superseded to KH-24-067-29-S)

$75.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-25-874-06

Kit, Piston w/Ring Set (Incl.12,13)
(Superseded to KH-25-874-14-S)

$221.99

$

In Stock, Qty 11

0

11

Cub Cadet KH-24-874-31-S

Kit, Piston w/Ring Set (.08)

$214.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-108-22-S

Ring Set (Std)

$

$

Not available

12

Cub Cadet KH-24-108-23-S

Ring Set (.08)

$

$

Not available

13

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$3.49

$

In Stock, Qty 14

0

14

Cub Cadet KH-66-012-06-S

Kit Camshaft - EFI (Incl KH-25-357-14-S)

$220.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028")

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03")

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032")

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034")

$2.49

$

In Stock, Qty 11

0

15

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036")

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038")

$2.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04")

$2.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

In Stock, Qty 19

0

17

Cub Cadet KH-M-931010-S

Washer, Flat 9 mm

$2.49

$

In Stock, Qty 7

0

18

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-24-468-15-S

Washer, Flat, 11/32"

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$52.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, Qty 9

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: Not shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-LH775-0020

Replacement Engine
(Superseded to KH-LH775-3024)

Note: Not shown

$11007.99

$

Usually ships in 3-6 days

0
