Volunteer 465 Tracker (37AC465D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Kohler Engine Crankcase Parts Diagram

4x4 Utility Vehicle

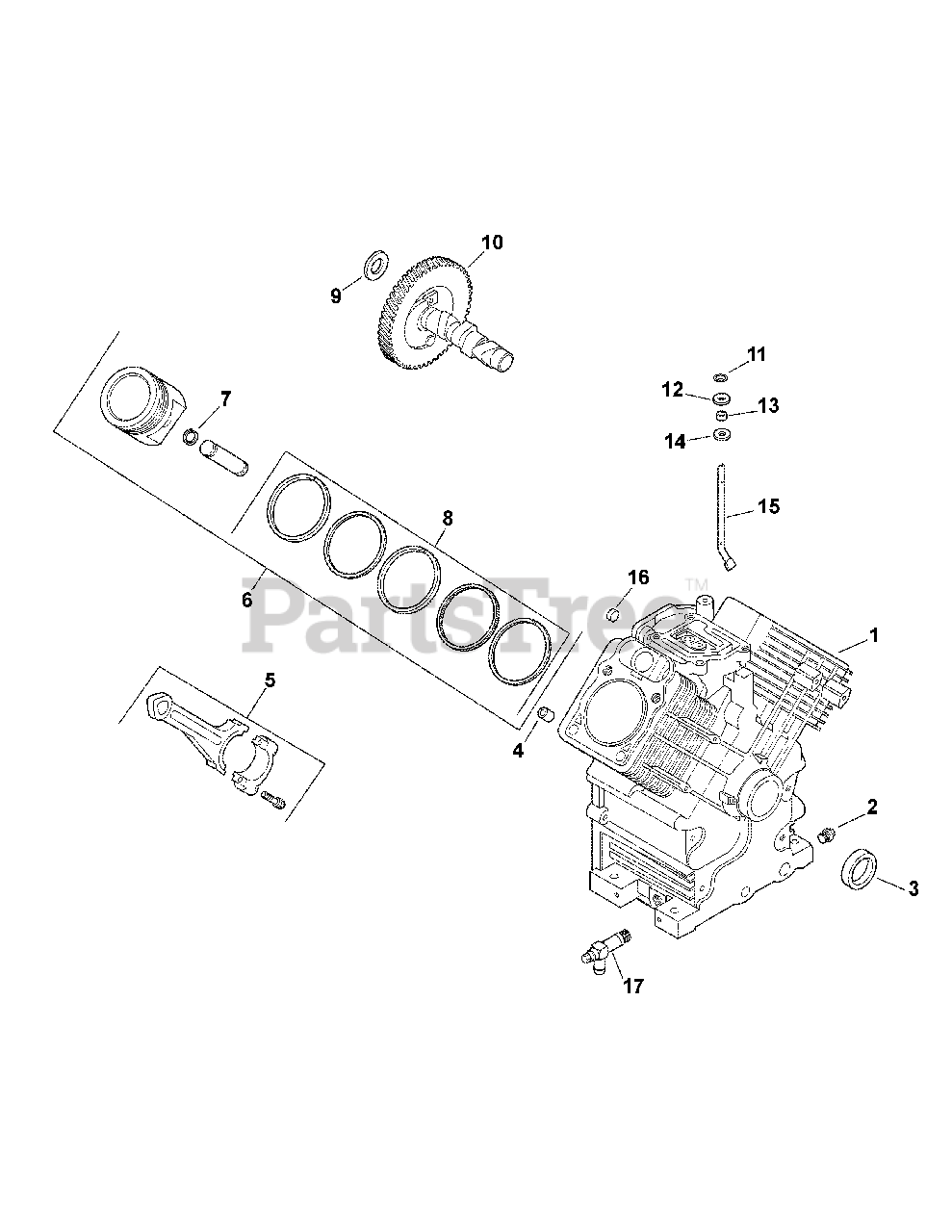

Kohler Engine Crankcase Parts Diagram

  • Title

1

Crankcase

Note: (Use Miniblock KH-24-782-15)

$

$

Not available

1

Cub Cadet KH-24-782-15

Miniblock

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, sq. head 3/8"

$2.49

$

In Stock, Qty 12

0

3

Cub Cadet KH-24-032-19-S

Seal, front oil

$9.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-380-16-S

Pin, loYanmaring

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-24-067-24-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-067-14-S

Connecting Rod (.25)
(Superseded to KH-25-067-05-S)

$75.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-38-S

Piston w/Ring Set (Std.)
(Superseded to KH-24-874-46-S)

Note: (Incl. Ref No. 7,8)

$199.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-14-S

Piston w/Ring Set (.08)
(Superseded to KH-24-874-47-S)

$

$

Not available

6

Cub Cadet KH-24-874-18-S

Piston w/Ring Set (.25)
(Superseded to KH-24-874-48-S)

$

$

Not available

6

Cub Cadet KH-24-874-41-S

Piston w/Ring Set (.50)
(Superseded to KH-24-874-49-S)

$189.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-018-01-S

Retainer, piston pin

$3.49

$

In Stock, Qty 14

0

8

Cub Cadet KH-24-108-22-S

Ring Set (Std. & .08)

$

$

Not available

8

Cub Cadet KH-24-108-24-S

Ring Set (.25)

$

$

Not available

8

Cub Cadet KH-24-108-13-S

Ring Set (.50)
(Superseded to KH-24-108-25-S)

$

$

Not available

9

Cub Cadet KH-12-422-09-S

Shim, camshaft (A.R.) red

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-13-S

Shim, camshaft (A.R.) black

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-07-S

Shim, camshaft (A.R.) white

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-08-S

Shim, camshaft (A.R.) blue

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-10-S

Shim, camshaft - yellow

$2.49

$

In Stock, Qty 11

0

9

Cub Cadet KH-12-422-11-S

Shim, camshaft (A.R.) green

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12-S

Shim, camshaft (A.R.) gray

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Camshaft
(Superseded to KH-24-012-23-S)

$

$

Not available

11

Cub Cadet KH-24-018-09-S

Retainer, ring

$2.49

$

In Stock, Qty 19

0

12

Cub Cadet KH-M-931010-S

Washer, plain 9 mm

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-28-032-09-S

Seal, governor cross shaft

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-468-15-S

Washer, plain 1/4"

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-144-38-S

Shaft, governor cross
(Superseded to KH-24-144-39-S)

$52.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-52-139-09-S

Plug, cup

$4.99

$

In Stock, Qty 9

0

17

Cub Cadet KH-25-462-12-S

Valve, oil drain

Note: (goes in the 2 o’clock position)

$50.99

$

In Stock, only 1 left!

0

Cub Cadet KH-CH640-3016

Engine
(Superseded to KH-CH640-3053)

Note: Not shown

$

$

Not available
