Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Kohler - Air Intake Parts Diagram

4x4 Utility Vehicle

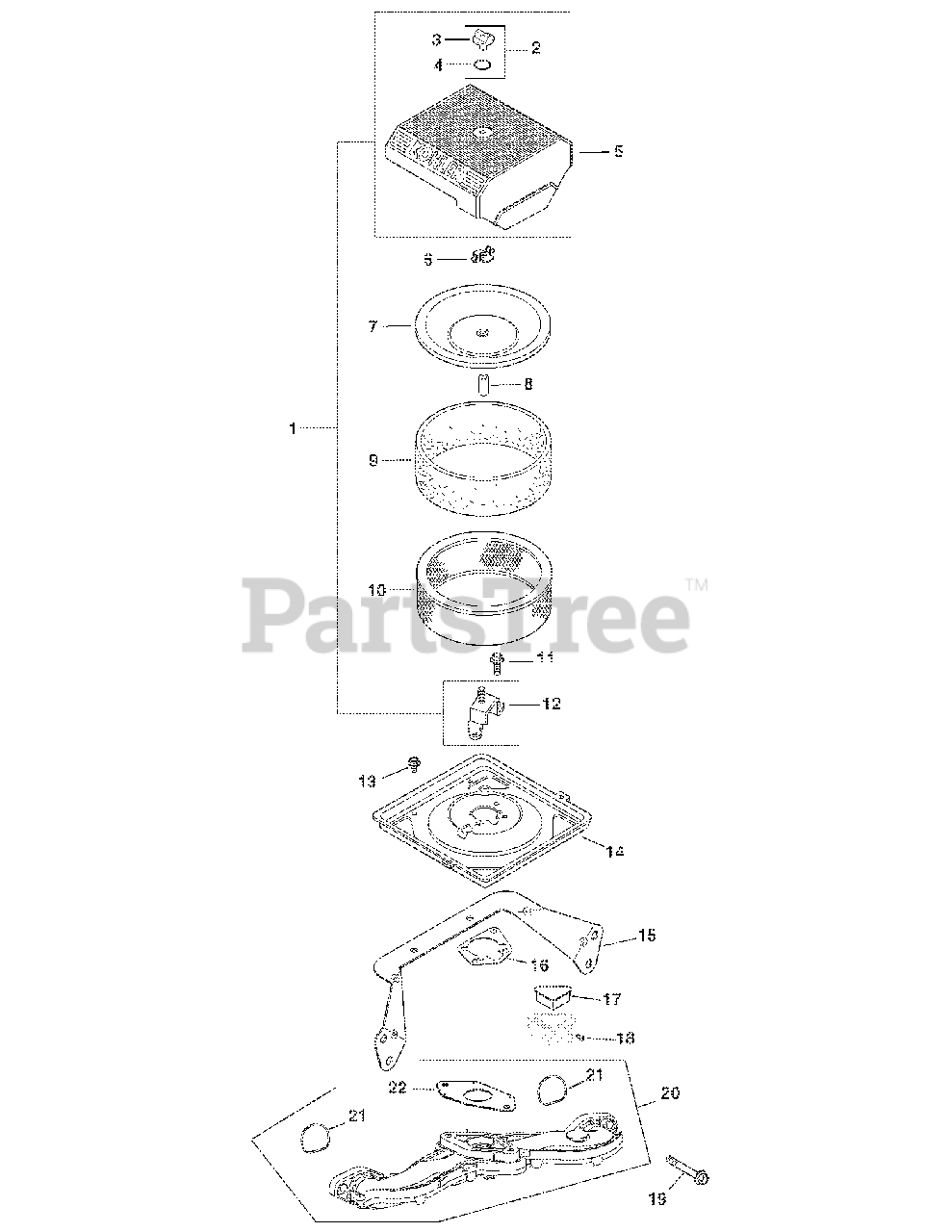

Kohler - Air Intake Parts Diagram

  • Title

1

Cub Cadet KH-24-743-08

Kit, air cleaner cover

$

$

Not available

2

Cub Cadet KH-54-755-01-S

Kit, knob w/seal

$9.49

$

In Stock, Qty 17

0

3

Cub Cadet KH-25-341-04-S

Knob, cover

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-153-20-S

O-ring

$3.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-69-S

Cover, Air Cleaner

$47.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-100-01

Nut, wing

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-096-01

Cover, inner air cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, inner air cleaner

$4.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-083-02

Element, precleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-47-083-03

Element, Air Cleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-086-53-S

Screw, Flange Thrd. Forming M6 x 1.0 x 16

$2.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-24-126-21

Bracket, aircleaner base
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-M-0545010

Screw, flg M5 x 0.8 s 10

$

$

Not available

14

Cub Cadet KH-24-094-39-S

Base, air cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-126-130-S

Bracket, air cleaner base

$10.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 15

0

17

Cub Cadet KH-24-096-17-S

Cover, blower housing
(Superseded to KH-24-096-160-S)

$5.99

$

In Stock, Qty 9

0

18

Cub Cadet KH-25-086-91-S

Screw, Wash. Hd. Tapp. #8-18 x .5

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-M-651040-S

Screw, flg M6 x 1.0 x 40

$2.49

$

In Stock, only 3 left!

0

20

Cub Cadet KH-24-164-54-S

Manifold, Intake (Includes 21, 22)
(Superseded to KH-24-164-93-S)

$232.99

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-24-153-27-S

O-ring, intake port

$3.99

$

In Stock, only 4 left!

0

22

Cub Cadet KH-24-041-53-S

Gasket, carburetor

$3.49

$

Usually ships in 2-5 days

0
