Volunteer 467 Camo (37AC467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Transmission Parts Diagram

4x4 Utility Vehicle

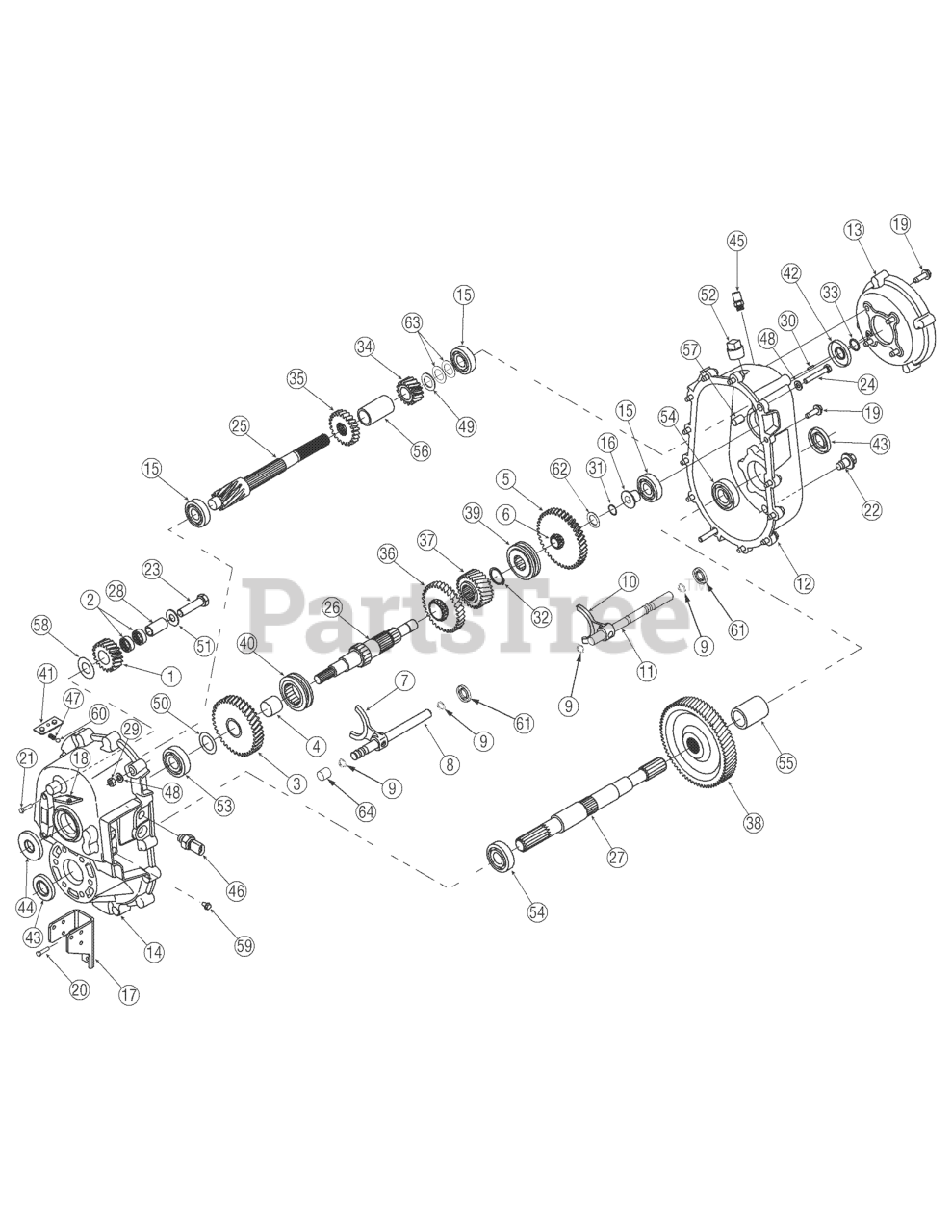

Transmission Parts Diagram

  • Title

1

Cub Cadet 717-04233

Gear, Rev Idler, 19T
(Superseded to 911-04072A)

$89.99

$

In Stock, only 1 left!

0

2

Cub Cadet 741-04169

Brg., Needle,.7500 x 1.0 x .375

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-04237

Gear, Rev, 39T

$148.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-3118

Brg, Slv, 25mm x 28mm x 25mm

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 717-04234

Gear, Lo, 40T

$100.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 741-04208

Brg, Slv, 16 x 18 x 10

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 718-04176

Yoke, Actr.

$77.99

$

In Stock, only 4 left!

0

8

Cub Cadet 711-04454

Shf, Actr, Fwd, Rev

$86.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-0194

Ring, Ret, .56 Dia.

$3.99

$

In Stock, only 3 left!

0

10

Cub Cadet 718-04079B

Yoke, Actr, 4WD

$79.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04453

Shf, Actr, Lo

$

$

Not available

12

Cub Cadet 619-04132

Hsg, lh, 4x4 Uv
(Superseded to 918-06998A)

$552.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 619-04133

Hsg, cvt

$

$

Not available

14

Cub Cadet 619-04143

Hsg Assembly, rh, uv, 4x4
(Superseded to 759-05067A)

$

$

Not available

14

Cub Cadet 710-1633

Plug, M14 x 1.5 x .827

$13.99

$

In Stock, only 2 left!

0

15

Cub Cadet 741-3057

Brg, ball, 20 x 47 x 14, 6204, open
(Superseded to 941-3057)

$35.99

$

In Stock, Qty 10

0

16

Cub Cadet 750-04681

Spcr, Flg,l630 x .787 x .662

$30.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 707-04803

Brkt, shft, trans
(Superseded to 707-04803-0637)

Variations

Cub Cadet 707-04803-0637

BRACKET:SHIFT:TRAN - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 707-04879

Brkt, mnt, brake, transfer Case
(Superseded to 707-04879-0637)

Variations

Cub Cadet 707-04879-0637

BRACKET:MOUNT:BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 710-0602

Scr,tt, 5/16-18, 1.000, hxindwsh

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1260A

Scr, Id, 5/16-18, 0.750, hxindwsh

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-1314A

Scr, soc Hd, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-04617

Scr, plug, m14x1.5 Magnetic

$

$

Not available

22

Cub Cadet 721-04174

Gasket

$

$

Not available

23

Cub Cadet 710-3071

Hhcs, 1/2-13, 2.00, gr8, std

$

$

Not available

24

Cub Cadet 710-3103

Hhcs, 5/16-18, 2.00, gr5, std

$4.49

$

In Stock, Qty 19

0

25

Cub Cadet 711-04444

Shf, input, 4x4 Transfer Case
(Superseded to 959-05014B)

$1872.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 711-04445

Shf, mid, 4x4 Transfer Case
(Superseded to 911-04445A)

$180.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-04446

Shf, output, 4x4 Transfer
(Superseded to 911-04446)

$144.99

$

In Stock, only 1 left!

0

28

Cub Cadet 711-04447

Shf, rev Idler
(Superseded to 911-04447)

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0158

Nut, hexlk, 5/16-18, gra, ctrlk
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

30

Cub Cadet 715-0138

Pin, roll, 1/8 Od, .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 716-0131

Ring, external snap, .625 Dia Shaft
(Superseded to 916-0131)

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 716-04059

Ring, ret, 1.125 Dia Shaft

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 716-04062

Ring, wire, 20mm Shaft

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 717-04231

Gear, low Pinion, 4x4, 15t
(Superseded to 917-04231)

$

$

Not available

35

Cub Cadet 717-04232

Gear, high Pinion, 4x4, 22t
(Superseded to 917-04232)

$56.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 717-04236

Gear, high, 4x4, 33t
(Superseded to 917-04236)

$106.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 717-04332

Gear, final Pinion, 4x4, 22t
(Superseded to 917-04332)

$61.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 717-04333

Gear, final, 4x4, 73t
(Superseded to 917-04333)

$228.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 718-04163

Colr, lo

$55.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 718-04226A

Colr, hi-rev, 4x4

$121.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 718-04240

Plt, detent Spring

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 721-04094

Seal, oil, 20 X 47 X 7

$

$

Not available

43

Cub Cadet 721-04146

Seal, oil, 25x46x7

$12.99

$

In Stock, Qty 10

0

44

Cub Cadet 721-04161

Seal, oil, 20x52x7

$12.99

$

In Stock, Qty 5

0

45

Cub Cadet 723-3021

Creeper Drive Housing Breather

$21.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 725-04386

Sw, neut, saf

$

$

Not available

47

Cub Cadet 732-0424

Spr, 3/8 Od X 1 1/4 Lg

$7.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 736-0264

Wash, flat, .330 x .630 x .0635

$6.49

$

In Stock, only 2 left!

0

49

Cub Cadet 736-0287

Wash, flat, l739 x 1.24 x .06, ht

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0615

Wash, flat, 1.007x1.542x.03, ht

$8.49

$

In Stock, only 3 left!

0

51

Cub Cadet 736-3084

Wash, flat, .51 x 1.12 x .06, ht

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 737-04148

Plug, pipe, 3/4 Nptf

$5.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 741-04044

Brg, ball, .79 ldx 2.05 Od x .6
(Superseded to 941-04044)

$27.99

$

In Stock, only 1 left!

0

54

Cub Cadet 741-3037

Brg, ball, 25x52x15, 6205, open
(Superseded to 941-3037)

$38.99

$

In Stock, Qty 20+

0

55

Cub Cadet 750-04496

Spcr, output Shaft, 4x4

$35.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 750-04502

Spcr, mid Shaft, 4x4

$

$

Not available

57

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

$9.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-3047

Wash, thrust, .757x1.38x.062

$9.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-1652

Scr, tt,1/4-20x.625, hxindwah,ca

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 741-04209

Ball, detent, .375

$8.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 721-0496

Seal, Oil, .583x.875x.188

$9.99

$

In Stock, only 2 left!

0

62

Cub Cadet 736-0256

Washer, Flat, .635x.93x.033 HT
(Superseded to 936-0256)

$6.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 736-0563

Washer, Shim - As Required

$12.99

$

In Stock, only 1 left!

0

64

Cub Cadet 750-04705

Spacer, .566 x .725 x 65
(Superseded to 750-04705A)

$8.49

$

Usually ships in 3-6 days

0
