Volunteer 467 Tracker EFI Camo (37AM467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) EFI Engine Oil Pan & Lubrication Parts Diagram

4x4 Utility Vehicle

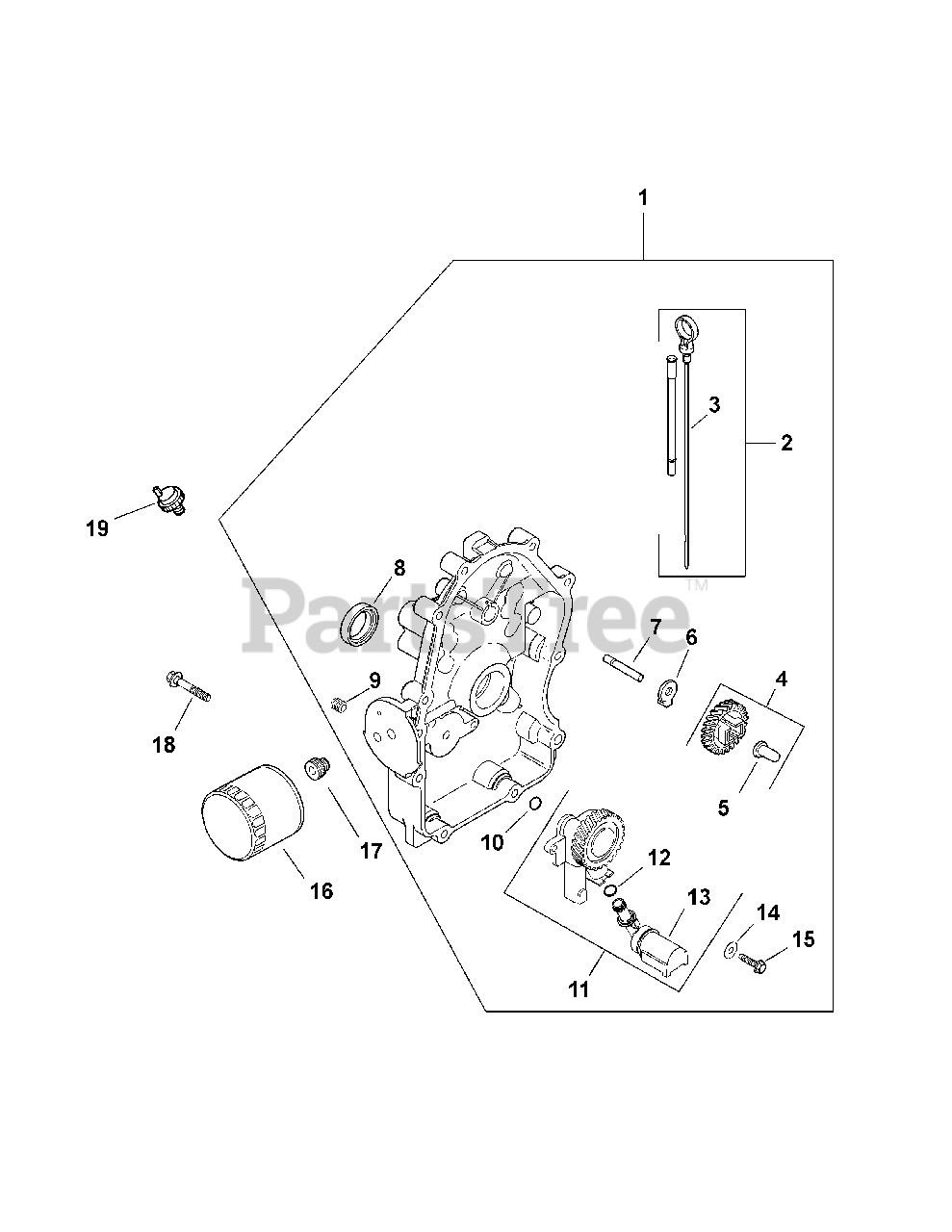

EFI Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-157-S

CLOSURE PLATE ASSEMBLY

Note: (Incl. Ref No. 2-15)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (Incl. Ref No. 3

$35.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-038-10-S

DIPSTICK

$12.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-24-043-12

KIT, GOVERNOR GEAR W/PIN

Note: (Incl. Ref No. 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

PIN, GOVERNOR REGULATING

$

$

Not available

6

Cub Cadet KH-24-448-02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-144-02

SHAFT, GOVERNOR GEAR

$

$

Not available

8

Cub Cadet KH-25-032-06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-153-08

O-RING

$

$

Not available

11

Cub Cadet KH-24-393-51-S

KIT, OIL PUMP ASSEMBLY
(Superseded to KH-24-393-53-S)

Note: (Incl. Ref No. 12, 13)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-RING, OIL PICK-UP

$

$

Not available

13

Cub Cadet KH-24-381-04

PICK-UP, OIL

$

$

Not available

14

Cub Cadet KH-M-631005

WASHER, FLAT 6 MM

$

$

Not available

15

Cub Cadet KH-M-645025-S

SCREW, FLG THD FRM M6X1.0X25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

16

Cub Cadet KH-12-050-01-S

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01

NIPPLE, OIL FILTER
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-24-086-17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-099-27-S

SWITCH, OIL PRESSURE

$15.99

$

In Stock, Qty 6

0
