Volunteer 46B (37AC46BD710) - Cub Cadet 4x4 Utility Vehicle Engine Blower Housing & Baffles Parts Diagram

4x4 Utility Vehicle

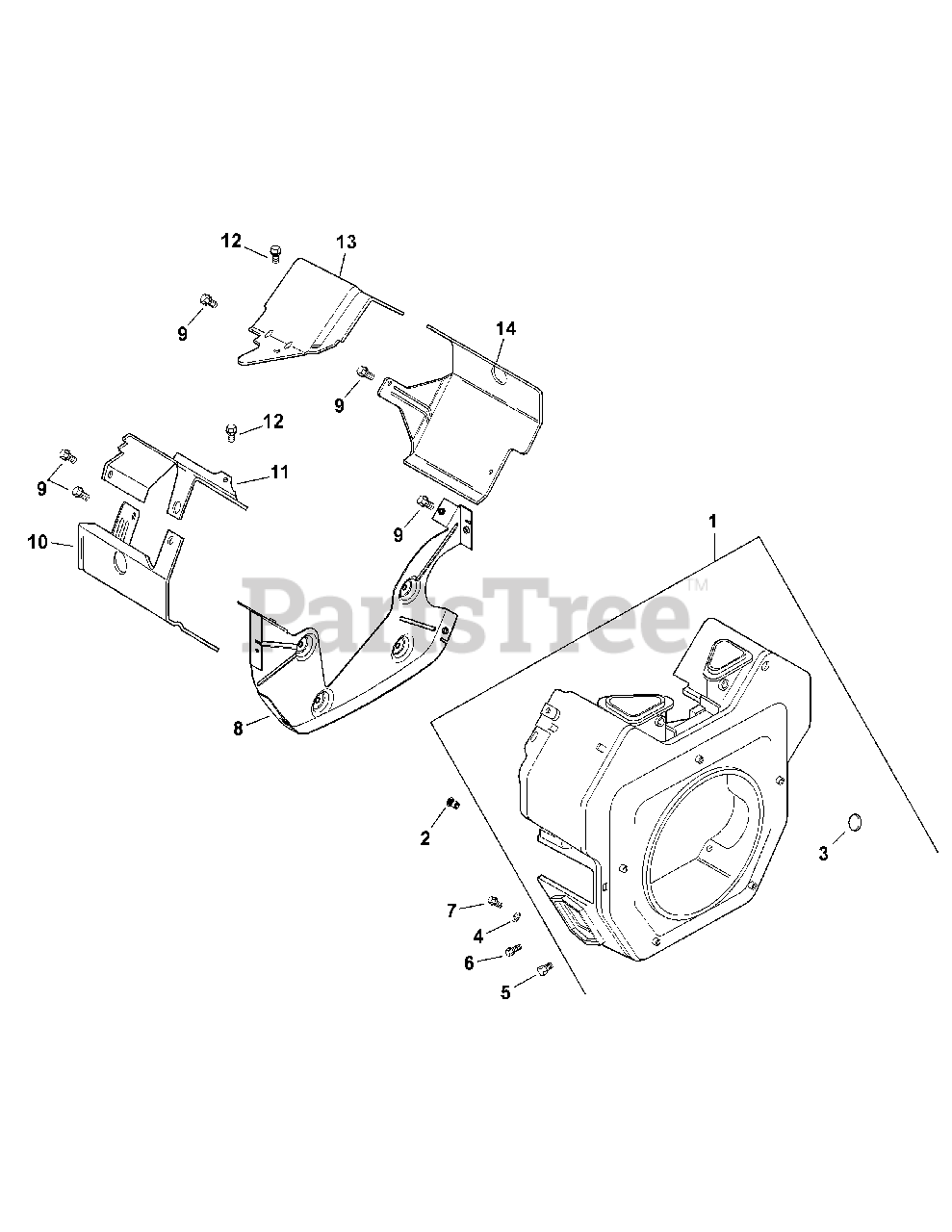

Engine Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-163

Housing, blower

Note: (Includes 2, KH-41-037-10-S)

$

$

Currently unavailable

2

Cub Cadet KH-24-332-01-S

Insert, threaded

$

$

Not available

3

Cub Cadet KH-25-313-06-S

Grommet

$

$

Not available

4

Cub Cadet KH-25-468-07-S

Washer, flat, 7/32"

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-561016-S

Screw, hex. flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-M-545016-S

Screw, hex. flange M5x0.8x16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-M-545020-S

Screw, hex. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-24-146-50-S

Plate, back
(Superseded to KH-24-146-59-S)

Note: (Incl KH-25-154-11-S)

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-645016-S

Scr, hex flang (6) M6x1.0x16

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet KH-24-063-39-S

Baffle, cyl barrel #2 side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-70-S

Baffle, valley - #2 side

$

$

Not available

12

Cub Cadet KH-M-545010

Screw, hex flange M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available

13

Cub Cadet KH-24-063-59-S

Baffle, valley - #1 side
(Superseded to KH-24-063-93-S)

$5.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-58-S

Baffle, cylinder barrel - #1 side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

Cub Cadet KH-41-037-10-S

Nameplate, service

Note: Not Shown

$8.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-154-11-S

Clip, repair (speed nut)

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-086-35-S

Screw, lbd sckt pan M5 x 0.8 x 10

Note: Not Shown

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-468-10

Washer, flat, 7/32"

Note: Not Shown

$

$

Not available
