Volunteer 46E EFI (37AM46ED710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Hood Rack Parts Diagram

4x4 Utility Vehicle

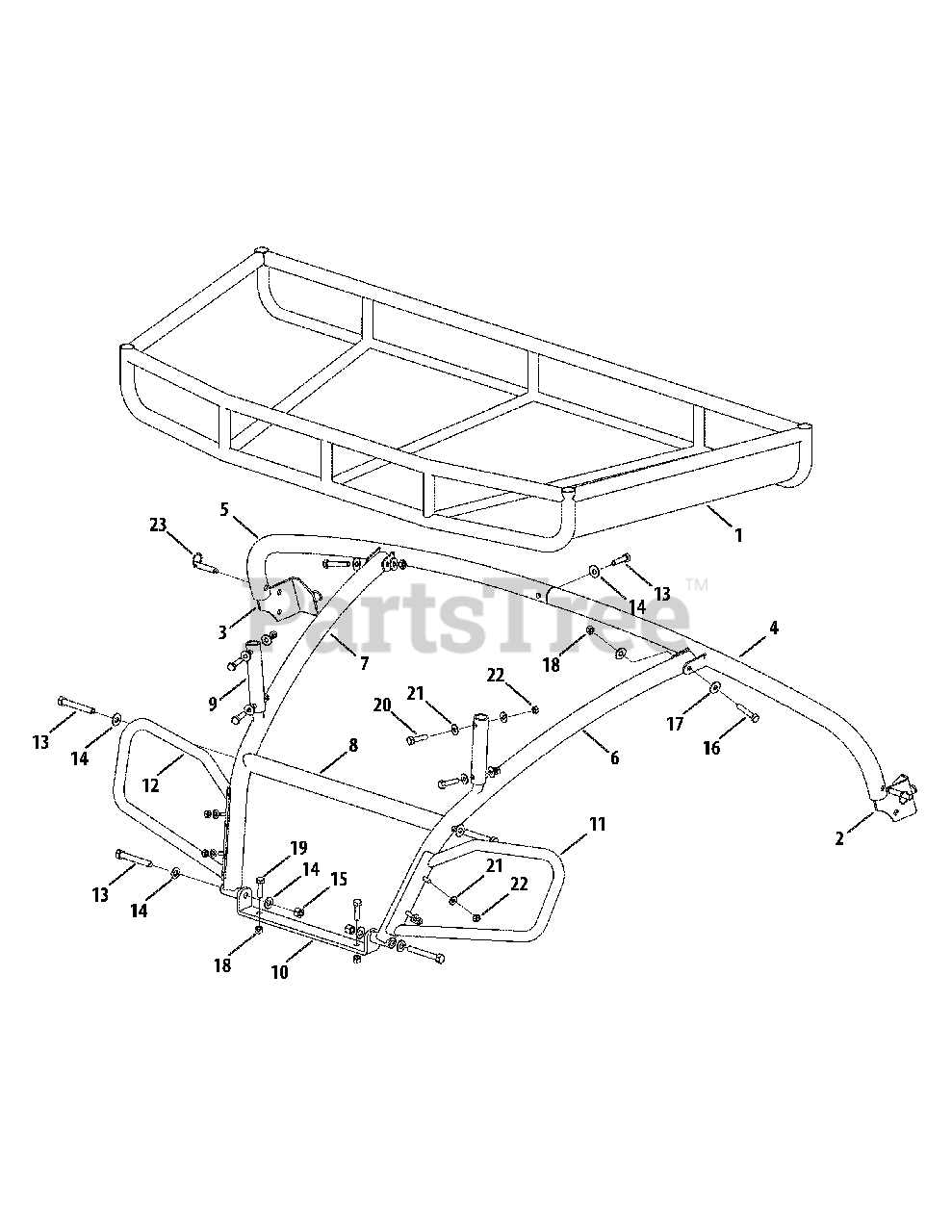

Hood Rack Parts Diagram

  • Title

1

Cub Cadet VL-1016100

Hood Rack

$565.99

$

Usually ships in 3-6 days

0

2

Cub Cadet VL-1016101

Frame Mount - LH

$

$

Not available

3

Cub Cadet VL-1016102

Frame Mount - RH

$

$

Not available

4

Cub Cadet VL-1016103

Transverse Rack Support, Driv

$

$

Not available

5

Cub Cadet VL-1016104

Transverse Rack Support, Pass

$

$

Not available

6

Cub Cadet VL-1016105

Long, Rack Support, Driver

$84.99

$

Usually ships in 3-6 days

0

7

Cub Cadet VL-1016106

Long, Rack Support, Pass

$93.99

$

Usually ships in 3-6 days

0

8

Cub Cadet VL-1016107

Center Brace

$

$

Not available

9

Cub Cadet VL-1016108

Rack Support, Vert

$

$

Not available

10

Cub Cadet VL-1016109

Bumper Hinge Plate

$

$

Not available

11

Cub Cadet VL-1016110

Light Guard, Driver

$

$

Not available

12

Cub Cadet VL-1016111

Light Guard, Pass

$

$

Not available

13

Cub Cadet 710-3022

Hhcs, 3/8-16 x 2.75

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet 736-3050

Wash, Flat, .406 x .812 x .051

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0130

Nut, Hexlk, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3103

Hhcs, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 19

0

17

Cub Cadet 936-0275

Wash, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

18

Cub Cadet 912-0429

Nut, Hexlk, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0376

Hhcs, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

20

Cub Cadet 710-0606

Hhcs, 1/4-20 x 1.50

$4.99

$

In Stock, Qty 15

0

21

Cub Cadet 936-3020

Wash, Flat, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

22

Cub Cadet 712-0324

Nut, Hexlk, 1/4-20

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet VL-1016112

Ball Lock Pin, 3/8" x 2.00

$

$

Not available
