Volunteer 46E Tracker EFI (37AM46ED710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) Axles & Steering Parts Diagram

4x4 Utility Vehicle

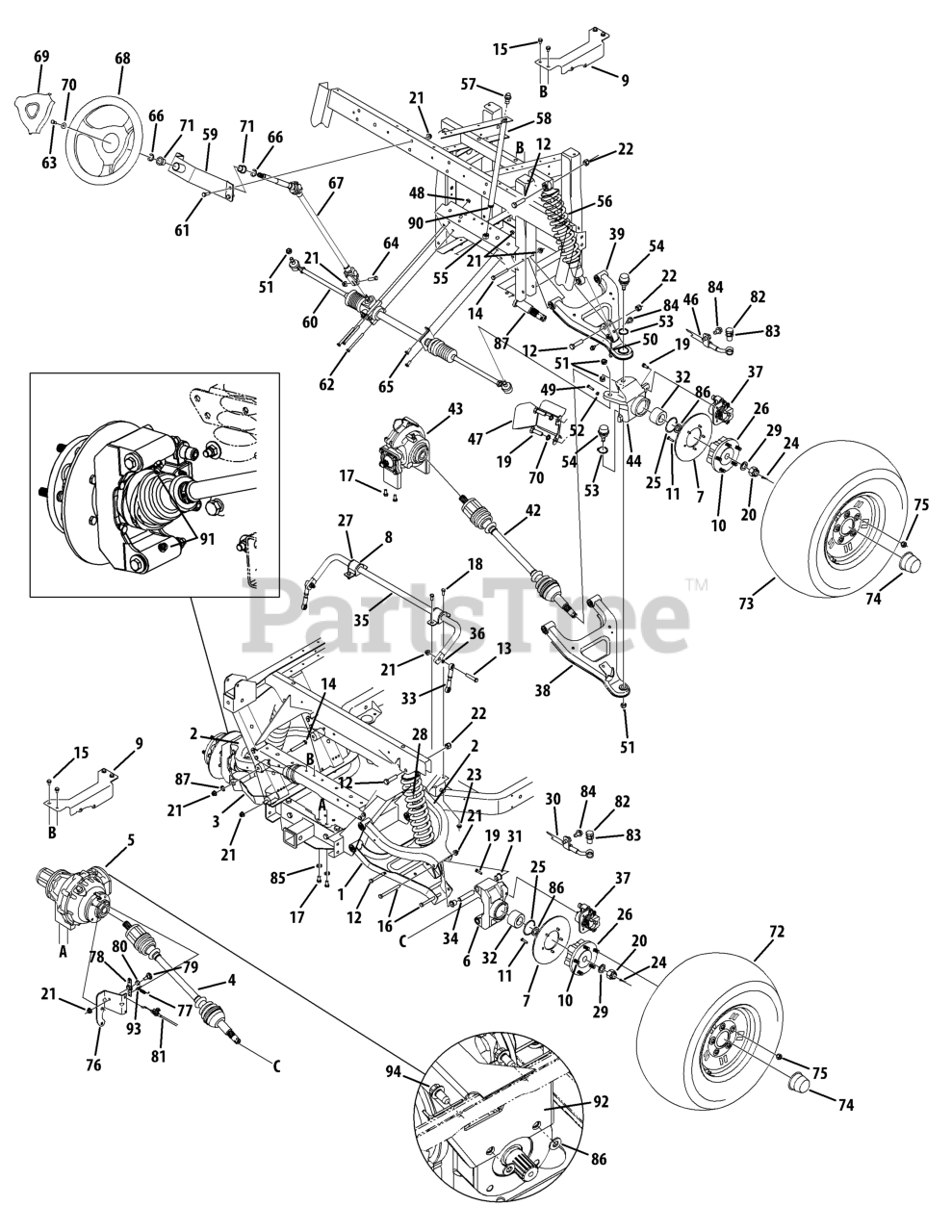

Axles & Steering Parts Diagram

  • Title

1

Cub Cadet 607-04163A

Cont Assembly, lwr, r/rr
(Superseded to 907-04394A)

$442.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04162A

Cont Assembly, rr Upr
(Superseded to 907-04395)

$199.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04169A

Cont Assembly, lwr, l/rr
(Superseded to 907-04396A)

$410.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 611-04063A

Axle Assembly, cv Joint
(Superseded to 911-04063B)

$540.99

$

In Stock, only 2 left!

0

4

Cub Cadet 759-04173

Ring, Hog

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet 731-05082

Boot, CV, Differential

Note: not shown

$88.99

$

In Stock, Qty 7

0

4

Cub Cadet 731-05083

Boot, CV, Wheel

Note: not shown

$88.99

$

In Stock, only 3 left!

0

5

Cub Cadet 618-04236

Diff Assembly, Uv, complete
(Superseded to 959-05016)

$1389.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 921-04005

Seal, Axle Shaft

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 721-0212

Seal, Diff Lock Actuator Shaft .375 ID

Note: Not Shown

$

$

Not available

5

Cub Cadet 721-04143

Seal, Input Shaft 1.0 x 62mm x .375

Note: Not Shown

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 619-04125A

Hsg, rr, mach
(Superseded to 759-05065)

$316.99

$

In Stock, only 3 left!

0

7

Cub Cadet 707-04436A

Disc, brake, 8.00x.188
(Superseded to 707-06937)

$69.99

$

In Stock, only 1 left!

0

8

Cub Cadet 707-04655

Mt, sway Bar
(Superseded to 707-04655-0637)

Variations

Cub Cadet 707-04655-0637

MOUNT:SWAY BAR - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04603A

Mt, rear/diff, 4x4
(Superseded to 707-04603B-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 707-04603A-0637

USE 707-04603B-0637 MOUNT-RR - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

$57.99

$

In Stock, only 1 left!

0

9

Cub Cadet 707-04604

Mt,front/diff, 4x4
(Superseded to 707-04604B-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 707-04604-0637

USE 707-04604B-0637 MOUNT-FRO - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0852

Stud, rib Neck, 7/16-14 X 1.6

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0433

Screw, 1/4-20, .625, gr5, lock

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0489

Screw, 1/2-13, 2.00, gr5, std

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04640

Screw, 3/8-18, 1.75, gr5

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0521

Screw, 3/8-16, 3.00, gr8, std

$4.99

$

In Stock, Qty 15

0

15

Cub Cadet 710-0607

Scr, tt, 5/16-18, 0.500, hxindwsh

Note: 4x4 Units Only

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04637

Screw, 3/8-16, 4.00, gr5

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0216

Screw, 3/8-16, .75, gr5, std

Note: 4x4 Units Only

$3.99

$

In Stock, Qty 17

0

18

Cub Cadet 710-0157

Screw, 5/16-24, .75, gr5, std

$3.99

$

In Stock, Qty 16

0

19

Cub Cadet 710-04639

Screw, m8-1.25, 25.00

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-04109

Nut, slotted, 22x1.5

$49.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-04065

Nut, flglk, 3/8-16, grf, nylon

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3083

Nut, hexlk, 1/2-13, grb, nylon

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04063

Nut, flglk, 5/16-18, grf, nylon

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0162

Pin, cot, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 716-04055

Ring, ret, dho-60

$12.99

$

In Stock, only 1 left!

0

26

Cub Cadet 618-04489

Hub, Wheel
(Superseded to 918-04489)

$166.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-05352

Bush, sway Bar

$69.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-04423

Shabs, 5.0 Stroke, rr
(Superseded to 732-04423B)

$210.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-0291

Wash, flat, .88 X 1.38 X .125, ht

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 727-04137

Hose, brake, rear, right
(Superseded to 927-04137)

$133.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 727-04136

Hose, brake, rear, left
(Superseded to 927-04136)

Note: Not Shown

$122.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-1142A

Brg, flg, .625 X .750 X .750 Lg

$9.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-04166

Brg, dble Row, 60x30x37

$257.99

$

In Stock, only 1 left!

0

33

Cub Cadet 747-04514

Rod, cont, .375x3.886

$92.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-04358B

Tube, pivot, rr/cont Arm

$35.99

$

In Stock, Qty 8

0

35

Cub Cadet 750-04487A

Bar, sway, rr

$226.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 761-04019

Brake, hyd, caliper
(Superseded to 759-04222)

$277.99

$

In Stock, only 2 left!

0

37

Cub Cadet 759-04116

Pads, Brake
(Superseded to 959-04116)

Note: (not shown) Services one caliper

$116.99

$

In Stock, Qty 9

0

38

Cub Cadet 607-04145A

Cont Assembly,r/frt,lwr
(Superseded to 907-04398A)

$410.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 607-04148

Arm Assembly,r/frt,upr
(Superseded to 907-04397A)

$410.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 607-04152A

Cont Assembly,l/ftr,lwr
(Superseded to 907-04399A)

Note: Not Shown

$410.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 607-04153

Cont Assembly,l/frt,upr
(Superseded to 907-04400A)

Note: Not Shown

$410.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 611-04071A

Axle Assembly,cv Joint,4x4
(Superseded to 911-04071A)

Note: 4x4 Units Only

$572.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 759-04173

Ring, Hog

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0

42

Cub Cadet 731-05082

Boot, CV, Differential

Note: not shown

$88.99

$

In Stock, Qty 7

0

42

Cub Cadet 731-05083

Boot, CV, Wheel

Note: not shown

$88.99

$

In Stock, only 3 left!

0

43

Cub Cadet 618-04316

Diff Assembly,cfd,4x4
(Superseded to 918-04316A)

$1507.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 619-04137A

Hsg,knuckle,r/frt,mach
(Superseded to 619-04137B)

$287.99

$

In Stock, only 3 left!

0

45

Cub Cadet 619-04142A

Hsg,knuckle,l/frt,mach
(Superseded to 619-04142B)

Note: Not Shown

$294.99

$

In Stock, only 2 left!

0

46

Cub Cadet 727-04134

Hose, brake, front, right
(Superseded to 927-04134)

$133.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 727-04133

Hose, brake, front, left
(Superseded to 927-04133)

Note: Not Shown

$124.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 707-04833

Brkt,shld,strg,RH
(Superseded to 707-04833-0637)

Note: 4x4 Units Only

Variations

Cub Cadet 707-04833-0637

BRACKET:SHIELD:STEERING RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 707-04832

Brkt,shld,strg,LH
(Superseded to 707-04832-0637)

Note: Not Shown (4x4 Units Only)

Variations

Cub Cadet 707-04832-0637

BRACKET:SHIELD:STEERING LH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-3004A

Nut, Flg Lk, 5/16-18

$3.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0597

Screw,1/4-20,1.00,gr5,spec

$3.99

$

In Stock, Qty 19

0

50

Cub Cadet 732-04383

Wire, Brake Line

$14.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 712-04086

Nut,nylock,m12x1.25

$8.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 712-3006

Nut,hex,1/4-20,gr5

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 716-04039

Ring,ret,34x1.6

$8.49

$

In Stock, only 3 left!

0

54

Cub Cadet 723-04024

B/jnt,bj14d-6201

$77.99

$

In Stock, Qty 9

0

55

Cub Cadet 726-0205

Clamp,hose,.490 Dia.

Note: 4x4 Units Only

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 732-04424

Shabs,5.0 Stroke,frt
(Superseded to 732-04424B)

$201.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 737-0296

Vent,3/8 Dia

Note: 4x4 Units Only

$11.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 751-10350

Hose,fuel Line

Note: 4x4 Units Only

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 607-04124

Supt Assembly,strg,Wheel

Variations

Cub Cadet 607-04124-0637

SUPPORT ASM:STRG W - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

$101.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 617-04041

Steering Assembly
(Superseded to 617-04041P)

$

$

Not available

60

Cub Cadet 759-04138

Steering Ball Joint, outer
(Superseded to 759-04178)

Note: not shown

$

$

Not available

60

Cub Cadet 759-04178

Steering Ball Joint, outer

Note: not shown, replaces 759-04138 upon depletion

$

$

Not available

60

Cub Cadet 759-04179

Inner Tie Rod

Note: not shown

$155.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 759-04139

Steering Boot, Drivers side

Note: not shown

$88.99

$

In Stock, only 3 left!

0

60

Cub Cadet 759-04140

Steering Boot, Passenger side

Note: not shown

$96.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 759-04180

Kit-Tie Rod Steering Boots

Note: not shown, replaces 759-04139/759-04140 upon depletion

$

$

Not available

60

Cub Cadet 759-04181

Nut M12 x 1.25

Note: not shown

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-0514

Screw,3/8-16,1.00,gr5,std

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 710-1266

Screw,5/16-18,3.50,gr5,std

$9.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-1880

Screw,5/16-18,.75,gr5,patch

$4.49

$

In Stock, Qty 11

0

64

Cub Cadet 710-3005

Screw,3/8-16,1.25,gr5,std

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 710-3008

Screw,5/16-18,.75,gr5,std

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 716-0231

Ring,e Type,.750

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 717-04200

Shft,strg

$354.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 731-04514

Wheel,strg,soft Grip 3 Spoke 5/8

$160.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 731-3210

Cvr,Wheel,steering Soft Grip
(Superseded to 731-06459)

$19.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 736-0242

Wash,bell,.340 X .872 X .060

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 741-0339

Brg,flg,.754id X 1.00odx.925
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

72

Cub Cadet 634-04443

Wheel Ass’y, r/compl,25x11-12

$

$

Not available

72

Cub Cadet 634-04445

Wheel Ass’y, r/compl,25x11-12

Note: Camo Units

$483.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 634-04484

Wheel Ass’y, r/compl,25x11-12

Note: Kohler EFI Units

$

$

Not available

72

Cub Cadet 634-04444

Wheel Ass’y, l/compl,25x11-12

Note: Not Shown

$398.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 634-04446

Wheel Ass’y, l/compl,25x11-12

Note: Not Shown (Camo Units )

$453.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 634-04485

Wheel Ass’y, l/compl,25x11-12

Note: Not Shown (Kohler EFI Units)

$438.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 634-04407

Wheel Ass’y, compl,25x10-12

Note: 4x2 Units Only

$376.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 634-04330

Wheel Ass’y, compl,25x10-12, Turf
(Superseded to 934-04330)

$415.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 734-04156

Tire Only, 25x11-12

$276.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 734-04323

Tire Only, 25x10.5-12

Note: 4x2 Units Only

$138.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04216B

Wheel Ass’y, r/compl,25x10-12
(Superseded to 934-04216B)

$405.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04246B

Wheel Ass’y, r/compl,25x10-12
(Superseded to 634Z04246B)

Note: Camo Units

$368.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04486

Wheel Ass’y, r/compl,25x10-12
(Superseded to 934-04486)

Note: Kohler EFI Units

$438.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04217B

Wheel Ass’y, l/compl,25x10-12
(Superseded to 934-04217B)

Note: Not Shown

$364.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04247B

Wheel Ass’y, l/compl,25x10-12
(Superseded to 934-04247B)

Note: Not Shown (Camo Units )

$421.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04487

Wheel Ass’y, l/compl,25x10-12

Note: Not Shown (Kohler EFI Units)

$406.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04407

Wheel Ass’y, compl,25x10-12

Note: 4x2 Units Only

$376.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-04330

Wheel Ass’y, compl,25x10-12, Turf
(Superseded to 934-04330)

$415.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 734-04157

Tire Only, 25x10-12

$258.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 734-04323

Tire Only, 25x10.5-12

Note: 4x2 Units Only

$138.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 707-04740

Cap, Wheel UV

$34.99

$

In Stock, only 1 left!

0

74

Cub Cadet 707-05007

Cap, Wheel UV, Chrome

Note: Kohler EFI Units

$32.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 712-3050

Nut, lug, 7/16-14

$9.49

$

In Stock, Qty 20+

0

75

Cub Cadet 712-04127

Nut, lug, 7/16-14, Chrome

Note: Kohler EFI Units

$8.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 707-04693

Bracket:Diff Cable

Variations

Cub Cadet 707-04693-0637

USE 707-04693A-0637 BRACKET-D - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 732-0418

Spr, ext, .38od x 2.10

$9.99

$

In Stock, only 1 left!

0

78

Cub Cadet 607-04216A

Lvr, Ass’y, Diff Lock

$58.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 738-0507B

Scr, shldr, .500 dia x .434

$4.49

$

In Stock, Qty 20+

0

80

Cub Cadet 741-0491

Brg, flg, nyliner, .500id x .34lg

$4.99

$

In Stock, Qty 20+

0

81

Cub Cadet 746-04248

Cbl, cont, diff, lock
(Superseded to 746P04248)

$52.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 737-04129

Ftg, banjo ftg bolt, M10x1.00

$26.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 737-04130

Ftg, banjo ftg crush wash,10mm

$7.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-0599

Screw, tt, 1/4-20x.500

$3.99

$

In Stock, Qty 20+

0

85

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0275

Wash, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 711-04401

Axle, Frt, 4x2

Note: 4x2 Units Only

$137.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 723-3021

Creeper Drive Housing Breather

Note: Not Shown

$21.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 737-04149

Adap, Diff, Breather

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 726-04041

Clamp, Hose, Adj.

Note: 4x4 Units Only

$5.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 737-04091

Ftg, Grs

$7.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 707-05018

Brkt., Diff, rr
(Superseded to 707-05018B-0637)

Variations

Cub Cadet 707-05018-0637

BRACKET SHIELD - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 715-04011

Pin, Roll

$4.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 710-0623

Scr., tt, 3/8-16 x .750

$3.99

$

In Stock, Qty 10

0

Cub Cadet 723-04024

Ball Joint - A Arm

Note: Not shown

$77.99

$

In Stock, Qty 9

0

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 759-04178

Kit-Outer Tie Rod

Note: Not shown

$

$

Not available

Cub Cadet 759-04179

Kit-Inner Tie Rod

Note: Not shown

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-04180

Kit-Tie Rod Boots

Note: Not shown

$

$

Not available

Cub Cadet 759-04181

Kit-Nut M12 x 1.25

Note: Not shown

$3.99

$

Usually ships in 3-6 days

0
