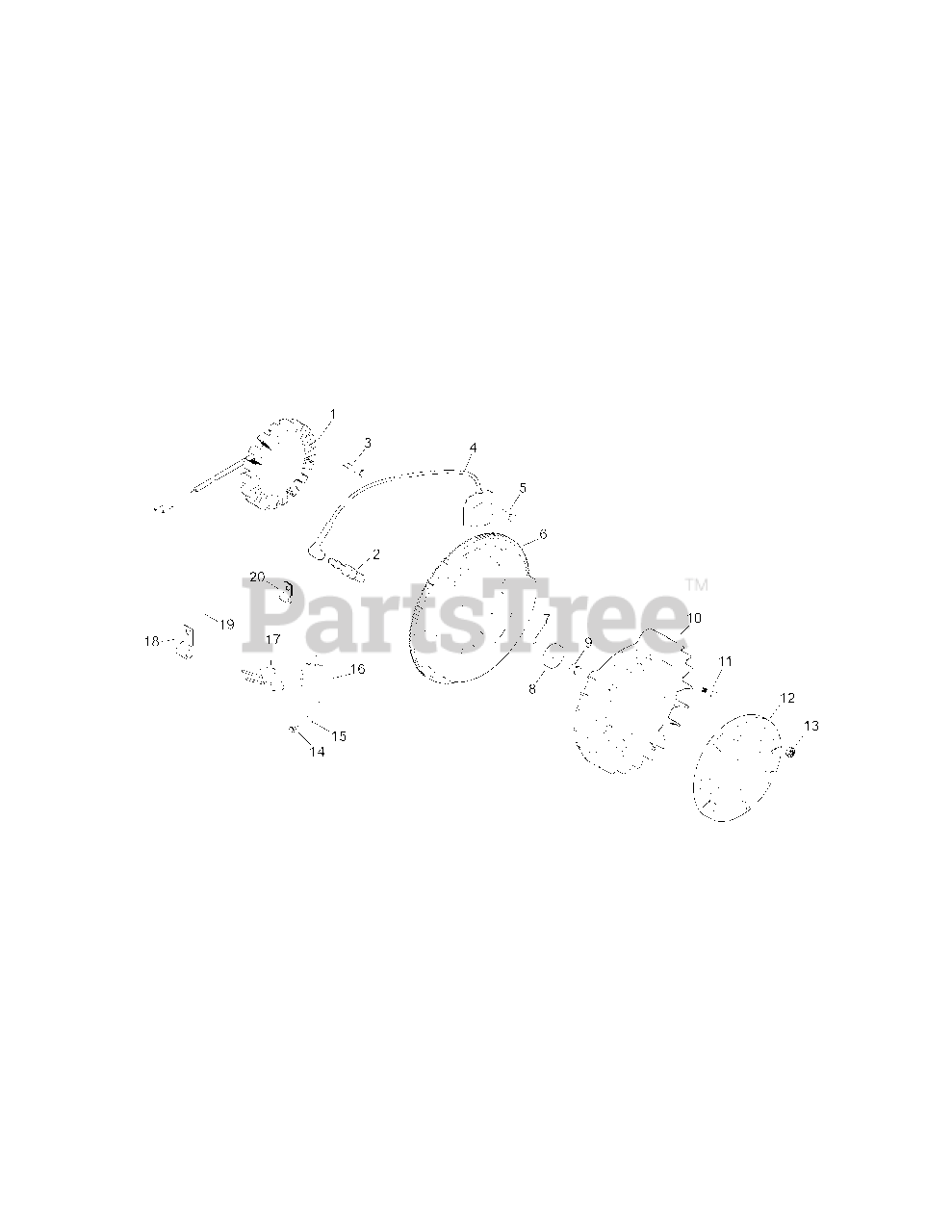

Volunteer 475 FIS (37BB475H010) - Cub Cadet 4x2 Utility Vehicle (SN: 1H030Z - 1G192Z) Kohler Engine - Ignition & Electrical Parts Diagram

4x2 Utility Vehicle

Kohler Engine - Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

Kit, 15 amp stator

$149.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-25-132-12-S

Spark Plug (2)

$20.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-548025-S

Screw, hex. cap M5x0.8x25 (2)
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-45-S

Module, ignition (2)
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, hex flange M5x0.8x20 (4)
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

6

Cub Cadet KH-24-025-55-S

Flywheel

$

$

Not available

7

KH-x-42-15

Key, 3/16" x 5/8"

$

$

Not available

8

Cub Cadet KH-12-468-03

Washer, flat 13/32"

$

$

Not available

9

Cub Cadet KH-12-086-14

Screw, hex flange M10x1.5x46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-157-15-S

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-25-086-47

Bolt, shoulder (4)

$

$

Not available

12

Cub Cadet KH-24-162-03

Screen, grass

$

$

Not available

13

Cub Cadet KH-24-018-03-S

Retainer, (3)

$2.49

$

In Stock, Qty 10

0

14

Cub Cadet KH-24-086-18

Screw, phillips hd. 11-16x7/8" (2)

$

$

Not available

15

KH-x-25-92

Washer, plain 3/16" (2)

$

$

Not available

16

Cub Cadet KH-41-403-10-S

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-25-155-41-S

Connector (3 contact)

$7.99

$

In Stock, Qty 11

0

18

Cub Cadet KH-235173

Clip, cable

$

$

Not available

19

KH-x-25-63

Washer, plain 1/4"

$

$

Not available

20

Cub Cadet KH-12-154-01

Clamp, insulated

$

$

Not available

Cub Cadet KH-25-086-91-S

Screw, tapping (2)

Note: Not shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, ground strap
(Superseded to KH-24-518-12-S)

Note: Not shown

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-468-07-S

Washer, flat

Note: Not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-171-S

Harness, wiring

Note: Not shown

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-03-S

Tie, wire (2)

Note: Not shown

$2.49

$

Usually ships in 2-5 days

0
