Volunteer 475 FIS Green (37BB475H710) - Cub Cadet 4x2 Utility Vehicle (SN: 1I029Z - 1H020Z) Kohler CH620-3023 Air Intake & Filtration Parts Diagram

4x2 Utility Vehicle

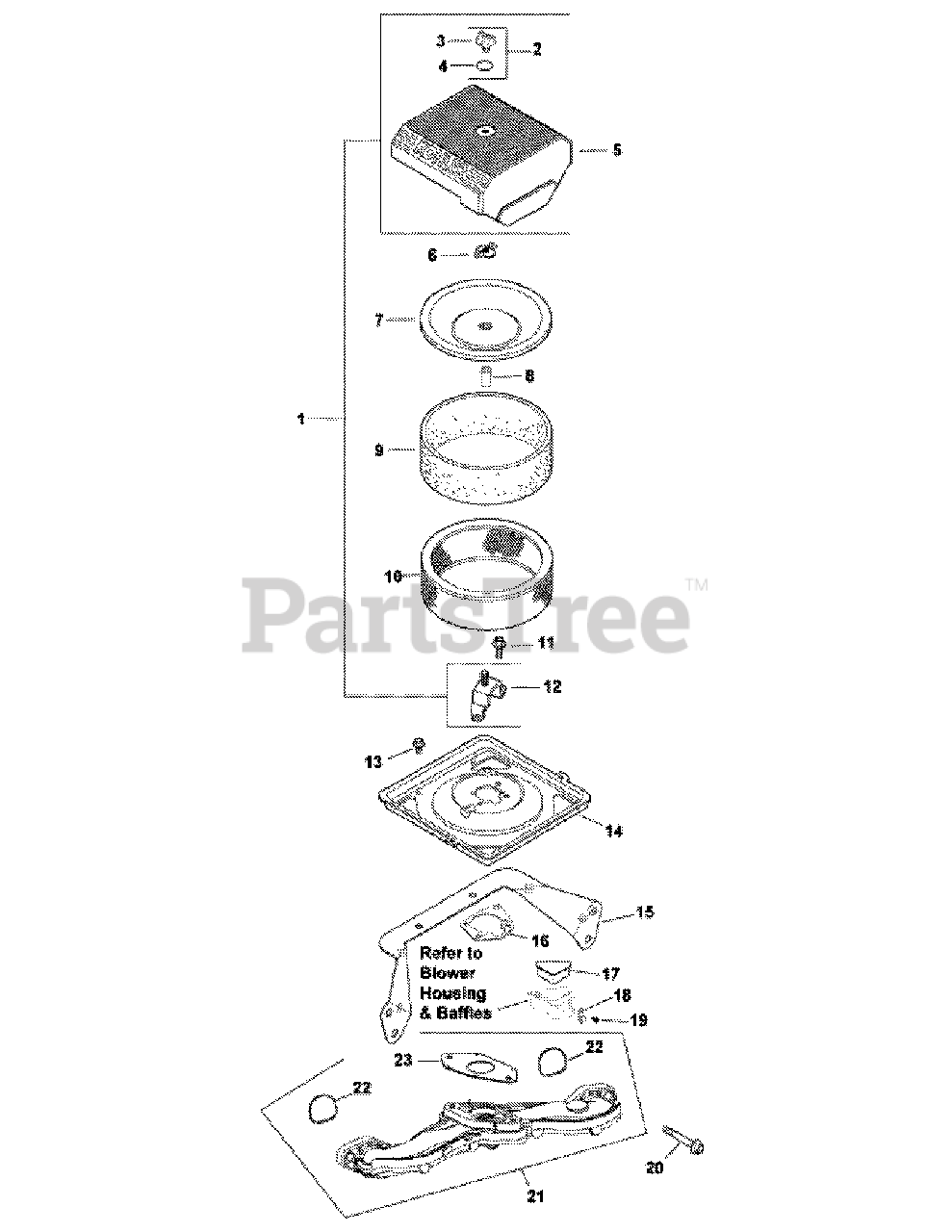

Kohler CH620-3023 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-24-743-08

Kit, Air Cleaner Cover (Includes 2-5,12)

$

$

Not available

2

Cub Cadet KH-54-755-01-S

Kit, Knob W/Seal(Includes 3,4)

$9.49

$

In Stock, Qty 17

0

3

Cub Cadet KH-25-341-04-S

Knob, Cover

$7.99

$

In Stock, Qty 12

0

4

Cub Cadet KH-24-153-20-S

O-Ring

$2.49

$

In Stock, Qty 12

0

5

Cub Cadet KH-24-096-69-S

Cover, Air Cleaner

$47.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-100-01

Nut, Wing

$3.99

$

In Stock, Qty 12

0

7

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

In Stock, Qty 17

0

9

Cub Cadet N/A

Element, Precleaner

$

$

Currently unavailable

10

Cub Cadet KH-47-883-03-S1

Filter Element, Air Cleaner & Precleaner (Low)
(Superseded to 4788303S1C)

$27.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-24-086-53-S

Screw, Flg Thd Frm M6X1.0X16

$2.49

$

In Stock, Qty 10

0

12

Cub Cadet KH-24-126-21

Bracket, Air Cleaner
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5X.8X10

$

$

Not available

14

Cub Cadet KH-24-094-39-S

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.49

$

In Stock, Qty 9

0

17

Cub Cadet KH-24-096-17-S

Cover, Blower Housing
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, Qty 6

0

18

Cub Cadet KH-25-154-04-S

Clip, Cable

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-086-91-S

Screw, Wsh Hd Tap #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-M-651040-S

Screw, Flg M6X1.0X40

$2.49

$

In Stock, Qty 13

0

21

Cub Cadet KH-24-164-93-S

Kit, Intake Manifold (Includes 21,22)
(Superseded to KH-24-164-276-S)

$203.99

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-24-153-27-S

O-Ring, Intake Port

$3.49

$

In Stock, Qty 9

0

23

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 7

0

Cub Cadet KH-25-072-14-S

Stud M8X1.25X33, Exhaust
(Superseded to KH-25-072-24-S)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0
