Volunteer 475 FIS Green (37BB475H710) - Cub Cadet 4x2 Utility Vehicle (SN: 1I029Z - 1H020Z) Kohler CH620-3023 Oil Pan & Lubrication Parts Diagram

4x2 Utility Vehicle

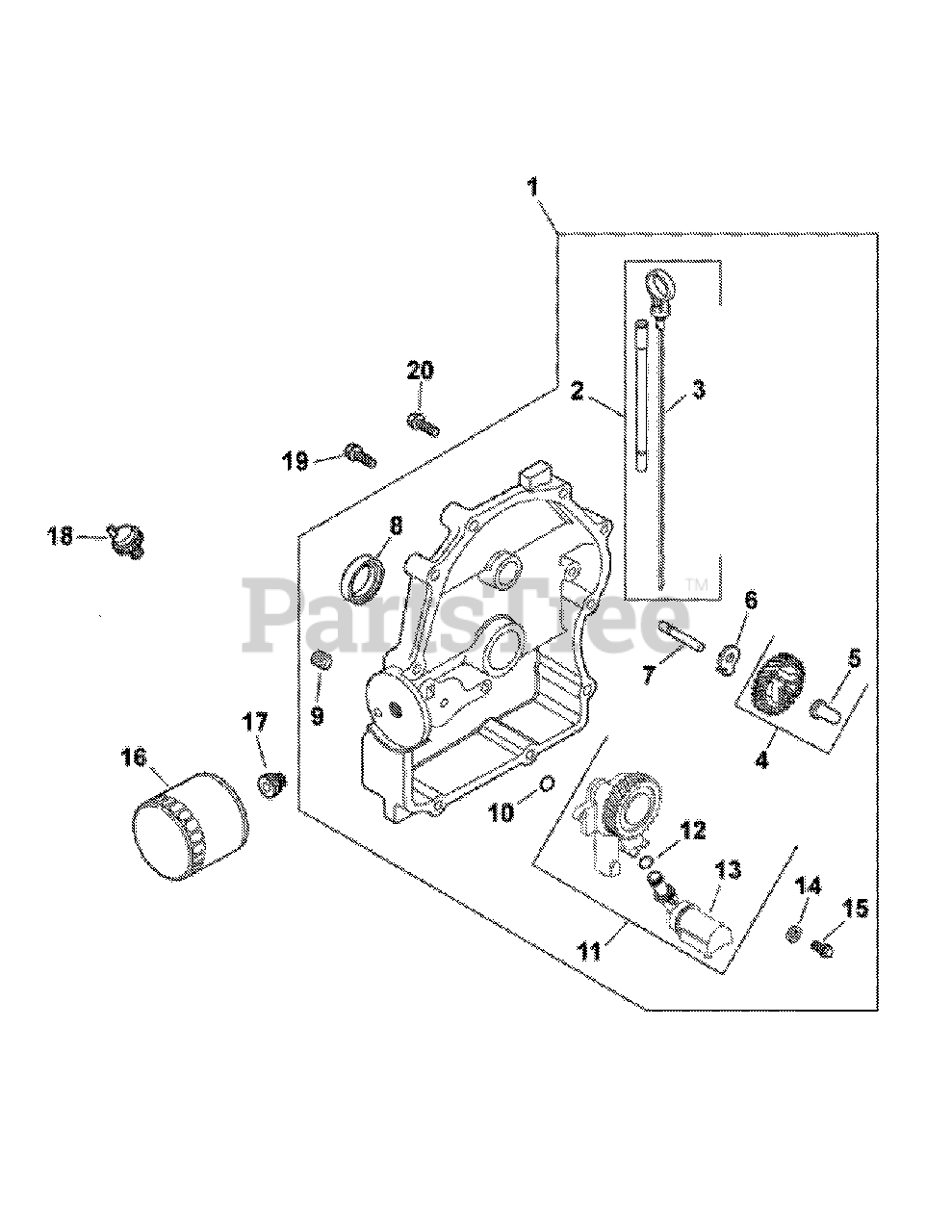

Kohler CH620-3023 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-167-S

Plate, Closure & Bearing (includes 2-15)
(Superseded to KH-24-009-227-S)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

Kit, Dipstick & Sipstick Tubes (includes 3)

$35.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-24-043-12

Kit, Governor Hear With Pin (includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-25-032-06-S

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

Plug, Ctsk Pip 1/8"

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

11

Cub Cadet KH-24-393-51-S

Kit, Oil Pump Assembly (includes 12,13)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-Ring, Oil Pick Up

$

$

Not available

13

Cub Cadet KH-24-381-04

Pick Up, Oil

$

$

Not available

14

Cub Cadet KH-M-631005

Washer, Flat 6mm

$

$

Not available

15

Cub Cadet KH-M-645025-S

Screw, Flg Thd Frm M6X1.0X25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, Qty 12

0

16

Cub Cadet KH-12-050-01-S

Filter, Oil

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-086-17-S

Screw, Flg Thd M8X1.25X45

$2.49

$

In Stock, Qty 19

0

20

Cub Cadet KH-24-086-17-S

Screw, Flg Thd M8X1.25X45

$2.49

$

In Stock, Qty 19

0
