Volunteer 476 FIS (37AC476D710) - Cub Cadet 4x2 Utility Vehicle (SN: 1B017G & Before) Kohler Ignition-Electrical Parts Diagram

4x2 Utility Vehicle

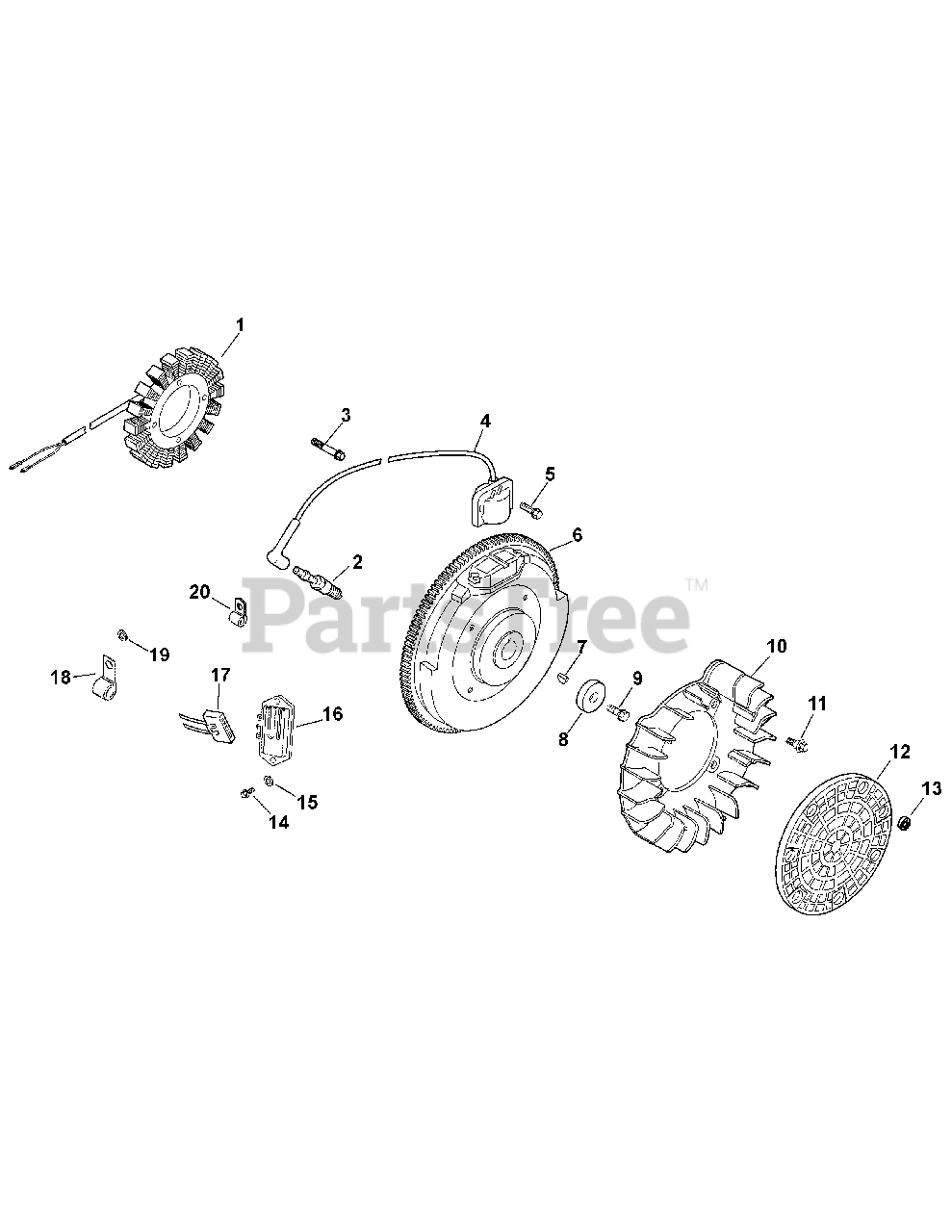

Kohler Ignition-Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-09-S

Kit, 15 amp stator
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-25-132-12-S

Spark Plug (2)

$20.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-548025-S

Screw, hex. cap M5x0.8x25 (2)
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-584-01-S

Module, ignition (2)
(Superseded to KH-24-584-45-S)

$116.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, hex. Flange M5x0.8x20 (4)
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-025-04-S

Flywheel

$

$

Currently unavailable

7

Cub Cadet KH-X-42-15-S

Key, 3/16" x 5/8"

$

$

Currently unavailable

8

Cub Cadet KH-12-468-03-S

Washer, flat 13/32"

$

$

Currently unavailable

9

Cub Cadet KH-12-086-14-S

Screw, hex. Flange M10x1.5x46

$

$

Currently unavailable

10

Cub Cadet KH-24-157-01-S

Fan

$

$

Currently unavailable

11

Cub Cadet KH-25-086-47-S

Bolt, shoulder (4)

$

$

Currently unavailable

12

Cub Cadet KH-24-162-03-S

Screen, grass

$

$

Currently unavailable

13

Cub Cadet KH-24-018-03-S

Retainer, (3)

$2.49

$

In Stock, Qty 17

0

14

Cub Cadet KH-24-086-18-S

Screw, phillips hd. 11-16x7/8" (2)
(Superseded to KH-24-086-18)

$

$

Not available

15

Cub Cadet KH-X-25-92-S

Washer, plain 3/16" (2)

$

$

Currently unavailable

16

Cub Cadet KH-41-403-09-S

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$126.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-236602-S

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-235173-S

Clip, cable

$

$

Currently unavailable

19

Cub Cadet KH-X-25-63-S

Washer, plain 1/4"

$

$

Currently unavailable

20

Cub Cadet KH-12-154-01-S

Clamp, insulated

$

$

Currently unavailable

Cub Cadet KH-25-086-91-S

Screw, tapping (2)

Note: not shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, ground strap
(Superseded to KH-24-518-12-S)

Note: not shown

$5.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-468-07-S

Washer, flat

Note: not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-08-S

Harness, wiring

Note: not shown

$

$

Currently unavailable

Cub Cadet KH-25-454-03-S

Tie, wire (2)

Note: not shown

$2.49

$

Usually ships in 2-5 days

0

Note: not shown

$

$

Not available
