Volunteer 486 EFI Yellow (37AM486D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Battery and Dash Panel Accessories Parts Diagram

4x4 Utility Vehicle

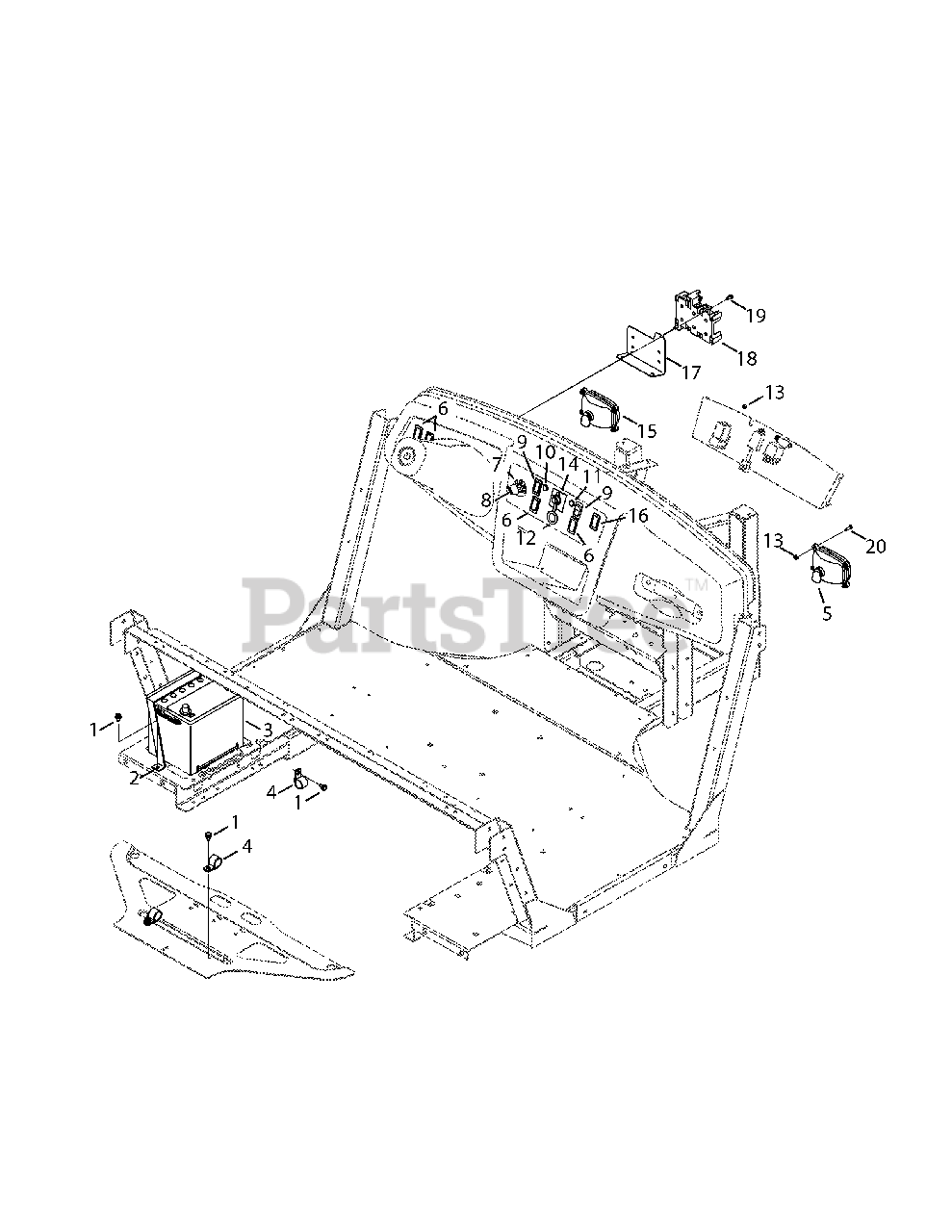

Battery and Dash Panel Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0607

Screw, TT, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

2

Cub Cadet 707-04870B-0637

Bracket, Mt., Battery

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 925-04514

Battery, 450 CCA Wet

$314.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-0475

Clamp

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 925-3161A

Head lamp Bulb

$55.99

$

In Stock, only 3 left!

0

6

Cub Cadet 731-04010

Panel, Plug, Switch

$21.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-1741

Switch, Key, 4 Pos. Delta

$47.99

$

In Stock, Qty 5

0

8

Cub Cadet 925-1745A

Key, Delta, Plastic

$18.99

$

In Stock, Qty 15

0

9

Cub Cadet 725-04352

Switch, 4x4, Rocker

$63.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 925-04530

Lamp, Ind., Green, Incandescent

$40.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-04660

Lamp, Ind., Red, Incandescent

$33.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-2003

Receptacle, Power, 12v

$45.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0102A

Nut, Hex Lock, #10-24

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 925-04022B

Meter, Ind., Hour Flat Face

$155.99

$

In Stock, only 2 left!

0

15

Cub Cadet 625-04036P

Headlight Assembly (Incl. # 21)

$129.99

$

In Stock, only 2 left!

0

16

Cub Cadet 725-06160

Seat Belt Indicator

$113.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 707-04811-0637

Bracket, Fuse Mount

$30.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-05490

Relay, Holder, 3-Way

$77.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3009

Screw, TT, #10-24 x .750

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04625

Harness, Jumper, Neutral Switch 4x4)

Note: Not Shown

$51.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04891A

Harness, Wire, Kohler, EFI

Note: Not Shown

$514.99

$

Usually ships in 3-6 days

0

Cub Cadet 735-04069A

Floor Mat, RH

Note: If Equipped/Not Shown

$132.99

$

Usually ships in 3-6 days

0

Cub Cadet 735-04068A

Floor Mat, LH

Note: If Equipped/Not Shown

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04892

Harness, Fuel Pump

Note: Not Shown

$46.99

$

Usually ships in 3-6 days

0
