Volunteer 48G EFI Red (37AM48GD010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Kohler LH775-3024 Ignition & Electrical Parts Diagram

4x4 Utility Vehicle

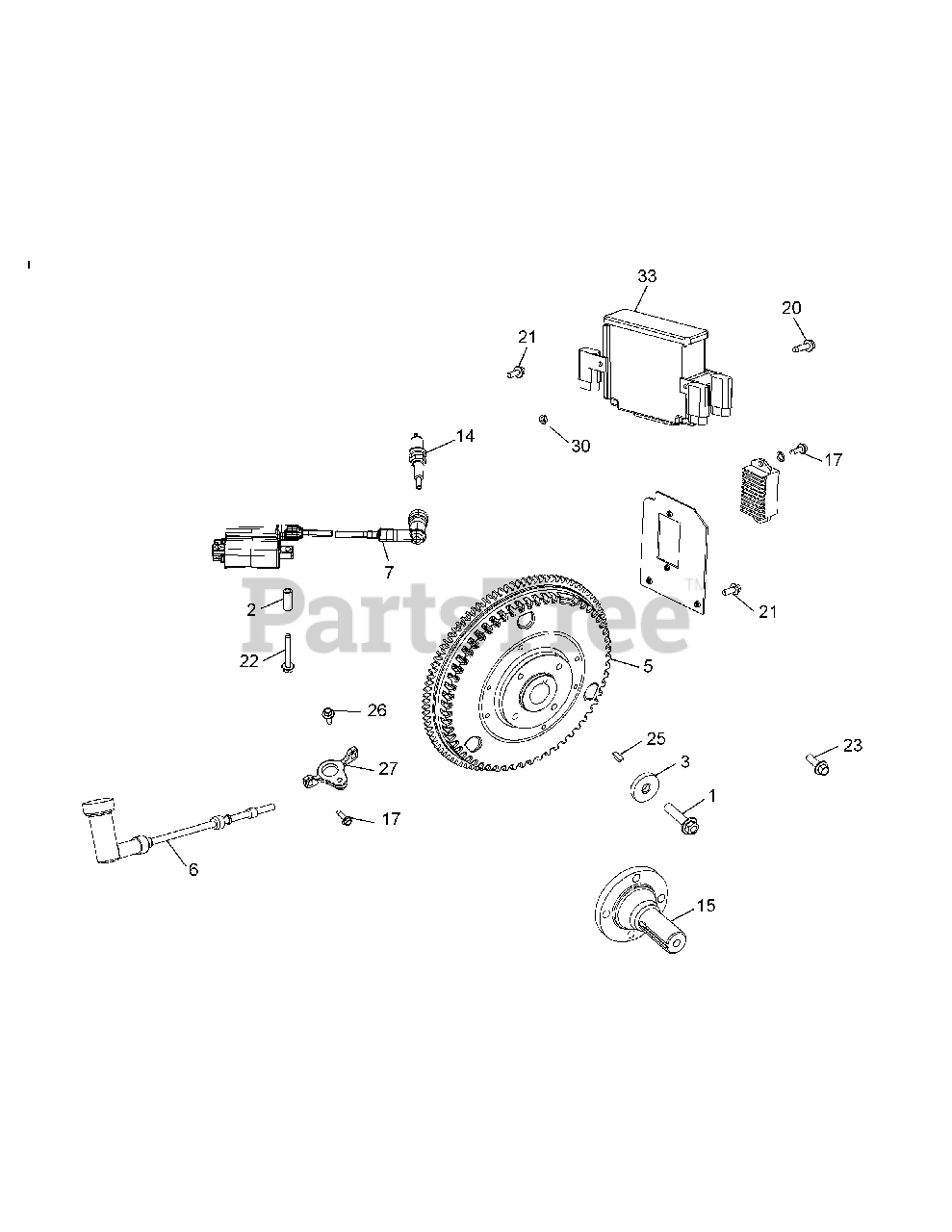

Kohler LH775-3024 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-25-086-361-S

Screw, Flg M10x1.5x45 - (#25086361S)

$4.49

$

In Stock, Qty 18

0

2

Cub Cadet KH-12-112-18-S

Spacer

$

$

Not available

3

Cub Cadet KH-12-468-03

Washer, Flat 13/32"

$

$

Not available

5

Cub Cadet KH-24-025-23-S

Flywheel, Painted

$283.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-131-02-S

Boot, Spark Plug

$69.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-519-02-S

Coil, Ignition (Includes 11)

$216.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-66-132-01-S

Spark Plug (Includes 11)

$8.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-66-144-04-S

Shaft, Front Drive

$

$

Not available

17

Cub Cadet KH-25-086-426-S

Screw

$3.49

$

In Stock, only 1 left!

0

20

Cub Cadet KH-25-086-396-S

Screw,Flg Thd Frm M6x1.0x20

$2.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-M-651016

Screw, Flng M6 x 1.0 x 16

$

$

Not available

22

Cub Cadet KH-M-670045-S

Screw, Thrd Frm M6x1.0x45

$6.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-M-839025-S

Screw, Flg M8x1.25x25

$2.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-X-42-15

Key, 3/16" X 5/8"

$

$

Not available

26

Cub Cadet KH-25-086-404-S

Screw, Thread Forming

$3.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-24-126-131-S

Bracket, Speed Sensor

$14.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-25-100-18-S

Nut, Mach Screw #10-32 Grd 2

$6.49

$

Usually ships in 2-5 days

0

33

Cub Cadet KH-66-584-12-S

Module, Engine Management

$

$

Not available

Cub Cadet KH-66-176-23-S

Harness Assembly

Note: (not shown)

$695.99

$

Usually ships in 2-5 days

0
