Volunteer WT 747 EFI (37AM486M010) - Cub Cadet 4x4 Utility Vehicle (2018) Electric Bed Lift Parts Diagram

4x4 Utility Vehicle

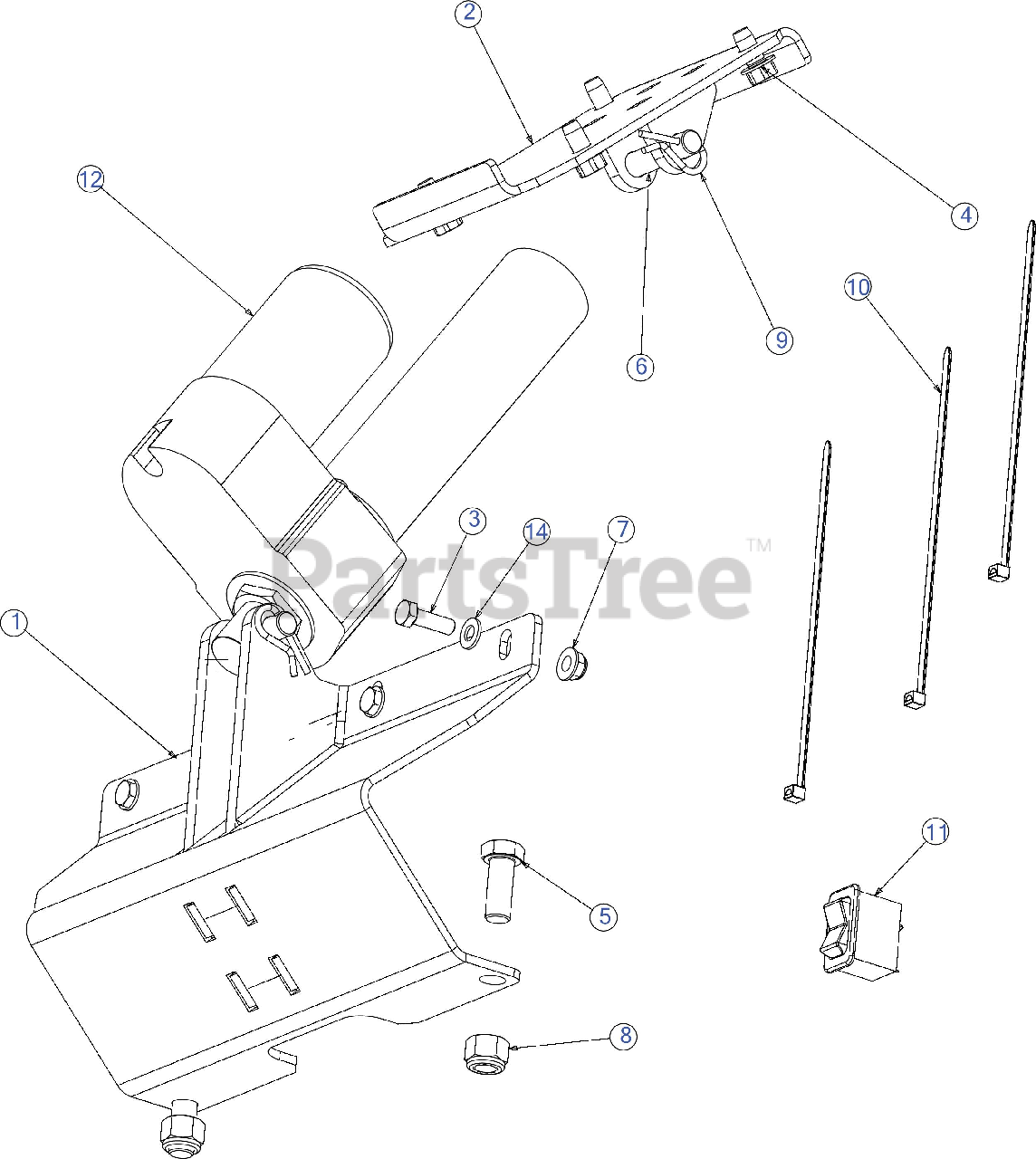

Electric Bed Lift Parts Diagram

  • Title

1

Cub Cadet 607-04217A-0637

MOUNT PLATE ASSEMBLY

$143.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04218-0637

BED LIFT PLATE ASSEMBLY

$106.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 16

0

4

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-04007

CLEVIS PIN .50X2.25

$42.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0149B

COTTER PIN
(Superseded to 714-0149B)

$

$

Not available

10

Cub Cadet 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

11

Cub Cadet 725-04012

BED LIFT SWITCH

$48.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-04379

LINEAR ELECTRIC ACTUATOR

$1208.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 936-0264

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

Cub Cadet 725-04901

ACCESSORY HARNESS-BEDLIFT

Note: (Not Shown)

$157.99

$

Usually ships in 3-6 days

0
