Volunteer WT CAB 747 EFI (37AM48FM010) - Cub Cadet 4x4 Utility Vehicle (2017) Bed Parts Diagram

4x4 Utility Vehicle

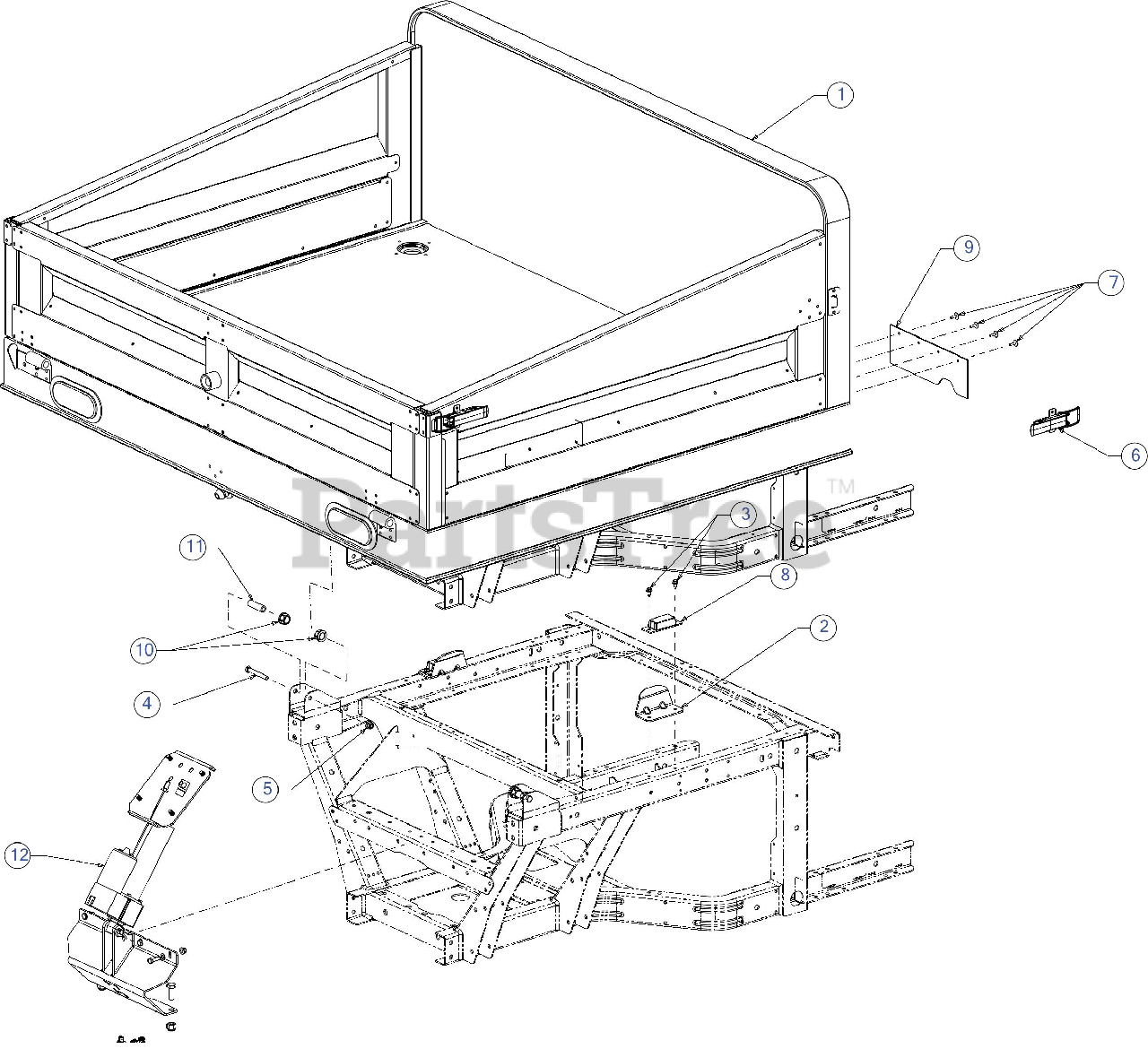

Bed Parts Diagram

  • Title

1

Cub Cadet 607-05097

FLAT BED ASSEMBLY

$4078.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 607-05098

TAILGATE FOR BED ASSEMBLY

Note: (Not Shown)

$1112.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 607-05099

RIGHT SIDE FOR BED ASSEMBLY

Note: (Not Shown)

$1112.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 607-05100

LEFT SIDE FOR BED ASSEMBLY

Note: (Not Shown)

$1112.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04786-0637

BED GUIDE BRACKET

$48.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 726-04058A

LATCH

$85.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 928-04004

POP RIVET

$7.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-04016

SUSPENSION BUMPER

$47.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 735-05140

REAR MUD FLAP

$74.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 948-0227A

FLANGE BEARING

$8.99

$

In Stock, Qty 16

0

11

Cub Cadet 750-04634

SPACER:.390 ID x .625OD x 2.03

$46.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 607-04218-0637

BED LIFT PLATE ASSEMBLY

$120.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 607-04217A-0637

MOUNT PLATE ASSEMBLY

Note: (Not Shown)

$163.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-04012

BED LIFT SWITCH

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-04379

LINEAR ELECTRIC ACTUATOR

Note: (Not Shown)

$1377.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-04901

ACCESSORY HARNESS-BEDLIFT

Note: (Not Shown)

$179.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

Note: (Not Shown)

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-04007

CLEVIS PIN .50X2.25

Note: (Not Shown)

$48.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3083

HEX LOCK NUT NYLON

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 914-0149B

COTTER PIN
(Superseded to 714-0149B)

Note: (Not Shown)

$

$

Not available

12

Cub Cadet 936-0264

FLAT WASHER

Note: (Not Shown)

$7.49

$

In Stock, Qty 9

0

12

Cub Cadet 725-0157

7" CABLE TIE

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0
