VT-100 (21A-70M8709) - Cub Cadet Vertical-Tine Tiller (2015) Drive Assembly (2 Belts) Parts Diagram

Vertical-Tine Tiller

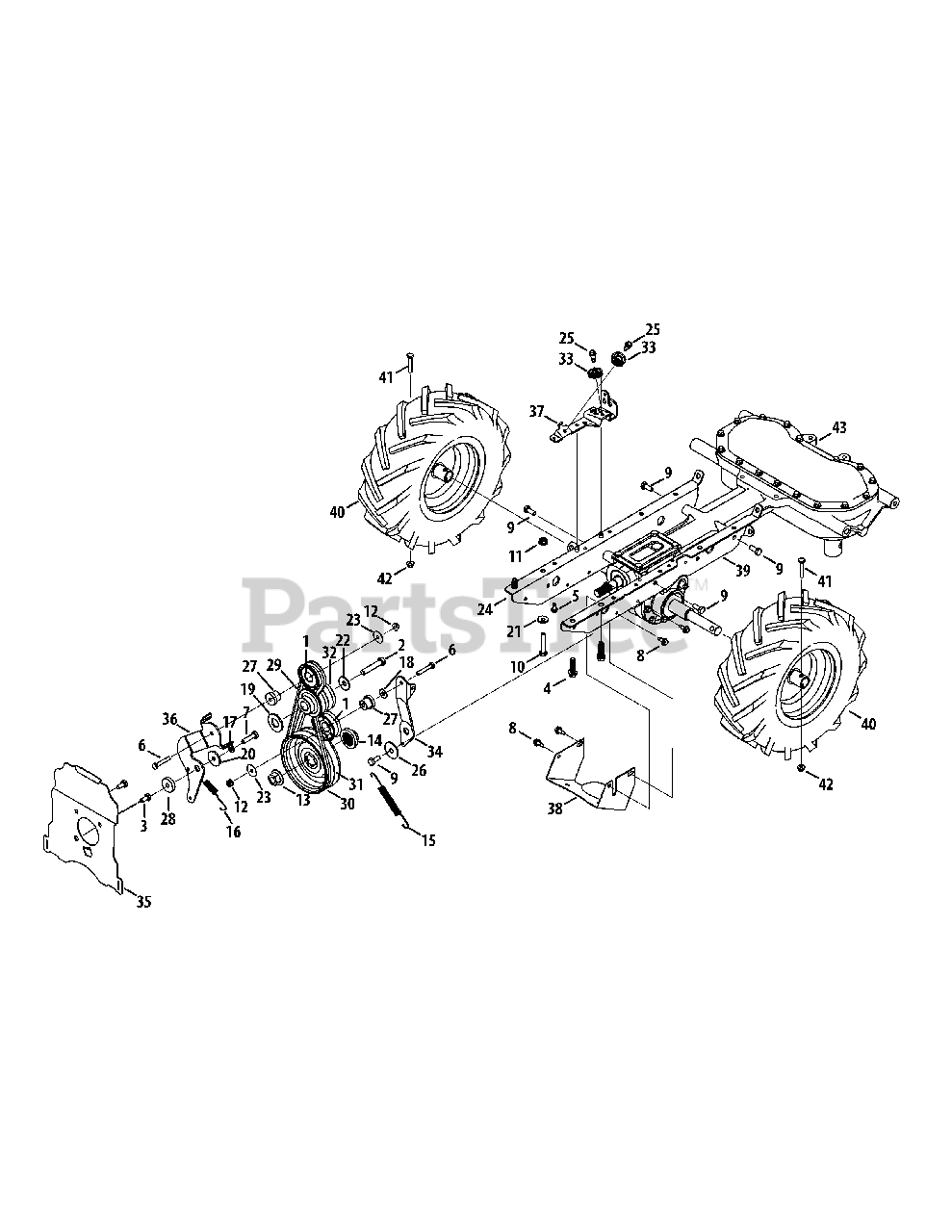

Drive Assembly (2 Belts) Parts Diagram

  • Title

1

Cub Cadet 684-04168

Idler Pulley Assembly, 1.917 OD

$38.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-0151

Hex Head Screw, 3/8-24 x 2.00

$7.49

$

In Stock, Qty 5

0

3

Cub Cadet 710-0170

Hex Head Screw, 5/16-24 x .625

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, Qty 7

0

5

Cub Cadet 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 13

0

7

Cub Cadet 710-0672

Hex Head Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

Flangelock Nut, 5/16-18, B&S

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, Qty 17

0

14

Cub Cadet 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, Qty 11

0

15

Cub Cadet 732-04085

Extension Spring, .480 OD x 5.00 LG

$14.99

$

In Stock, only 4 left!

0

16

Cub Cadet 732-04276A

Extension Spring, LT5 PTO

$9.99

$

In Stock, Qty 18

0

17

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 10

0

19

Cub Cadet 736-0315

Washer, Flat, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

20

Cub Cadet 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 18

0

21

Cub Cadet 736-04193

Washer, .396 x 1.140 x .095, B&S

$6.99

$

In Stock, Qty 8

0

22

Cub Cadet 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 10

0

24

Cub Cadet 786-04416A-4021

RH Mount Frame
(Superseded to 786-04416B-4021)

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 738-04425

Screw, Shoulder, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 748-04087A

Forward Idler Pivot Spacer

$6.49

$

In Stock, Qty 16

0

27

Cub Cadet 750-04571

Spacer, Shoulder, .260 x .785 x .538

$6.99

$

In Stock, Qty 6

0

28

Cub Cadet 750-04907

Reverse Idler Pivot Spacer

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 954-04091

V Belt, 3L x 29.125 LG

$18.99

$

In Stock, Qty 20+

0

30

Cub Cadet 954-05069

V Belt, 4L x 25.4 LG

$37.99

$

In Stock, only 4 left!

0

31

Cub Cadet 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-05107

Engine Pulley, 3L & 4L

$56.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 20+

0

34

Cub Cadet 786-04312

Forward Idler Bracket

$13.99

$

In Stock, only 1 left!

0

35

Cub Cadet 786-04343-4021

Cover Mounting Plate

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-04346

Reverse Idler Bracket

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 786-04357-4021

Pulley Mounting Bracket
(Superseded to 786-04357A-4021)

$9.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 786-04371-4021

Pulley Shield

$18.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 786-04415C-4021

LH Mount Frame
(Superseded to 786-04415D-4021)

$31.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 934-04736

Wheel Assembly, 13 x 5 x 6

$185.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 634-04735

Rim Only, Beige

$60.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 734-04163A

Tire Only

$114.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-05289

Hex Head Screw, 1/4-20 x 1.5

$5.99

$

In Stock, Qty 5

0

42

Cub Cadet 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 918-07010

Transmission Assembly

$1229.99

$

Usually ships in 3-6 days
