VT-100 (21A-70M8756) - Cub Cadet Vertical-Tine Tiller (2016) Transmission Parts Diagram

Vertical-Tine Tiller

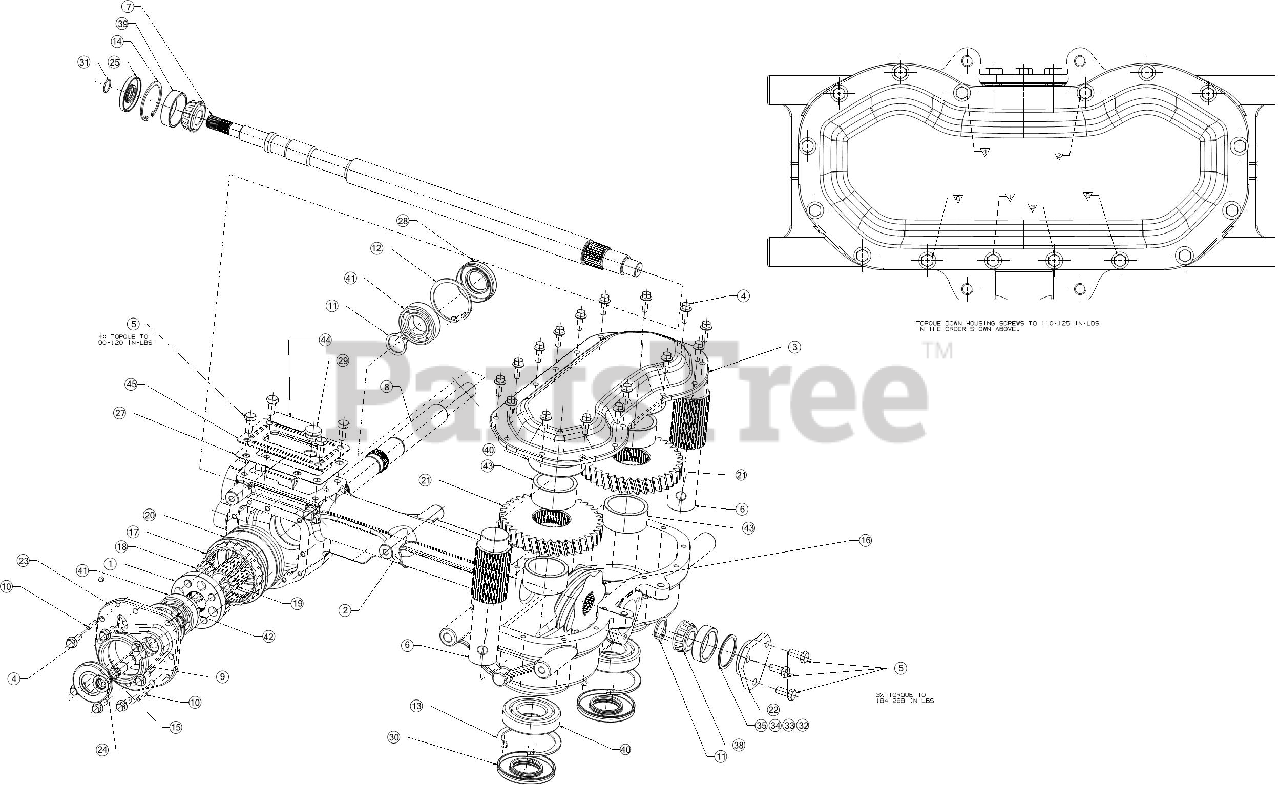

Transmission Parts Diagram

  • Title

Cub Cadet 918-07010

TRANSMISSION ASSEMBLY

Note: Not Shown

$1229.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 918-07045

PLANETARY CARRIER ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 919-05078

TRANSMISSION HOUSING

$

$

Not available

3

Cub Cadet 919-05080

TRANSMISSION COVER

$154.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$7.49

$

In Stock, Qty 9

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-06217

TINE SHAFT

$88.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 911-06224

WORM DRIVE SHAFT

$

$

Not available

8

Cub Cadet 911-06233

WHEEL SHAFT

$103.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-06255

NEUTRAL DRIVE SHAFT

$24.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 716-0127

RETAINING RING

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0204

RETAINING RING

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet 716-0394

RETAINING RING

$

$

Not available

14

Cub Cadet 716-04102

RETAINING RING

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet 716-0865

SNAP RING FOR .500

$4.99

$

In Stock, Qty 11

0

16

Cub Cadet 917-05197

WORM GEAR 7T

$155.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 917-05204

RING GEAR 48T

$

$

Not available

18

Cub Cadet 917-05213

PLANETARY GEAR 12T

$20.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 917-05217

SUN GEAR 24T

$42.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 917-05218

WORM GEAR 61T

$167.99

$

In Stock, only 1 left!

0

21

Cub Cadet 917-05232

TINE SHAFT GEAR- 38T

$

$

Not available

22

Cub Cadet 918-04435

BEARING COVER

$24.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 919-04493A

TILLER HOUSING COVER

$54.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 721-0393

OIL SEAL .5000 x .8750 x .2500

$13.99

$

In Stock, Qty 5

0

25

Cub Cadet 921-04030

OIL SEAL .750 SHF x 1.783

$12.99

$

In Stock, Qty 20+

0

26

N/A

SEALANT

Note: Not Serviceable

$

$

Not available

44

N/A

LABEL

Note: Not Serviceable

$

$

Not available

36

N/A

OIL

Note: Not Serviceable

$

$

Not available

37

N/A

GREASE

Note: Not Serviceable

$

$

Not available

27

Cub Cadet 921-04229

GEAR HOUSING GASKET

$7.49

$

In Stock, Qty 12

0

28

Cub Cadet 721-04232

OIL SEAL 1.00 SHF x 2.00 BORE

$17.99

$

In Stock, Qty 20+

0

29

Cub Cadet 721-04271

RUBBER OIL PLUG

$5.99

$

In Stock, Qty 10

0

30

Cub Cadet 921-04756

SEAL, OIL

$53.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-0614

WIRE RING

$6.49

$

In Stock, only 3 left!

0

32

Cub Cadet 736-04305

FLAT WASHER 1.500X1.750X.062

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 736-04306

FLAT WASHER 1.500X1.750X.005

$4.49

$

In Stock, Qty 14

0

34

Cub Cadet 736-04307

FLAT WASHER 1.500X1.750X.030

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-04308

FLAT WASHER 1.500X1.750X0.010

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 941-04298

BEARING CONE

$17.99

$

In Stock, Qty 20+

0

39

Cub Cadet 941-04299

BEARING CUP

$7.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-1100

BALL BEARING

$38.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-3114

BALL BEARING

$27.99

$

In Stock, Qty 20+

0

42

Cub Cadet 750-06181

SPACER 1.010 x 1.500 x 0.175

$5.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-06183

SPACER 1.780 x 2.180 x 1.010

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 786-04366

TRANSMISSION COVER

$22.99

$

Usually ships in 3-6 days

0
