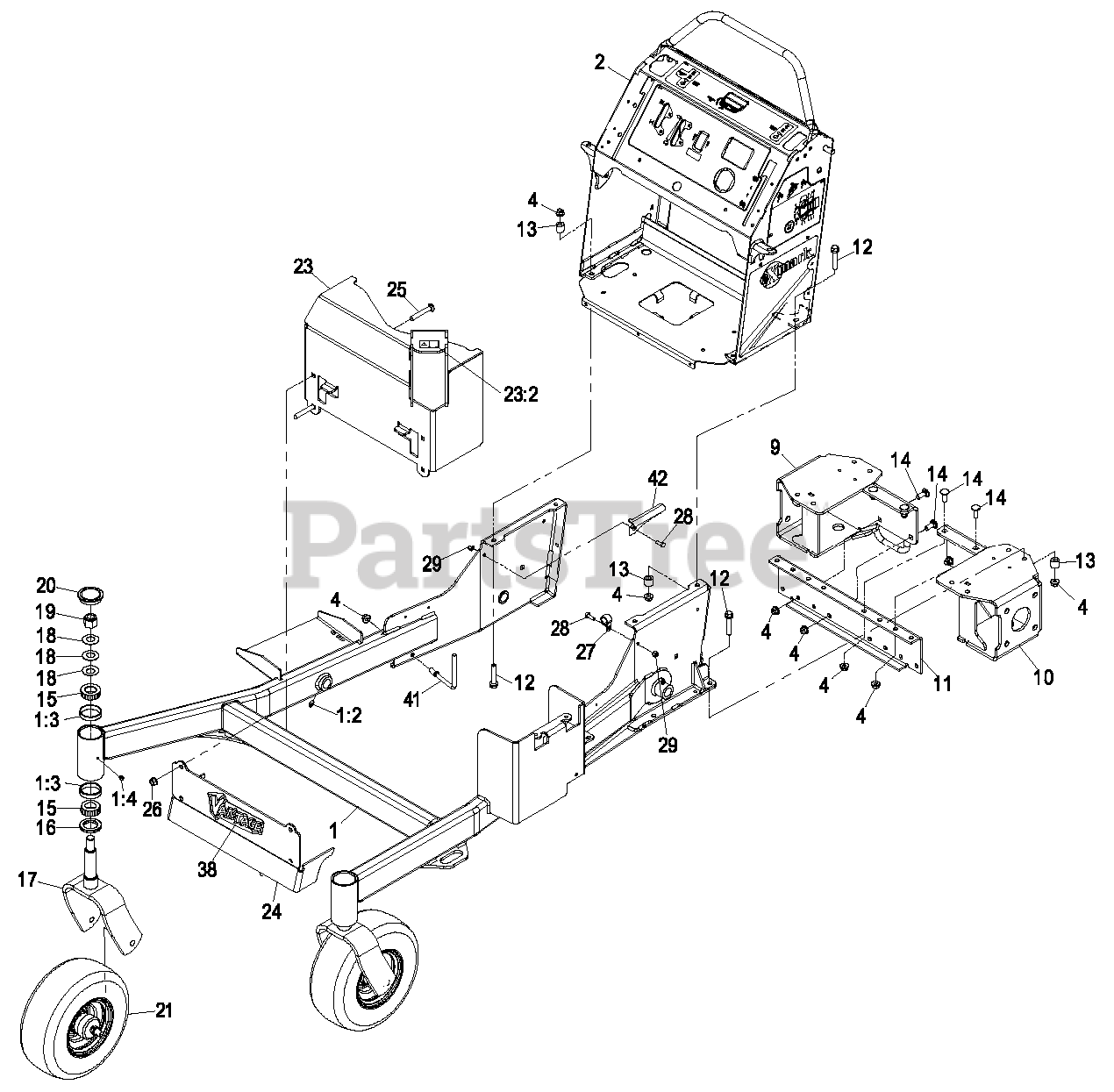

VT20KA484 - Exmark 48" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Mainframe Group Parts Diagram

48" Vantage Stand-On Mower, 20hp Kawasaki

Mainframe Group Parts Diagram

  • Title

1

Exmark 116-2486

116-7045
(Superseded to 116-7045)

$1718.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

1:3

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

1:4

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-1802

116-5013
(Superseded to 135-0159)

$1117.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 119-7222-03

RH MOTOR MOUNT ASM

$328.99

$

Usually ships in 3-6 days

0

10

Exmark 119-7220-03

LH MOTOR MOUNT ASM

$

$

Not available

11

Exmark 119-7224-03

MOUNT-MOTOR, CENTER

$

$

Not available

12

Exmark 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 98-8895

SPACER

$26.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

15

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

16

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

17

Exmark 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

18

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

19

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

20

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

21

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$210.99

$

In Stock, only 3 left!

0

23

Exmark 116-2490

MUFFLER GUARD ASM
(Superseded to 126-5015)

$210.99

$

Usually ships in 3-6 days

0

23:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

24

Exmark 116-3113-01

PANEL-GUARD

$108.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

26

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Exmark 116-3137

DECAL-VANTAGE LOGO

$11.99

$

In Stock, only 3 left!

0

41

Exmark 116-3382

GUIDE-HOSE, SUPPORT

$21.99

$

Usually ships in 3-6 days

0

42

Exmark 116-3456

BRACKET-HOSE, FUEL

$13.99

$

Usually ships in 3-6 days

0
