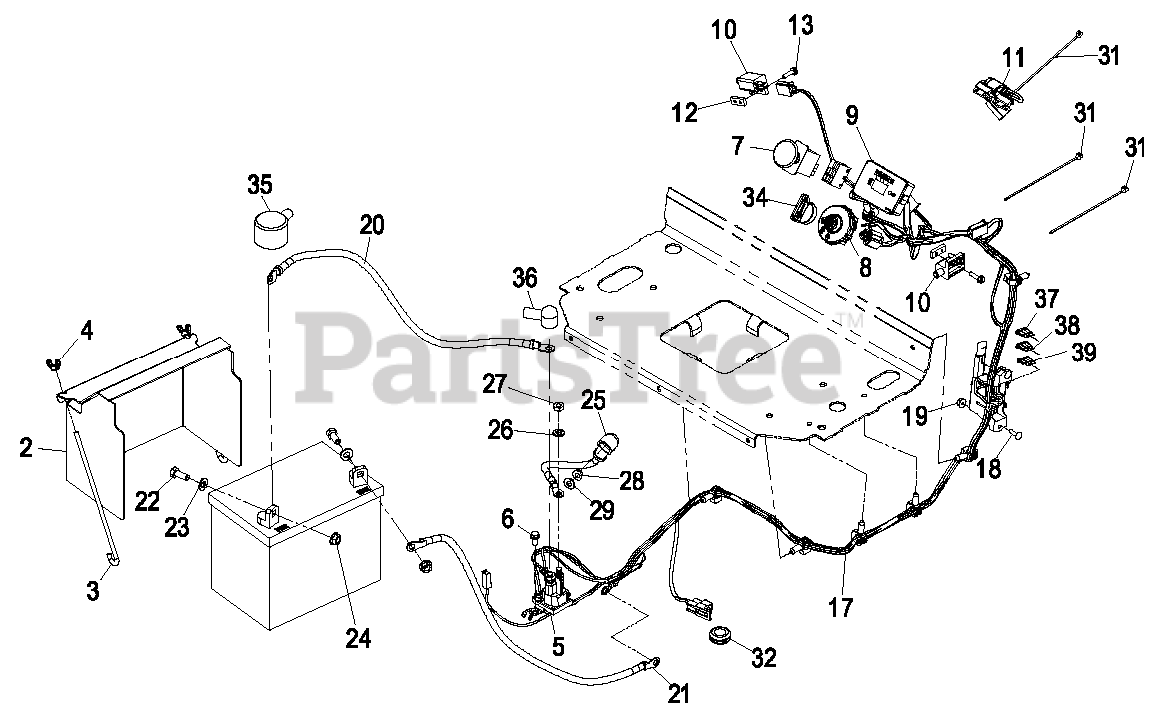

VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Electrical Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

Electrical Group Parts Diagram

  • Title

2

Exmark 117-0543-01

COVER-BATTERY

$104.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 16

0

4

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 11

0

5

Exmark 117-1197

SOLENOID

$47.99

$

In Stock, Qty 20+

0

6

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 114-0279

SWITCH-PTO, ON-ON

$62.99

$

In Stock, Qty 14

0

8

Exmark 117-2222

137-4101
(Superseded to 137-4101)

$36.99

$

In Stock, Qty 16

0

9

Exmark 115-4180

117-3886
(Superseded to 117-3886)

$227.99

$

Usually ships in 3-6 days

0

10

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 16

0

11

Exmark 116-2833

HARNESS-SWITCH, REED

$125.99

$

Usually ships in 3-6 days

0

12

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 16

0

13

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 116-2662

HARNESS-WIRING

$286.99

$

Usually ships in 3-6 days

0

18

Exmark 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

19

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 8

0

20

Exmark 109-7653

POSITIVE BATTERY CABLE AS

$37.99

$

In Stock, only 1 left!

0

21

Exmark 105-0836

CABLE-BATTERY, BLACK

$21.99

$

Usually ships in 3-6 days

0

22

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Exmark 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 106-8268

CABLE-BATTERY, RED

$39.99

$

Usually ships in 3-6 days

0

26

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

34

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

35

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

36

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

37

Exmark 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, Qty 6

0

38

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 8

0

39

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 10

0
