VT24KA484 - Exmark 48" Vantage Stand-On Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Fuel Tank Mounting Assembly Parts Diagram

48" Vantage Stand-On Mower, 24hp Kawasaki

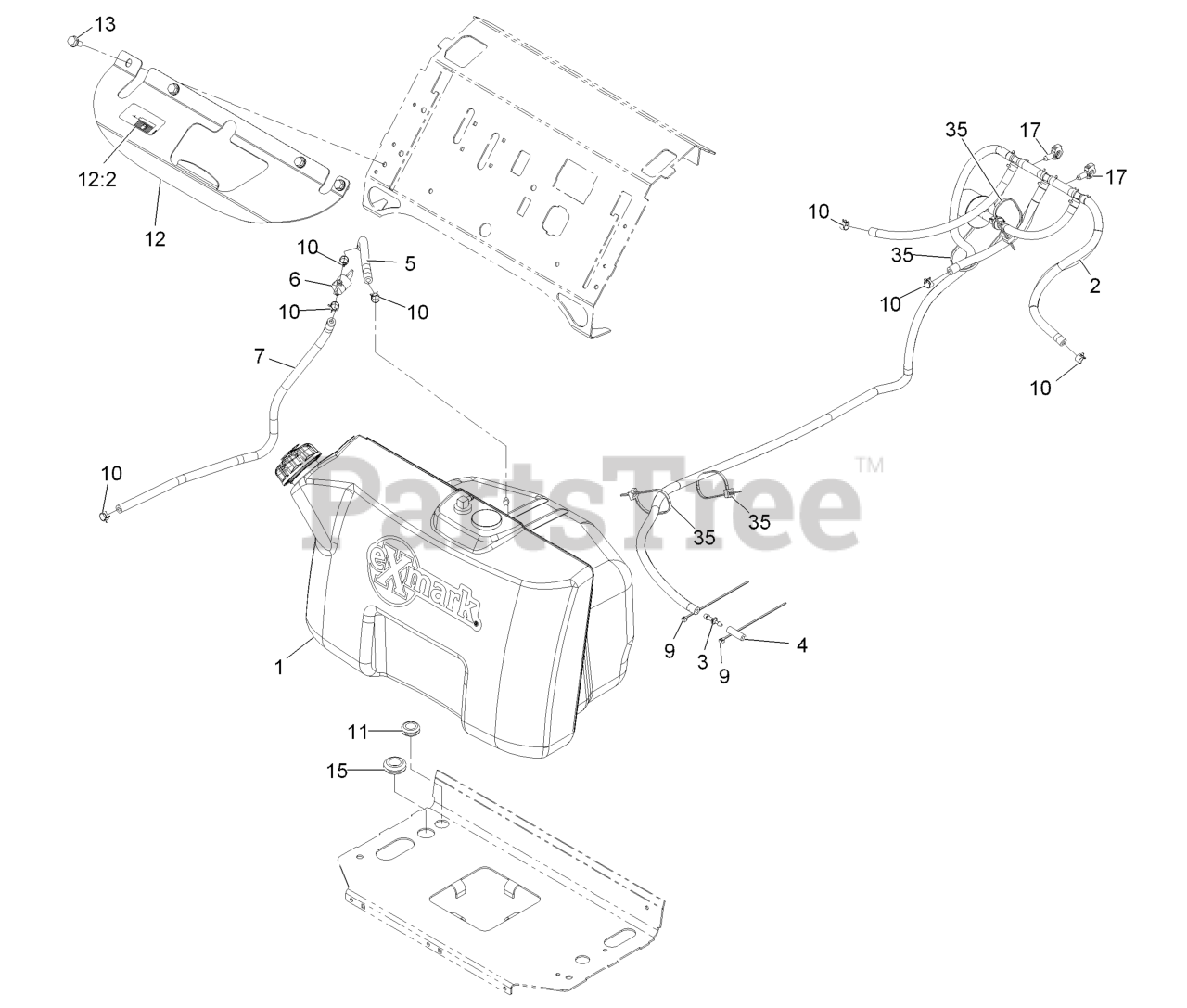

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$902.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5096

VENT ASM

$178.99

$

Usually ships in 3-6 days

0

3

Exmark 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

4

Exmark 51-3216

HOSE-FUEL

$5.99

$

In Stock, only 3 left!

0

5

Exmark 107-9297

HOSE-FUEL

$8.49

$

In Stock, only 2 left!

0

6

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

7

Exmark 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 2 left!

0

9

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 116-3088

BRACKET-TANK

$82.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.99

$

Usually ships in 3-6 days

0

13

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Exmark 117-2781

GROMMET

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0
