VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011)

52" Vantage Stand-On Mower, 24HP Kawasaki, CARB

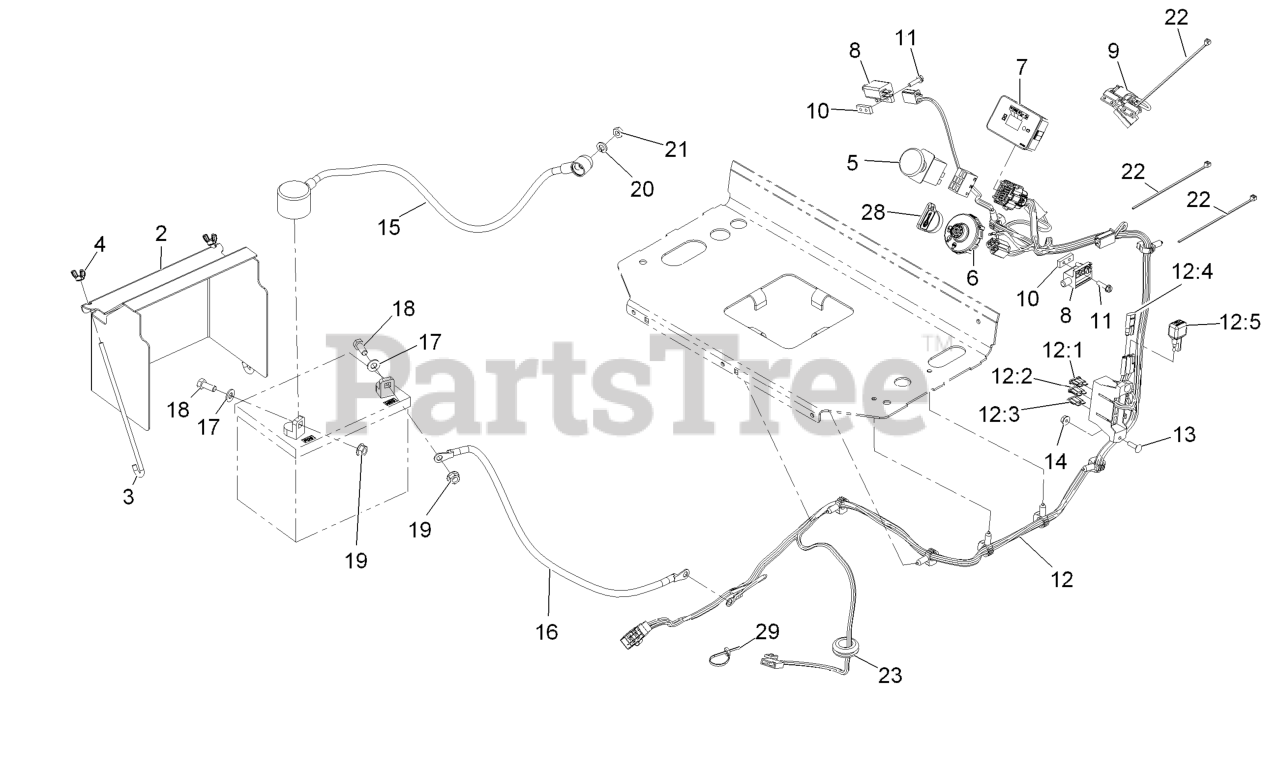

VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (22) > Electrical Assembly

  • Title
117-0543-01

2

Cover-Battery

Part# 117-0543-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $67.00

1-633651

3

Bolt-Holddown

Part# 1-633651

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.81

1-543792

4

Wingnut-Nyloc 1/4-20

Part# 1-543792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.60

114-0279

5

Switch-Pto

Part# 114-0279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.60

117-2222

6

Switch-Ignition

Part# 117-2222 (Superseded to 137-4101)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

115-4180

7

Module-Meter, Hour

Part# 115-4180 (Superseded to 117-3886)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $139.16

1-513152

8

Switch-N.C.

Part# 1-513152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.22

116-2833

9

Harness-Switch, Reed

Part# 116-2833

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $78.60

1-633181

10

Plate-Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.19

32105-13

11

Screw-Hwh #10-24 X 3/4

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

116-4615

12

Harness-Wire

Part# 116-4615

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $278.32

109103

12:1

Fuse-Blade, 30 Amp

Part# 109103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.79

109102

12:2

Fuse-Blade, 25 Amp

Part# 109102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

218-578

12:3

Fuse-Blade, 10 Amp

Part# 218-578

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

116-0053

12:4

Cap-Plug

Part# 116-0053

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.13

103-3895

12:5

Diode-Tvs

Part# 103-3895

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.94

3229-20

13

Screw-Carr

Part# 3229-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.41

3290-148

14

Nut-Whizlock #10-24

Part# 3290-148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

115-3864

15

Cable-Battery, Positive

Part# 115-3864

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.00

105-0836

16

Cable-Battery, Black

Part# 105-0836

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.20

3256-23

17

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

322-3

18

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

109-5715

19

Nut-Hex Flange 5/16-18

Part# 109-5715

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3253-3

20

Washer-Lock 1/4

Part# 3253-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.11

3217-5

21

Nut-Hex 1/4-20

Part# 3217-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

1-303287

22

Tie-Cable 5 1/2 (Small)

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.64

117-2781

23

Grommet

Part# 117-2781

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.00

103-2106

28

Key-Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

3290-378

29

Tie-Cable

Part# 3290-378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74
