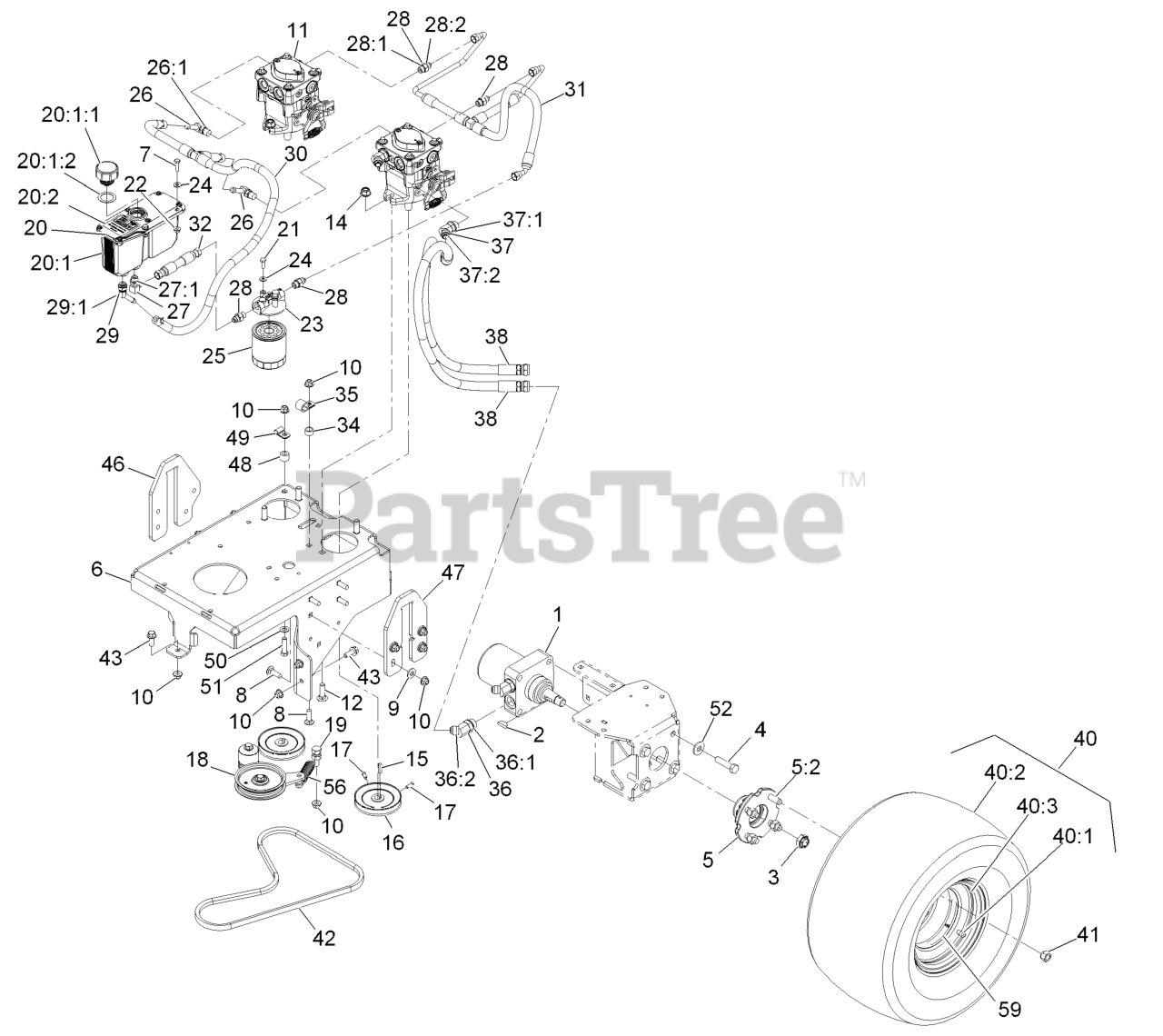

VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (22) > Ground Drive Assembly

  • Title
116-4851

1

Motor-Wheel Asm

Part# 116-4851

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $868.66

3257-8

2

Key-Woodruff

Part# 3257-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.06

116-2839

3

Nut-Lock

Part# 116-2839

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.75

325-8

4

Screw-Hh 1/2-13 X 1 1/4

Part# 325-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.45

105-0800

5

Wheel Hub Asm

Part# 105-0800

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $181.08

10-6830

5:2

Stud-Type, Drive

Part# 10-6830

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.51

116-4920-01

6

Base-Engine

Part# 116-4920-01

OEM Warranty Repair Part for Exmark

Not available

321-6

7

Screw-Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3231-25

8

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

98-5975

9

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

104-8301

10

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-2572

11

Pump - Hydraulic

Part# 116-2572

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $966.27

3232-3

12

Bolt-Carriage 7/16-14 X 1 1/2

Part# 3232-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.39

114-8417

14

Nut-Hf, Ni

Part# 114-8417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.92

1-807272

15

Key-5mm X 5mm X 25mm

Part# 1-807272

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.63

105-5648

16

Pulley-Pump

Part# 105-5648

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.77

3241-5

17

Screw-Set

Part# 3241-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

117-7685

18

Pump Idler Asm

Part# 117-7685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $159.05

114-5866

19

Anchor-Spring, Short

Part# 114-5866 (Superseded to 132-4729)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

116-2066

20

Asm,Reservoir W/Decals

Part# 116-2066

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $148.18

Reservoir-Hyd

20:1

Reservoir-Hyd

Part# Reservoir-Hyd

Not available

103-1948

20:1:1

Cap-Reservoir, Hyd

Part# 103-1948 (Superseded to 103-7615)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.78

103-1949

20:1:2

Gasket-Cap

Part# 103-1949

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.75

116-0404

20:2

Decal-Hydraulic Tank

Part# 116-0404

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.74

321-4

21

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

32128-32

22

Nut-Hex 1/4-20 Side Lock

Part# 32128-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.36

104-7836

23

Filter-Head

Part# 104-7836

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

3256-22

24

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

109-4180

25

Filter,25 Micron Bi-Directional

Part# 109-4180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

100-4887

26

Fitting-Barbed, 90 Deg

Part# 100-4887

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.01

237-42

26:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

103-1802

27

Fitting-Hyd, 90 Deg

Part# 103-1802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.28

1-603921

27:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

103-2156

28

Adapter-Straight

Part# 103-2156

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.58

1-603921

28:1

O-Ring-SAE #6

Part# 1-603921 (Superseded to 237-42)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

103-1020

28:2

O-Ring-37 Flare #6

Part# 103-1020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.93

103-1807

29

Fitting-Barbed, 45 Deg

Part# 103-1807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.30

237-42

29:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

116-2579

30

Tank Hose Asm

Part# 116-2579

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.69

116-2650

31

Hose Assembly - Charge

Part# 116-2650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $101.31

116-2604

32

Hyd Hose Asm

Part# 116-2604

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.35

1-653069

34

Spacer-Wheel

Part# 1-653069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

1-633396

35

Clip-Loom 5/8

Part# 1-633396

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.04

1-523222

36

Fitting-Hyd, 45 Deg

Part# 1-523222

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.26

1-603919

36:1

O-Ring-SAE #10

Part# 1-603919

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

1-603992

36:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

1-523221

37

Fitting-Hyd, 45 Deg

Part# 1-523221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

1-603920

37:1

O-Ring-SAE #8

Part# 1-603920

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-603992

37:2

O-Ring-37 Flare #8

Part# 1-603992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

116-4048

38

Hose Asm-Hyd Hp

Part# 116-4048 (Superseded to 116-6902)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $88.09

117-0429

40

Wheel Asm

Part# 117-0429

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $302.22

232-27

40:1

Stem-Valve

Part# 232-27

OEM Warranty Repair Part for Exmark

Not available

117-0428

40:2

Tire

Part# 117-0428

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $209.22

106-8133

40:3

Rim-8 Inch

Part# 106-8133

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $146.23

242-50

41

Nut-Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.57

114567

42

Screw-Hhf 3/8-16 X 1

Part# 114567

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

3234-42

43

Screw Hhf 3/8-16 X 1

Part# 3234-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.64

116-4922

46

Plate-Lift, Rh

Part# 116-4922

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.50

116-3546

47

Plate, Lift Lh

Part# 116-3546

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $58.72

108326

48

Spacer-Pivot

Part# 108326

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.03

116-3362

49

Clip-Tube

Part# 116-3362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.83

3256-24

50

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

323-8

51

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.66

1-513435

52

Washer-Spring Disc 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

108-4056

56

Spring-Extension

Part# 108-4056

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.02

116-4181

59

Decal-Wheel Hub

Part# 116-4181 (Superseded to 126-2130)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.29
