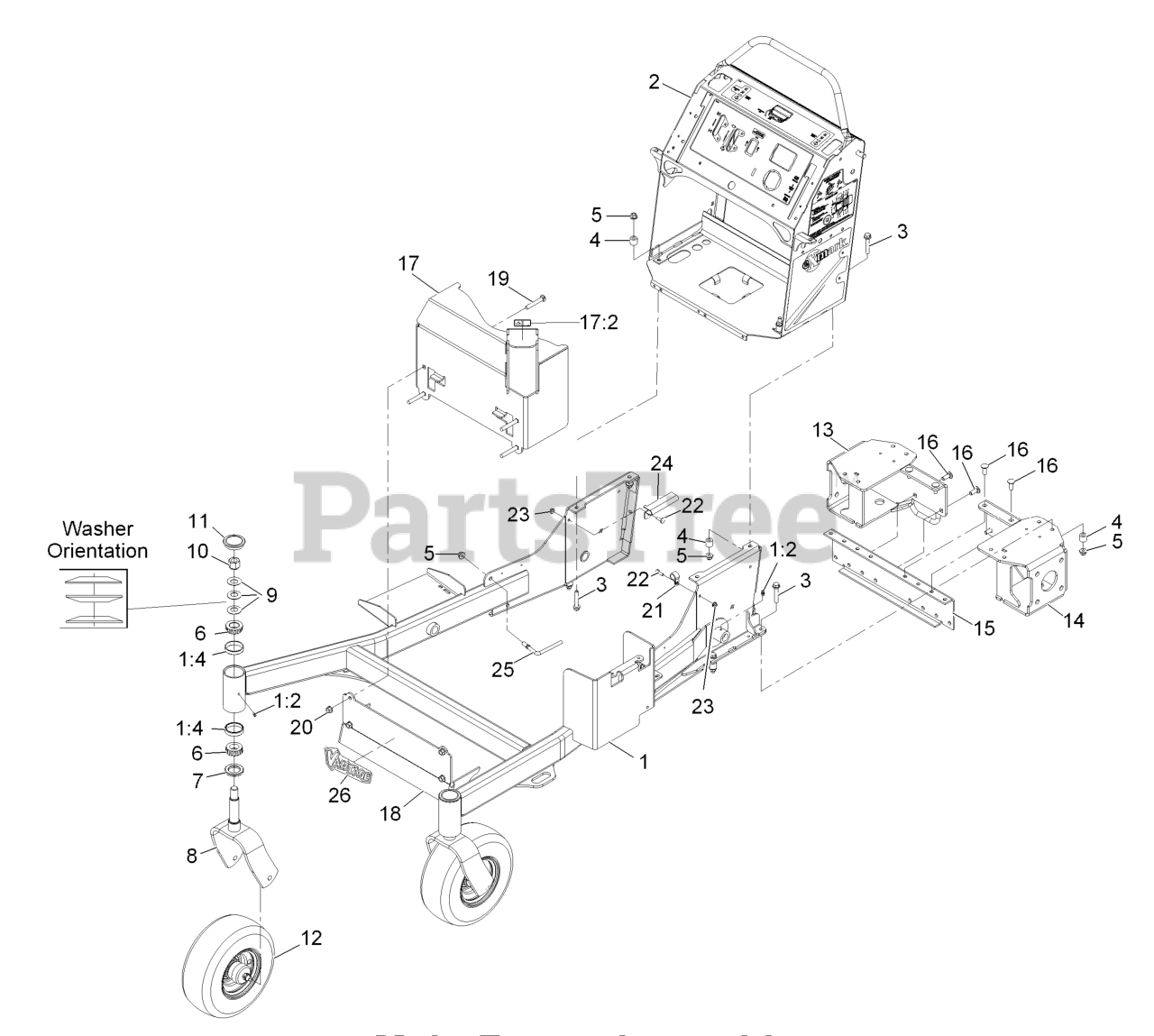

VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (22) > Main Frame Assembly

  • Title
116-2486

1

Front Frame Asm

Part# 116-2486 (Superseded to 116-7045)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1261.57

302-5

1:2

Zerk 1/4-28 Str Thrd Forming

Part# 302-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.65

1-811010

1:4

Plug

Part# 1-811010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.43

116-5013

2

Control Tower Asm

Part# 116-5013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $820.84

108-3742

3

Screw-Hh Flg 3/8-16 X 2

Part# 108-3742

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.99

98-8895

4

Spacer

Part# 98-8895

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.47

104-8301

5

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-543509

6

Cone-Bearing Tapered Roller

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

1-543511

7

Seal-Grease

Part# 1-543511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-8618-01

8

Fork-Caster

Part# 103-8618-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $94.20

1-633508

9

Washer-Spring Disc

Part# 1-633508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.80

3296-51

10

Nut-Nyloc 3/4-10

Part# 3296-51

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.36

103-4882

11

Cap-Grease

Part# 103-4882

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.22

112-3810

12

Wheel/Tire And Bearing Asm

Part# 112-3810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $192.10

119-7222-03

13

Rh Motor Mount Asm

Part# 119-7222-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $213.76

119-7220-03

14

Lh Motor Mount Asm

Part# 119-7220-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $213.76

119-7224-03

15

Mount-Motor, Center

Part# 119-7224-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.61

3231-22

16

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

116-2490

17

Muffler Guard Asm

Part# 116-2490

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $209.22

106-5517

17:2

Decal-Warning, Hot Surface

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

116-3113-01

18

Panel-Guard

Part# 116-3113-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $79.52

3231-31

19

Bolt-Carriage 3/8-16 X 2 1/2

Part# 3231-31

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.64

32128-21

20

Nut-3/8-16 Flanged Side Lock

Part# 32128-21

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.66

2412-87

21

Clamp-Cable

Part# 2412-87

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.30

321-4

22

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

104-7201

23

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.10

116-5067

24

Bracket-Hose, Fuel (Double)

Part# 116-5067

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.73

116-3382

25

Guide-Hose, Support

Part# 116-3382

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.78

116-3137

26

Decal-Vantage Logo

Part# 116-3137

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00
