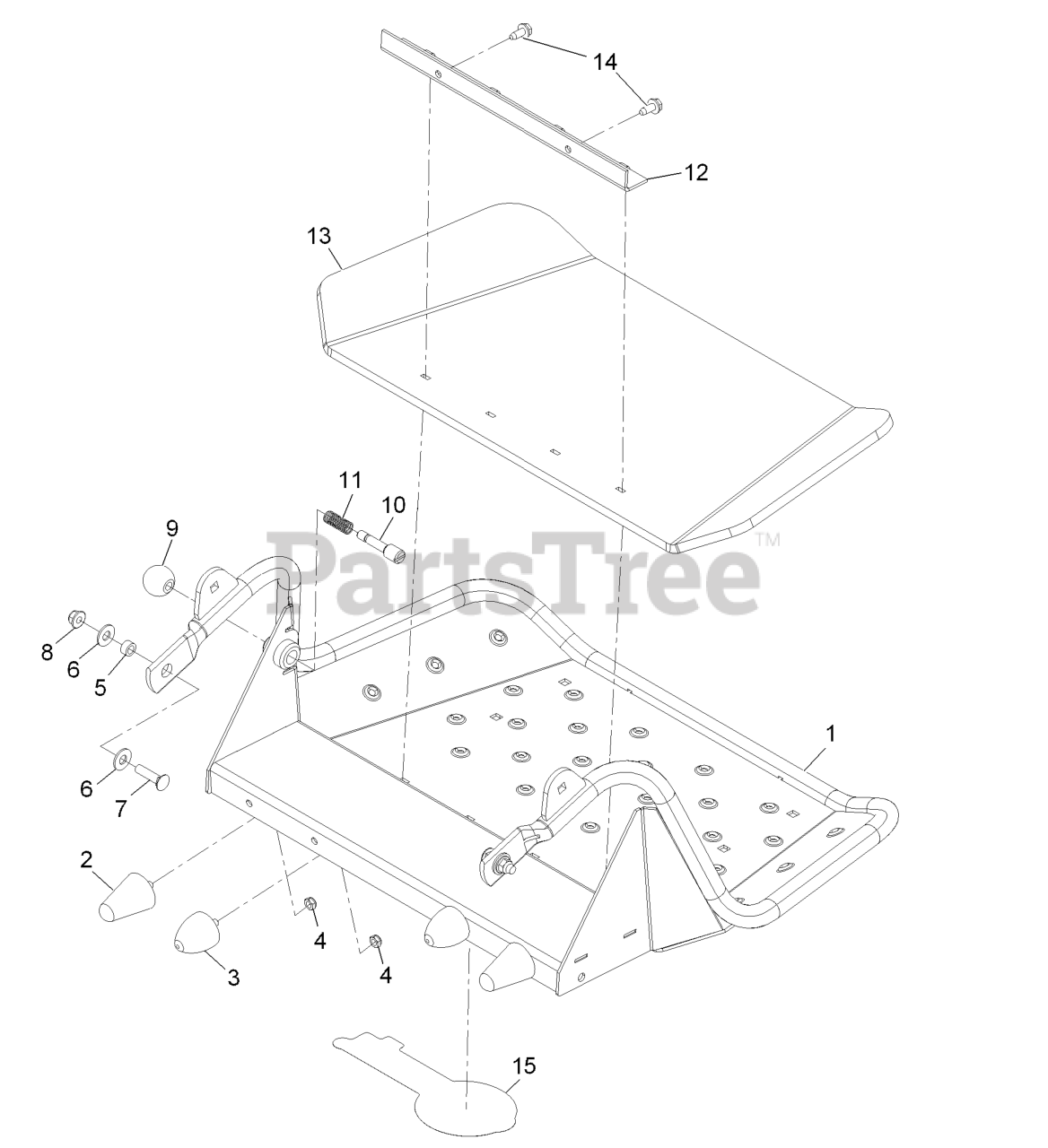

VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (22) > Platform Assembly No. 116-1804

  • Title
117-9641-03

1

Platform Asm

Part# 117-9641-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $401.58

114-1925

2

Bumper-Rubber

Part# 114-1925

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.94

114-1926

3

Bumper-Rubber

Part# 114-1926

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.33

3296-47

4

Nut-Nyloc 5/16-18 Thin

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.49

111044

5

Bushing

Part# 111044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3256-4

6

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

3231-4

7

Bolt-Carriage 3/8-16 X 1 1/2

Part# 3231-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.61

104-8301

8

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-603175

9

Knob-Ball

Part# 1-603175

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.93

119-8650

10

Pin-Latch

Part# 119-8650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.63

114-5348

11

Spring

Part# 114-5348

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.10

114-1920-03

12

Clamp-Shield

Part# 114-1920-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.75

114-5349

13

Mat-Foot

Part# 114-5349 (Superseded to 126-7157)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $79.52

32144-70

14

Screw-Hwh 5/16-18 X 3/4 Tf

Part# 32144-70

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

1-653546

15

Decal, Exmark Logo

Part# 1-653546

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.45
