VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011)

52" Vantage Stand-On Mower, 24HP Kawasaki, CARB

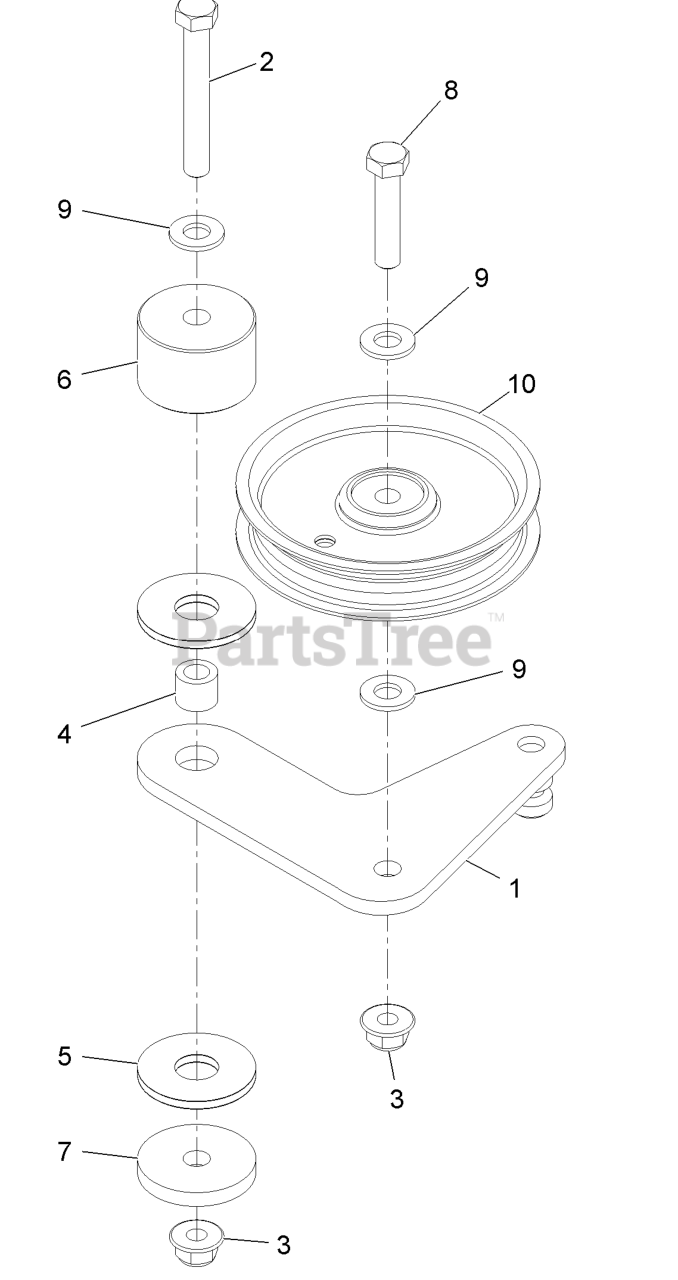

VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24HP Kawasaki, CARB (SN: 920000 - 999999) (2011) > Parts Diagrams (22) > Pump Idler Assembly No. 117-7685

  • Title
117-7684

1

Idler Plate Asm

Part# 117-7684

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.03

323-13

2

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

104-8301

3

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

1-413088

4

Spacer

Part# 1-413088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.54

114-0463

5

Washer-Friction, Composite

Part# 114-0463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

117-3568

6

Hub-Idler

Part# 117-3568

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.03

110-9981

7

Washer-Plain

Part# 110-9981 (Superseded to 110-9981)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

323-9

8

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

3256-24

9

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

93-1622

10

Pulley-Idler

Part# 93-1622

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80
