VT25EKC524 - Exmark 52" Vantage Stand-On Mower, 25hp Kohler (SN: 920000 - 999999) (2011) Electrical Assembly Parts Diagram

52" Vantage Stand-On Mower, 25hp Kohler

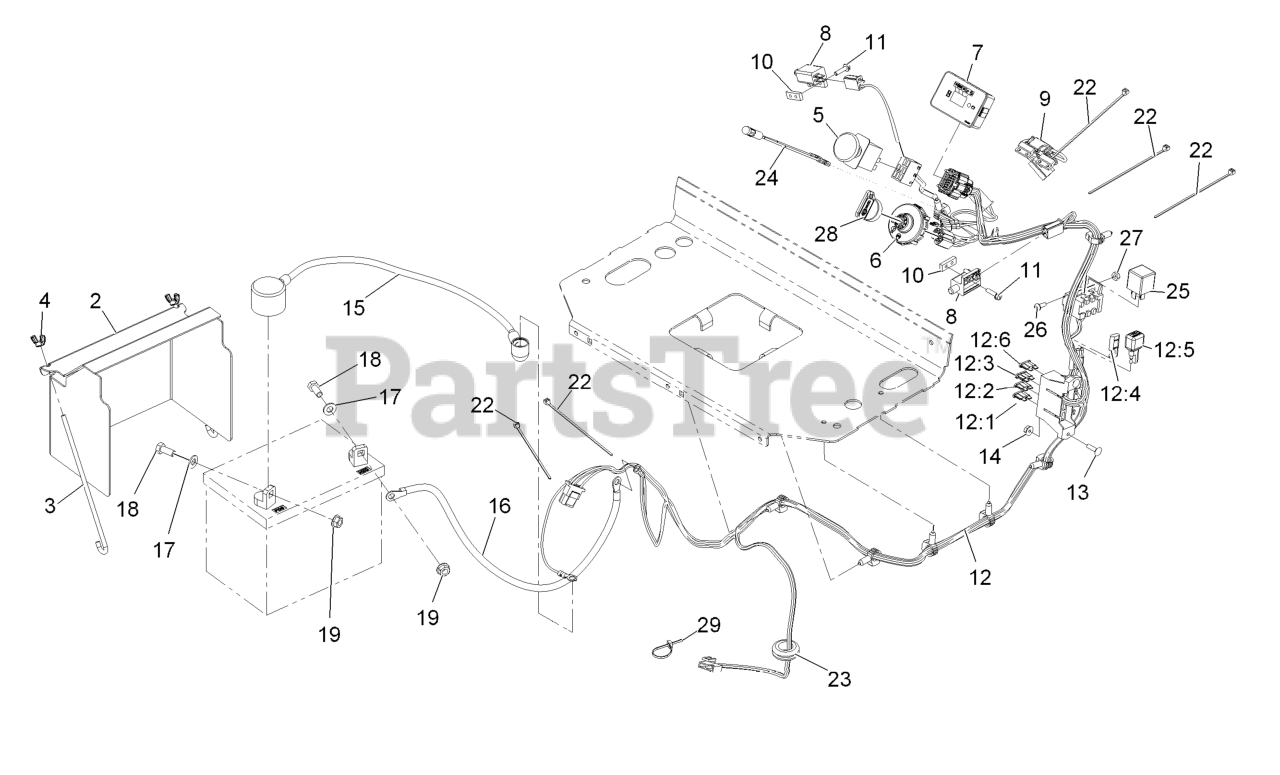

Electrical Assembly Parts Diagram

  • Title

2

Exmark 117-0543-01

COVER-BATTERY

$106.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 9

0

4

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 11

0

5

Exmark 114-0279

SWITCH-PTO, ON-ON

$62.99

$

In Stock, only 2 left!

0

6

Exmark 117-2222

137-4101
(Superseded to 137-4101)

$36.99

$

In Stock, Qty 9

0

7

Exmark 115-4180

117-3886
(Superseded to 117-3886)

$229.99

$

Usually ships in 3-6 days

0

8

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, only 2 left!

0

9

Exmark 116-2833

HARNESS-SWITCH, REED

$129.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

11

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 116-4877

121-7509
(Superseded to 121-7509)

Note: Use dielectric grease on all wiring harness connectors.

$548.99

$

Usually ships in 3-6 days

0

12:1

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 8

0

12:2

Exmark 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, only 2 left!

0

12:3

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 5

0

12:4

Exmark 116-0053

CAP-PLUG

$43.99

$

Usually ships in 3-6 days

0

12:5

Exmark 103-3895

DIODE

$68.99

$

In Stock, only 2 left!

0

12:6

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

13

Exmark 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, only 2 left!

0

15

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$33.99

$

In Stock, only 2 left!

0

16

Exmark 105-0836

CABLE-BATTERY, BLACK

$21.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

18

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 117-2781

GROMMET

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

25

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 9

0

26

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

28

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 9

0

29

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0
