VT25EKC524 - Exmark 52" Vantage Stand-On Mower, 25hp Kohler (SN: 920000 - 999999) (2011) Fuel Tank Mounting Assembly Parts Diagram

52" Vantage Stand-On Mower, 25hp Kohler

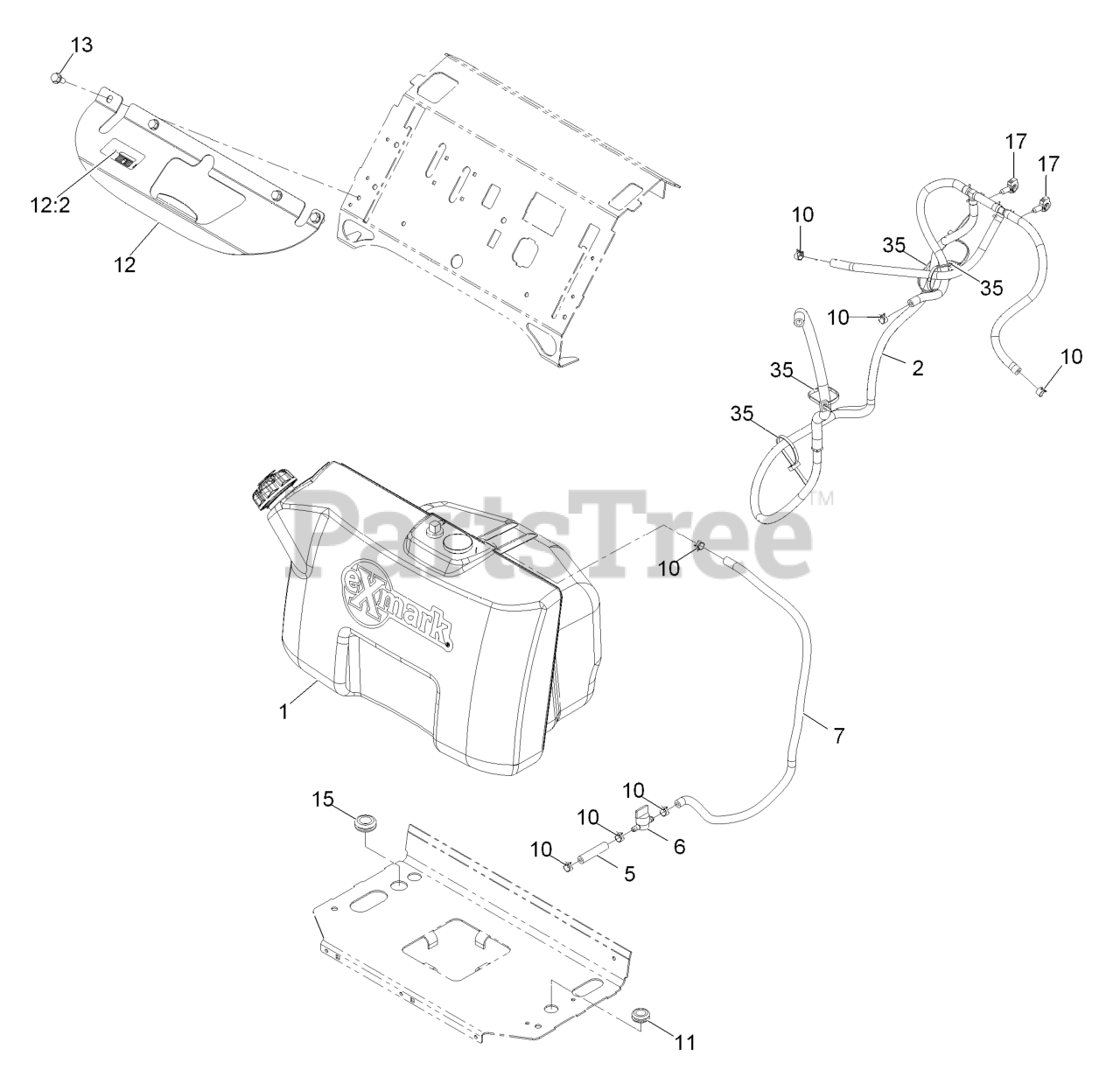

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$884.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5066

VENT ASM

$

$

Not available

5

Exmark 116-4651

HOSE-FUEL

$

$

Not available

6

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

7

Exmark 109-0286

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

10

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 116-3088

BRACKET-TANK

$79.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.99

$

In Stock, only 1 left!

0

13

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Exmark 117-2781

GROMMET

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
