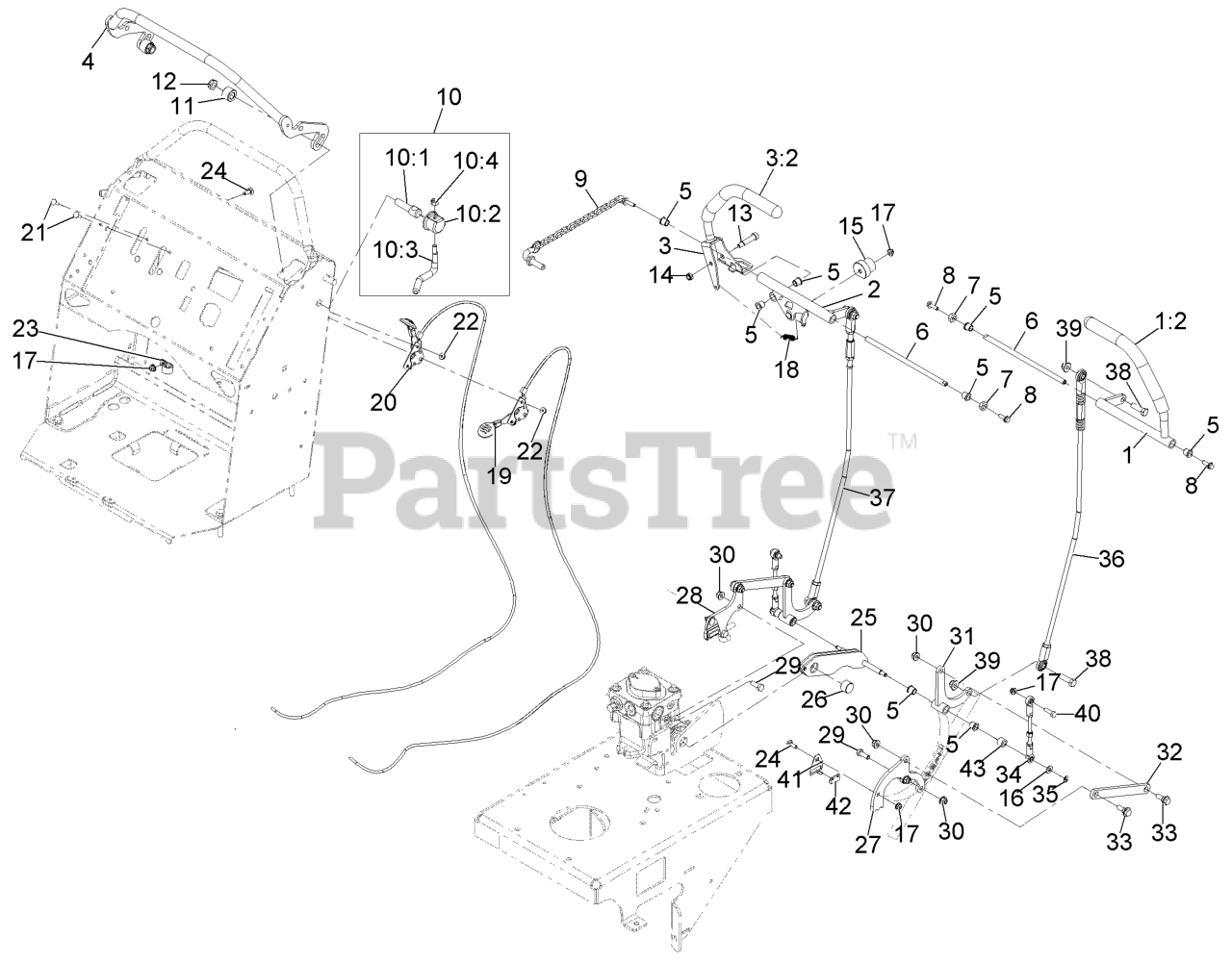

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 315000000 - 315999999) (2015) Control Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

Control Assembly Parts Diagram

  • Title

1

Exmark 116-4195

LEVER ASM, LH

$136.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$12.99

$

In Stock, only 2 left!

0

2

Exmark 126-1943-03

WELD, MOTION CONTROL

$101.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9815

ASM, LEVER W/ GRIP, RT

$106.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$12.99

$

In Stock, only 2 left!

0

4

Exmark 116-6985-03

TUBE ASM, FRONT SPEED CONTROL

$152.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9928

BEARING

$8.49

$

In Stock, only 1 left!

0

6

Exmark 116-4197

SHAFT-PIVOT, MOTION CONTR

$

$

Not available

7

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 114-0409

HOC PIN ASM

$57.99

$

In Stock, only 3 left!

0

10

Exmark 107-1664

LEVER ASM

$82.99

$

In Stock, only 2 left!

0

10:1

Exmark 106-3239

SCREW-LOCK

$56.99

$

Usually ships in 3-6 days

0

10:2

Exmark 107-1644

CAP-LOCK

$44.99

$

Usually ships in 3-6 days

0

10:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$82.99

$

In Stock, only 2 left!

0

10:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 116-2319

SPACER-CLAMP

$

$

Not available

12

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

13

Exmark 114-0239

SCREW-HSH

$13.99

$

In Stock, only 1 left!

0

14

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

15

Exmark 126-1499

CAM

$8.49

$

Usually ships in 3-6 days

0

16

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

17

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 114-0249

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

0

19

Exmark 116-4276

CONTROL-THROTTLE

$59.99

$

In Stock, only 2 left!

0

20

Exmark 116-4277

CONTROL-CHOKE

$52.99

$

In Stock, only 3 left!

0

21

Exmark 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 5

0

23

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

25

Exmark 116-4740

BELLCRANK LINK ASM

$103.99

$

Usually ships in 3-6 days

0

26

Exmark 116-4203

PIN-BELLCRANK LINK RETAIN

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4737

ARM-PUMP CONTROL

$37.99

$

Usually ships in 3-6 days

0

28

Exmark 116-7000

ARM, PUMP CONTROL RH

$29.99

$

Usually ships in 3-6 days

0

29

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-4205

BELLCRANK-LOWER

$84.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4208

LINK-BELLCRANK, PUMP

$35.99

$

Usually ships in 3-6 days

0

33

Exmark 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, only 2 left!

0

34

Exmark 116-4210

VERTICAL ADJUST LINK

$116.99

$

Usually ships in 3-6 days

0

35

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-4213

LINKAGE-TRACKING CONTROL,

$191.99

$

Usually ships in 3-6 days

0

37

Exmark 116-4214

LINKAGE-TRACKING CONTROL,

$191.99

$

Usually ships in 3-6 days

0

38

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

39

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 116-4739

CLAMP-SWITCH

$17.99

$

In Stock, Qty 8

0

42

Exmark 116-2832

ACTUATOR-SWITCH, REED

$32.99

$

Usually ships in 3-6 days

0

43

Exmark 52-2480

SPACER-WHEEL

$6.99

$

In Stock, only 4 left!

0
