VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 315000000 - 315999999) (2015) Fuel Tank Mounting Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

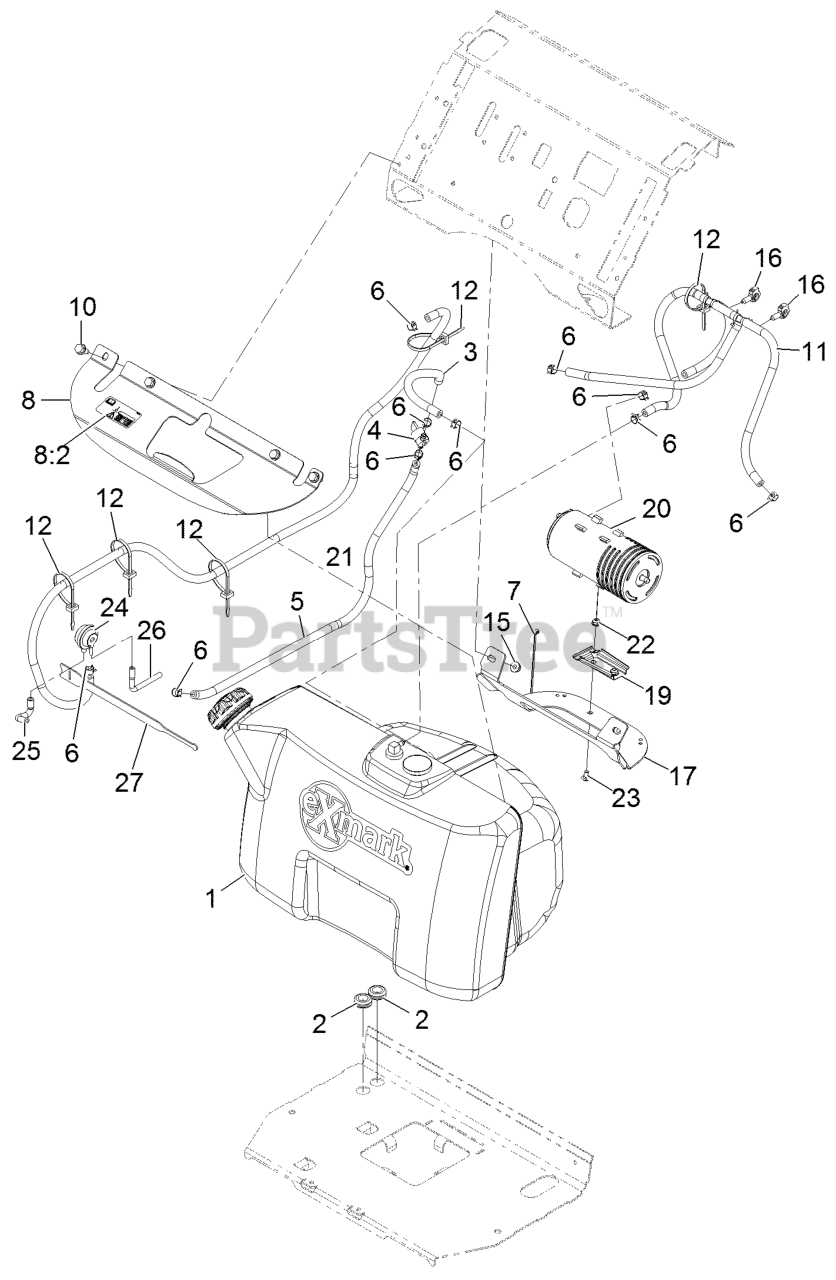

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$884.99

$

Usually ships in 3-6 days

0

2

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

3

Exmark 107-9297

HOSE-FUEL

$8.49

$

In Stock, only 2 left!

0

4

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

5

Exmark 110-1872

HOSE-FUEL

$35.99

$

Usually ships in 3-6 days

0

6

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

7

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 116-3088

BRACKET-TANK

$79.99

$

Usually ships in 3-6 days

0

8:2

Exmark 116-8775

Decal-Fill, Fuel

$9.49

$

Usually ships in 3-6 days

0

10

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

11

Exmark 116-5054

VENT ASM

$

$

Not available

12

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 116-5055-03

BRACKET,CARB CANISTER

$79.99

$

Usually ships in 3-6 days

0

19

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

CANISTER-CARBON, 800CC

$80.99

$

In Stock, only 1 left!

0

21

Exmark 116-5053

HOSE-FUEL .25 X 60.00, J3

$

$

Not available

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 116-5879

SCREW-CARR

$17.99

$

Usually ships in 3-6 days

0

24

Exmark 116-2232

VALVE-CONTROL, VACUUM

$35.99

$

In Stock, only 3 left!

0

25

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 119-8501

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

27

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$19.99

$

Usually ships in 3-6 days

0
