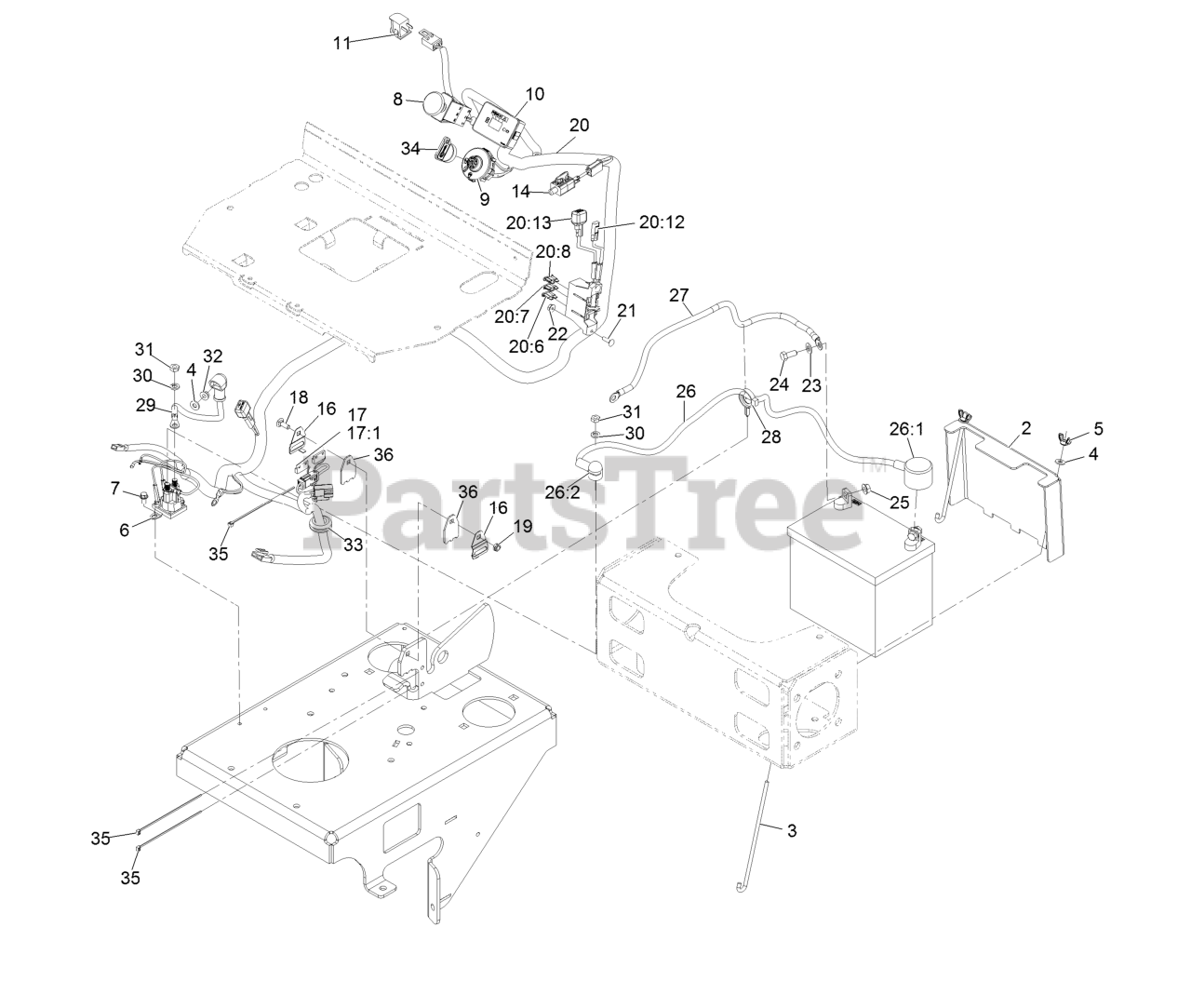

VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

Electrical Assembly Parts Diagram

  • Title

2

Exmark 116-4756-01

Cover-Battery

$38.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

Bolt-Holddown

$7.99

$

In Stock, Qty 20+

0

4

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.49

$

In Stock, Qty 20+

0

6

Exmark 117-1197

Solenoid

$45.99

$

In Stock, Qty 20+

0

7

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

8

Exmark 114-0279

Switch-PTO, On-On-(On)

$59.99

$

Usually ships in 3-6 days

0

9

Exmark 137-4101

Switch-Ignition

$31.99

$

In Stock, Qty 20+

0

10

Exmark 116-8893

Module-Hour Meter

$137.99

$

Usually ships in 3-6 days

0

11

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 20+

0

14

Exmark 119-8231

Switch-Plunger, NC, Spst

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 116-4739

Clamp-Switch

$16.99

$

In Stock, Qty 6

0

17

Exmark 116-2833

Harness-Switch, Reed

$105.99

$

In Stock, only 2 left!

0

17:1

Exmark 135-1570

Harness-Wire, Reed Switch

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 11

0

19

Exmark 3296-56

Nut-Nyloc 1/4-20 Thin

$2.49

$

In Stock, Qty 20+

0

20

Exmark 135-2487

Harness, Wire

$252.99

$

Usually ships in 3-6 days

0

20:6

Exmark 109103

Fuse-Blade, 30 Amp

$6.49

$

In Stock, Qty 12

0

20:7

Exmark 109102

Fuse-Blade, 25 Amp

$5.49

$

In Stock, only 1 left!

0

20:8

Exmark 218-578

Fuse-Blade, 10 Amp

$2.99

$

In Stock, Qty 6

0

20:12

Exmark 116-0053

Cap-Plug

$38.99

$

Usually ships in 3-6 days

0

20:13

Exmark 103-3895

Diode

$66.99

$

In Stock, only 4 left!

0

21

Exmark 3229-20

Screw-CARR

$1.99

$

Usually ships in 3-6 days

0

22

Exmark 3290-148

Nut-Whizlock #10-24

$0.99

$

In Stock, Qty 15

0

23

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

24

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

25

Exmark 109-5715

Nut-Hex Flange 5/16-18

$1.49

$

In Stock, only 3 left!

0

26

Exmark 109-7608

Cable, Battery (+)

$43.99

$

Usually ships in 3-6 days

0

26:1

Exmark 109-2407

Insulator-Battery

$5.49

$

In Stock, Qty 5

0

26:2

Exmark 1-543393

Insulator-Solenoid

$5.49

$

In Stock, only 3 left!

0

27

Exmark 54-3093

Cable-Battery, Negative

$35.99

$

Usually ships in 3-6 days

0

28

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

29

Exmark 106-8268

Cable-Battery, Red

$36.99

$

Usually ships in 3-6 days

0

30

Exmark 3253-4

Washer-Lock 5/16

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

32

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

33

Exmark 117-2781

Grommet

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 20+

0

35

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 116-4388

Plate-Spacer

$5.99

$

Usually ships in 3-6 days
