VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

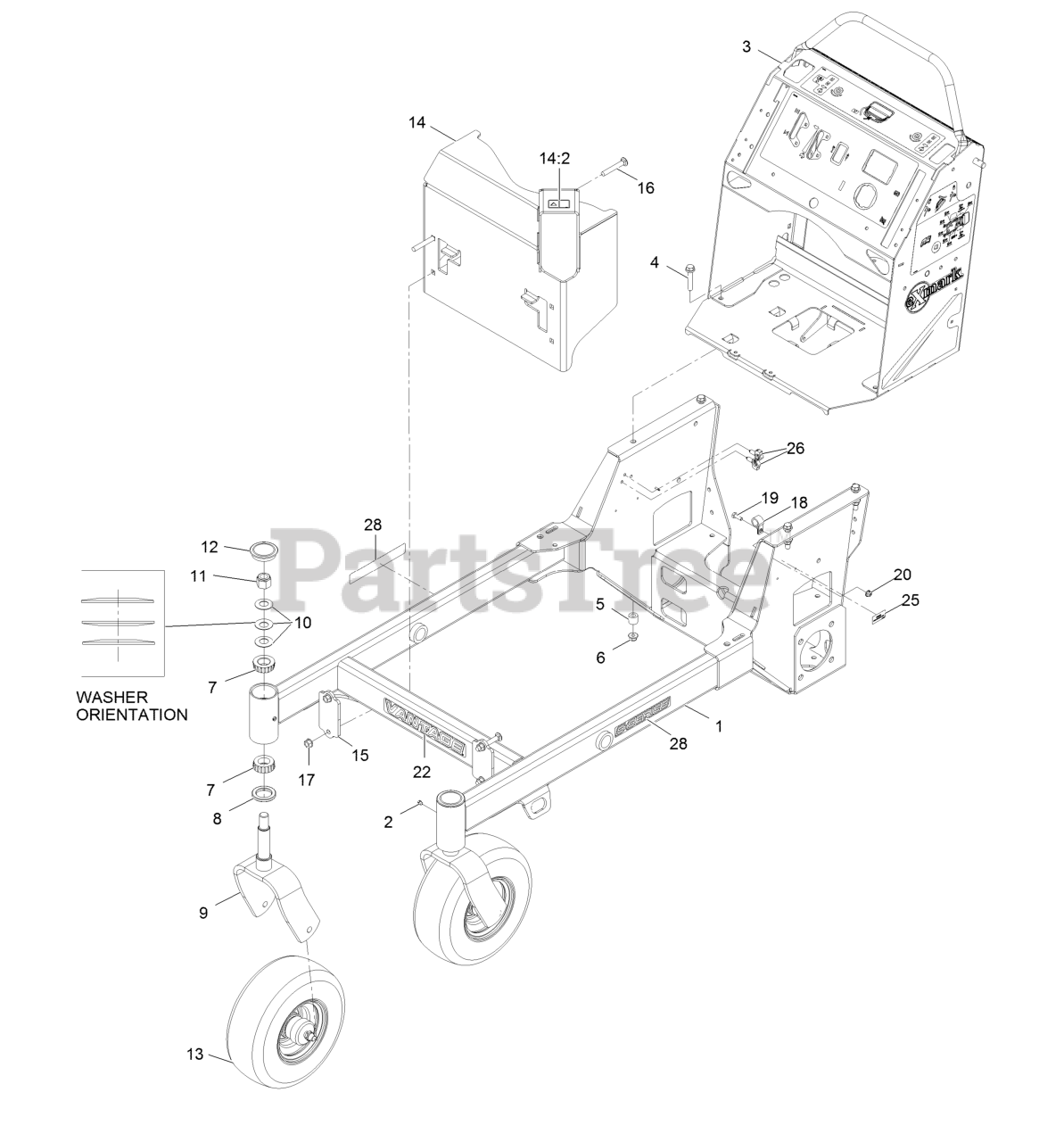

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-4650-01

Frame ASM

$1934.99

$

Usually ships in 3-6 days

0

2

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-6323

Control Tower ASM

$1117.99

$

Usually ships in 3-6 days

0

4

Exmark 108-3742

Screw-HH Flg 3/8-16 X 2

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 121-1760

Spacer

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

8

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

9

Exmark 121-7988-01

Fork-Caster

$152.99

$

In Stock, Qty 11

0

10

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

11

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 20+

0

12

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

13

Exmark 112-3810

Wheel/Tire And Bearing ASM

$210.99

$

In Stock, only 3 left!

0

14

Exmark 116-8739

Muffler Guard ASM

$236.99

$

Usually ships in 3-6 days

0

14:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

15

Exmark 119-7303-01

Bracket-Mounting, Guard

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$6.99

$

In Stock, Qty 20+

0

17

Exmark 32128-21

Nut-3/8-16 Flanged Side Lock

$0.99

$

In Stock, Qty 20+

0

18

Exmark 2412-87

Clamp-Cable

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

20

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 126-7200

Decal-Vantage Logo

$7.49

$

Usually ships in 3-6 days

0

25

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, only 3 left!

0

26

Exmark 32180-040

Clip-Harness

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 126-6572

Decal-S-Series

$2.99

$

In Stock, only 2 left!

0
