VTS541CKA36300 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 402082300 - 404314158) (2018) Park Brake Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

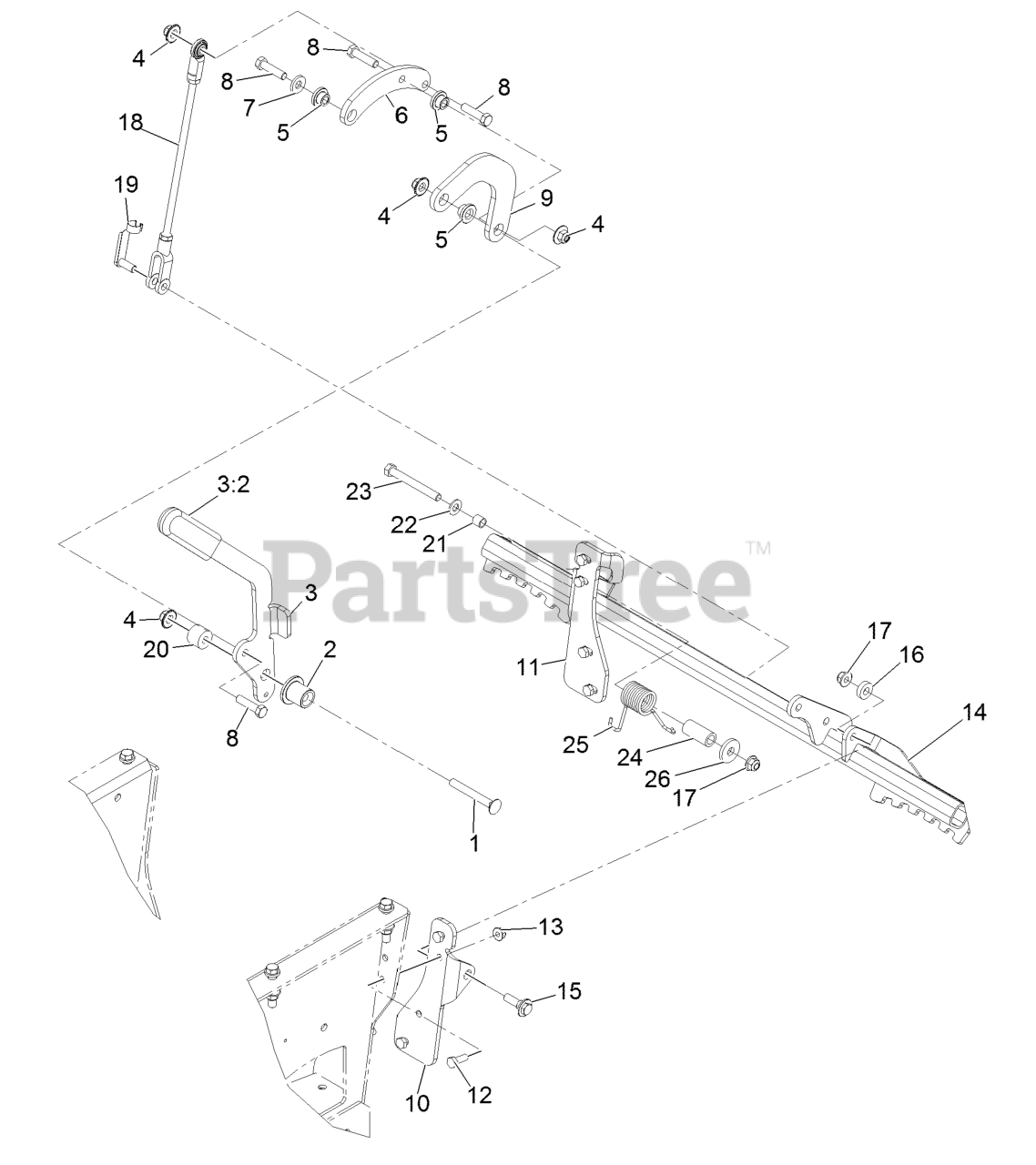

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 3231-10

Bolt-Carriage 3/8-16 X 3

$4.49

$

In Stock, Qty 5

0

2

Exmark 116-4928

Bushing-Handle

$46.99

$

Usually ships in 3-6 days

0

3

Exmark 116-4680

Handle-W/Grip ASM

$61.99

$

Usually ships in 3-6 days

0

3:2

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-4929

Bushing-Flanged

$17.99

$

Usually ships in 3-6 days

0

6

Exmark 116-4806

Arm-Brake Bellcrank

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

8

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-4805

Link-Brake Handle

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4681-01

Bracket-Brake Mount, LH

$41.99

$

Usually ships in 3-6 days

0

11

Exmark 116-4682-01

Bracket-Brake Mount, RH

$41.99

$

Usually ships in 3-6 days

0

12

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-4600-03

Bar-Brake

$164.99

$

Usually ships in 3-6 days

0

15

Exmark 614672

Screw-Shoulder 3/8-16 X 1.295

$2.99

$

In Stock, Qty 9

0

16

Exmark 5-0652

Spacer

$7.49

$

In Stock, Qty 9

0

17

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 116-4166

ASM-Brake Linkage

$90.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2399

Pin-Clevis Spring 3/8

$6.49

$

In Stock, Qty 20+

0

20

Exmark 92-5791

Spacer

$5.49

$

In Stock, Qty 20+

0

21

Exmark 117-9684

Spacer

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

23

Exmark 323-20

Screw-HH 3/8-16 X 3-1/4

$3.49

$

In Stock, only 4 left!

0

24

Exmark 117-9683

Spacer

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 108-4052

Spring-Torsion

$23.99

$

In Stock, Qty 7

0

26

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0
