VTS541KA363 - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki FS541V (SN: 313000000 - 313999999) (2013) Main Frame Assembly Parts Diagram

36" Vantage S-Series Stand-On Mower, Kawasaki FS541V

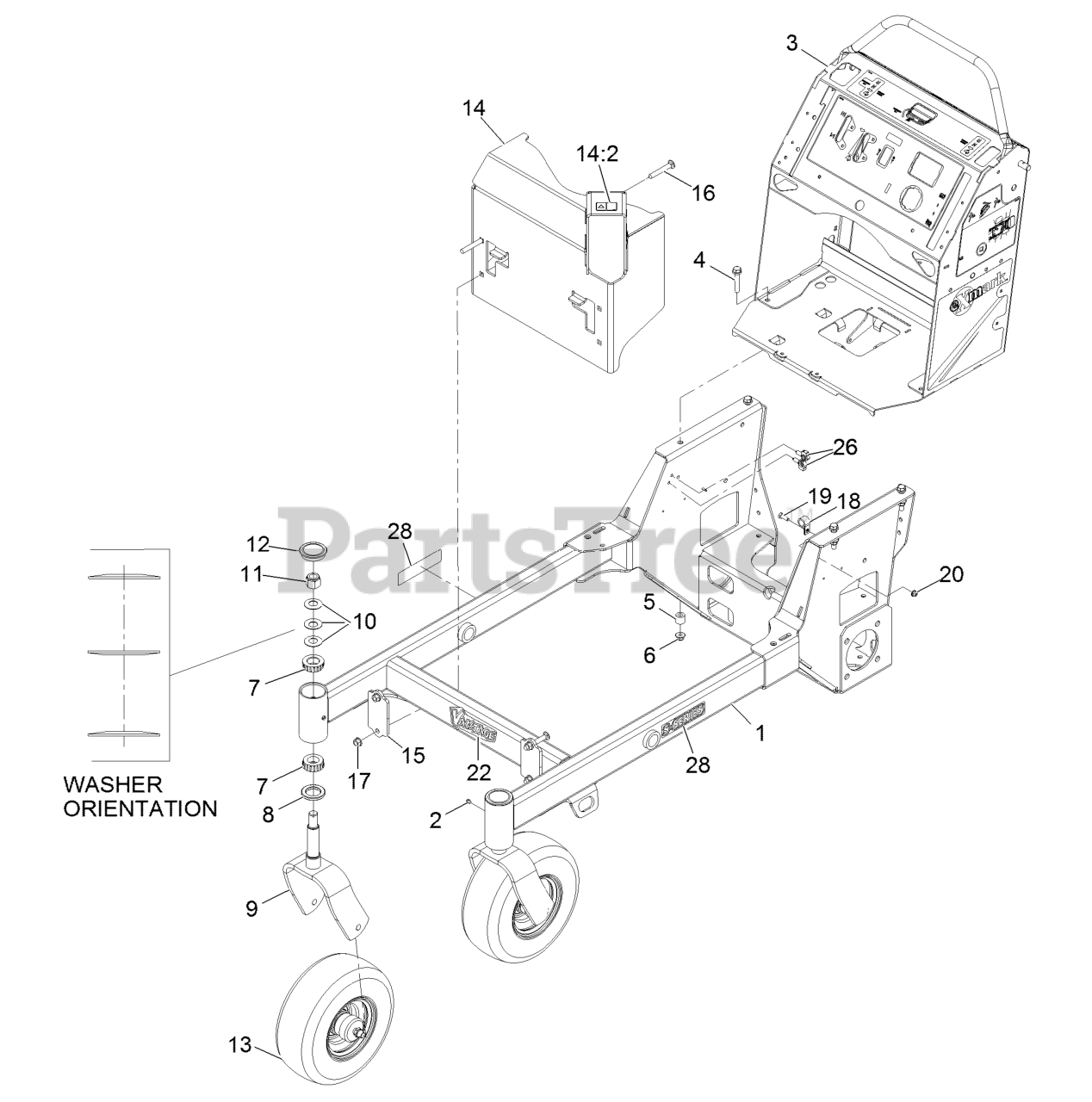

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-4650-01

FRAME ASM

$1934.99

$

Usually ships in 3-6 days

0

2

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-6323

CONTROL TOWER ASM

$1117.99

$

Usually ships in 3-6 days

0

4

Exmark 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 121-1760

SPACER

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

8

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

9

Exmark 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

10

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

11

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

12

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

13

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$210.99

$

In Stock, only 3 left!

0

14

Exmark 116-8739

MUFFLER GUARD ASM

$236.99

$

Usually ships in 3-6 days

0

14:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

15

Exmark 119-7303-01

BRACKET-MOUNTING, GUARD

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

17

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Exmark 116-4268

DECAL-VANTAGE LOGO

$18.99

$

In Stock, only 2 left!

0

26

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 116-3884

DECAL-S-SERIES

$7.49

$

In Stock, only 2 left!

0
